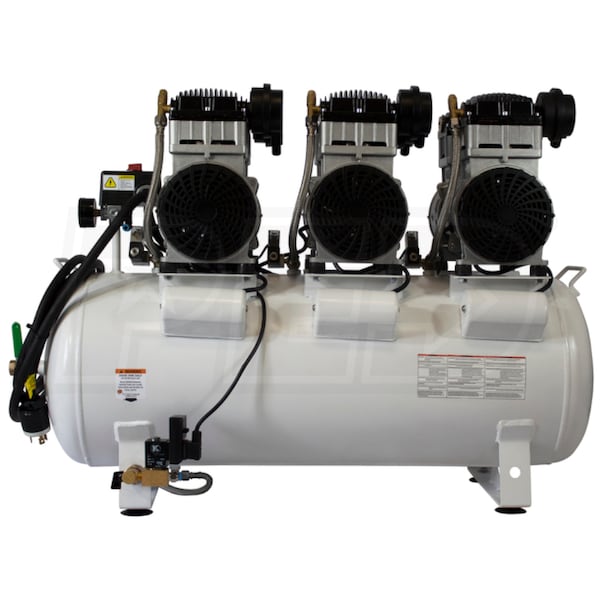

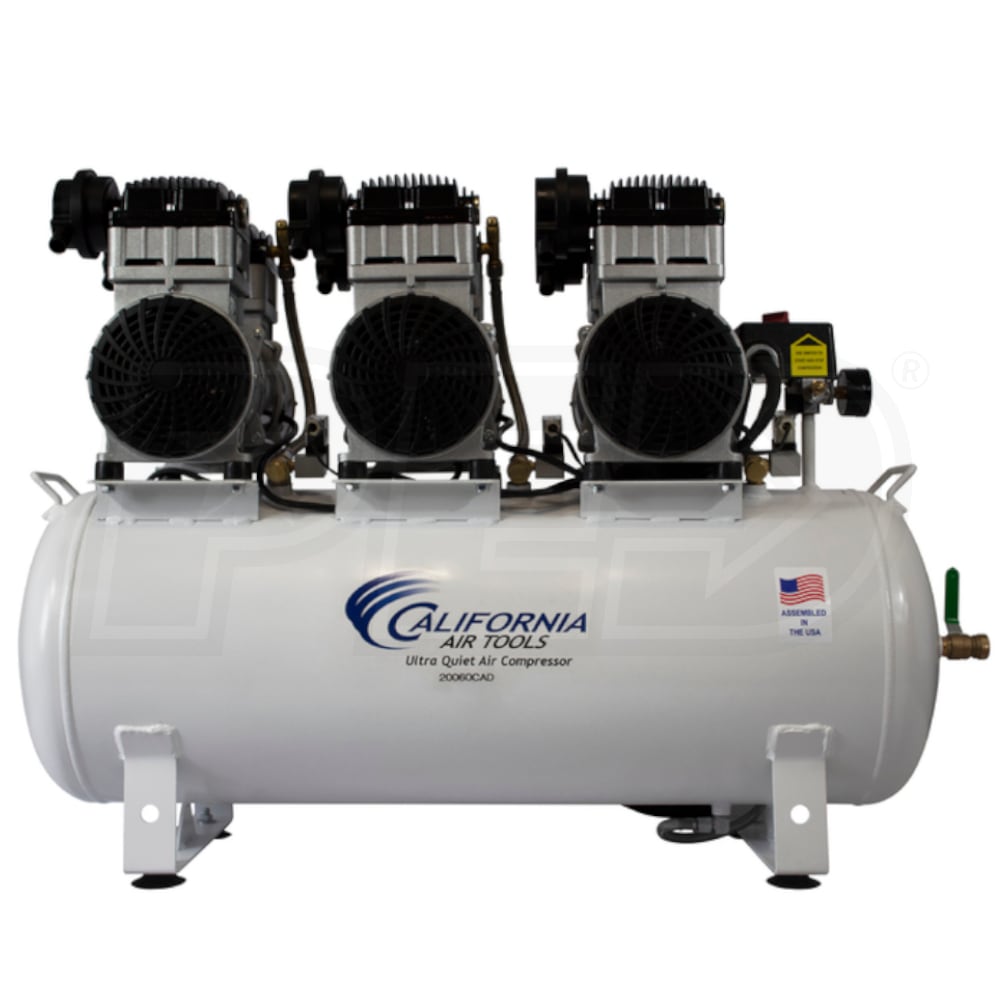

California Air Tools SP Ultra Quiet Oil-Free 6-HP 20-Gallon Triplex Air Compressor w/ Auto Drain (220V 1-Phase)

Model:

CAT-20060CAD

Write A Review
$1,992.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Friday, Mar 29th
Shipping to60601

California Air Tools SP Ultra Quiet Oil-Free 6-HP 20-Gallon Triplex Air Compressor w/ Auto Drain (220V 1-Phase)
California Air Tools SP Ultra Quiet Oil-Free 6-HP 20-Gallon Triplex Air Compressor w/ Auto Drain (220V 1-Phase)
Model: CAT-20060CAD
$1,992.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Single Stage 1-Phase

CFM

14.6

Tank Size

20



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • (3) Powerful, 2-HP SP-Series 220-Volt 1-Phase Motor
  • Low 1680 RPM creates less noise & wear
  • 78 dBA is ideal for indoor use where noise is an issue
  • Oil-Free Dual Piston Pump System
  • 19.8 CFM @ 40 PSI; 14.6 CFM @ 90 PSI; 125 PSI maximum
  • Has a 3000+ hour life cycle before wear; comparable units are 1500 hours or less
  • Works in a variety of temperatures & uneven terrains
  • 20 Gallon (Non-ASME) Steel Air Tank w/ Auto-Drain
  • Just the right size for shop or garage
  • EZ1 auto-drain selects frequency & duration of tank drainage
  • (6) Air Filters
  • Cleaner air for better tool operation
  • Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 70 Seconds
  • Recovery time from 95 PSI to 125 PSI - 20 Seconds

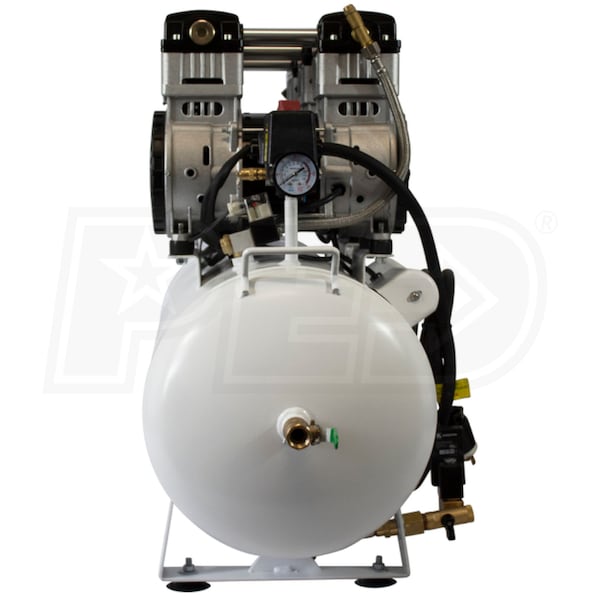

  • Top Mounted Controls & Condor Pressure Switch
  • Tank gauge so you can check pressure at a glance
  • 1/2" air outlet with quick connector for fast tool changes
  • Thermal Overload Protector

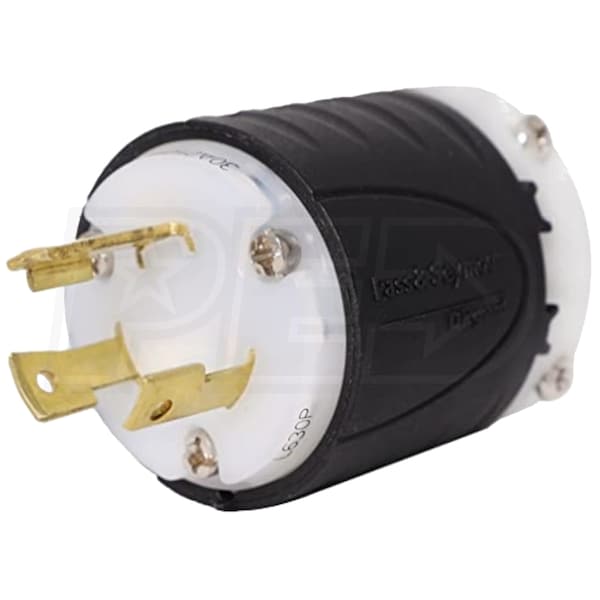

  • 24 Amp low amp draw works on NEMA 6-30P outlets
  • 1-Year Limited Warranty
  • Assembled In The USA w/ Global Components
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-20060CAD
specs product image PID-124553
General Information
Product Category
Air Compressor - Stationary
Engine
HP
6
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
24
Recommended Breaker
30 Amp Breaker
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14.6
CFM Rated @
90 PSI
CFM @ 40 PSI
19.8
CFM @ 90 PSI
14.6
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
20 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
190 Pounds
Certification
Non-ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
15 Inches
Product Height
28 Inches
Power Type
Electric
UPC
850004451830
