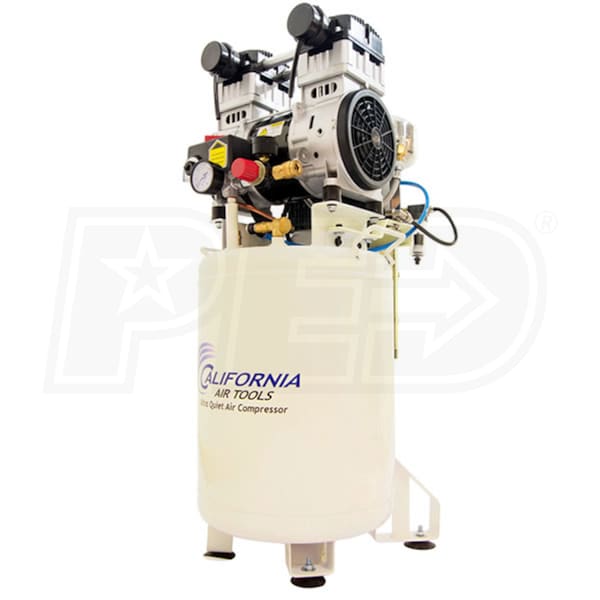

California Air Tools SP Ultra Quiet Oil-Free 2-HP 10-Gallon Air Compressor w/ Dryer & Auto-Drain (220V 1-Phase)

California Air Tools SP Ultra Quiet Oil-Free 2-HP 10-Gallon Air Compressor w/ Dryer & Auto-Drain (220V 1-Phase)
Model: CAT-10020DCAD-22060
$1,199.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$50.00
Free ShippingNo Sales Tax* (Except IL)$1,199.00Buy Now
Free FreightNo Sales Tax* (Except IL)$1,199.00Visit Site

(as of 11:37 CST - Details) Sales Tax Extra $1,199.00Visit Site
Factory-Direct
Ships in 2-5 Business Days
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Application
Commercial Grade Air Compressors
Style
Single Stage 1-Phase
CFM
5.3
CFM Rated @ 90 PSI
Tank Size
10
Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features

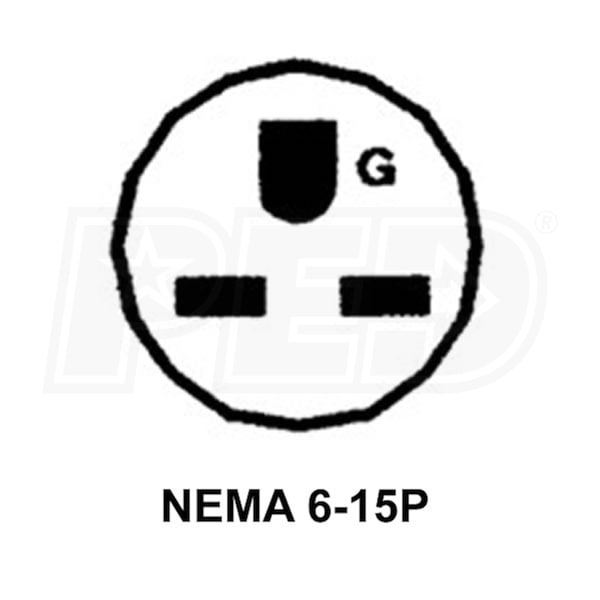

  • Powerful 2-HP SP-Series 220V Motor With NEMA 6-15p Plug
  • 70 dBA is ideal for indoor use where noise is an issue
  • Low 1400 RPM creates less noise & wear; low 7 Amp draw

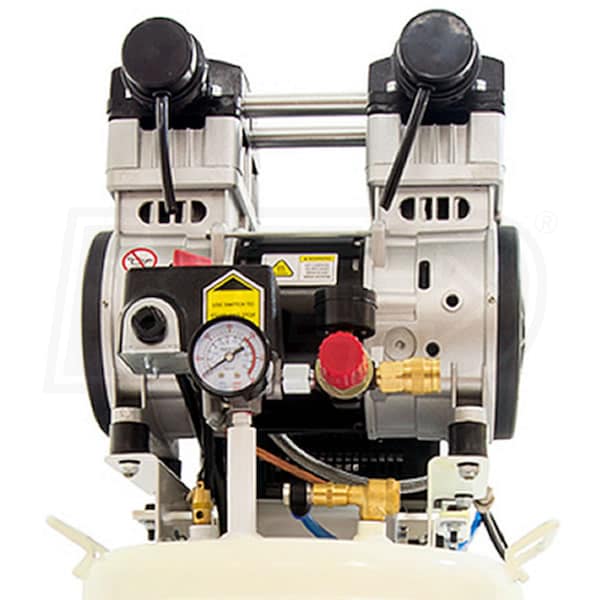

  • Top mounted controls provide easy access
  • Oil-Free Dual Piston Pump System
  • 6.4 CFM @ 40 PSI; 5.3 CFM @ 90 PSI; 125 PSI maximum
  • Minimum pump life of 3000 hours before service
  • Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 130 Seconds
  • Recovery time from 118 PSI to 125 PSI - 40 Seconds

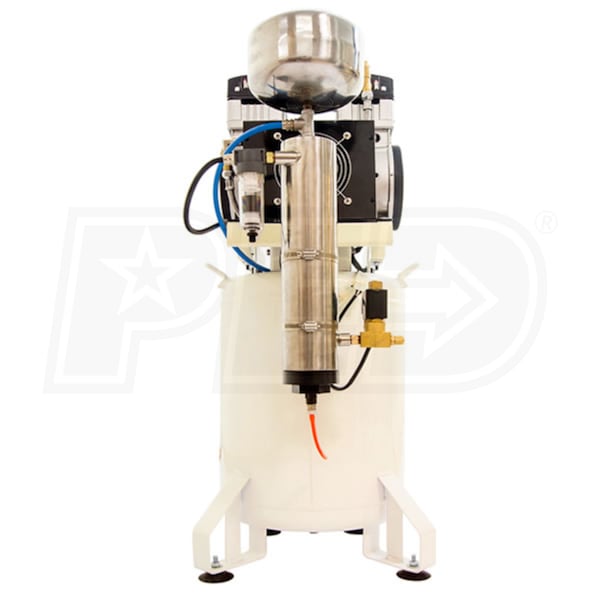

  • Air Dryer With Activated Alumina Desiccant
  • Removes water vapor from compressed air to protect tools & machinery
  • Activated Alumina has a 4000 hour service life
  • Provides high water, carbon dioxide, & sulphur compound adsorption
  • Aftercooler Condenser
  • Heat exchanger cools the discharge air, causing condensation
  • The water vapor is pushed into the air dryer for evaporation
  • 10 Gallon Steel Air Tank w/ Automatic Drain Timer
  • Kick-on pressure 95 PSI; kick-off pressure 125 PSI
  • EZ1 auto-drain selects frequency & duration of tank drainage
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
7
dBA
70
Engine
HP
2
Pump
CFM
5.3
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
125 PSI
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
91 Pounds
Product Length
16 Inches
Product Width
23 Inches
Product Height
35 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
UPC
743369710301
Application
Commercial Grade Air Compressors
Style
Single Stage 1-Phase
CFM
5.3
CFM Rated @ 90 PSI
Tank Size
10
Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Powerful 2-HP SP-Series 220V Motor With NEMA 6-15p Plug
  • 70 dBA is ideal for indoor use where noise is an issue
  • Low 1400 RPM creates less noise & wear; low 7 Amp draw
  • Top mounted controls provide easy access
  • Oil-Free Dual Piston Pump System
  • 6.4 CFM @ 40 PSI; 5.3 CFM @ 90 PSI; 125 PSI maximum
  • Minimum pump life of 3000 hours before service
  • Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 130 Seconds
  • Recovery time from 118 PSI to 125 PSI - 40 Seconds
  • Air Dryer With Activated Alumina Desiccant
  • Removes water vapor from compressed air to protect tools & machinery
  • Activated Alumina has a 4000 hour service life
  • Provides high water, carbon dioxide, & sulphur compound adsorption
  • Aftercooler Condenser
  • Heat exchanger cools the discharge air, causing condensation
  • The water vapor is pushed into the air dryer for evaporation
  • 10 Gallon Steel Air Tank w/ Automatic Drain Timer
  • Kick-on pressure 95 PSI; kick-off pressure 125 PSI
  • EZ1 auto-drain selects frequency & duration of tank drainage
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
7
dBA
70
Engine
HP
2
Pump
CFM
5.3
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
125 PSI
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
91 Pounds
Product Length
16 Inches
Product Width
23 Inches
Product Height
35 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
UPC
743369710301
