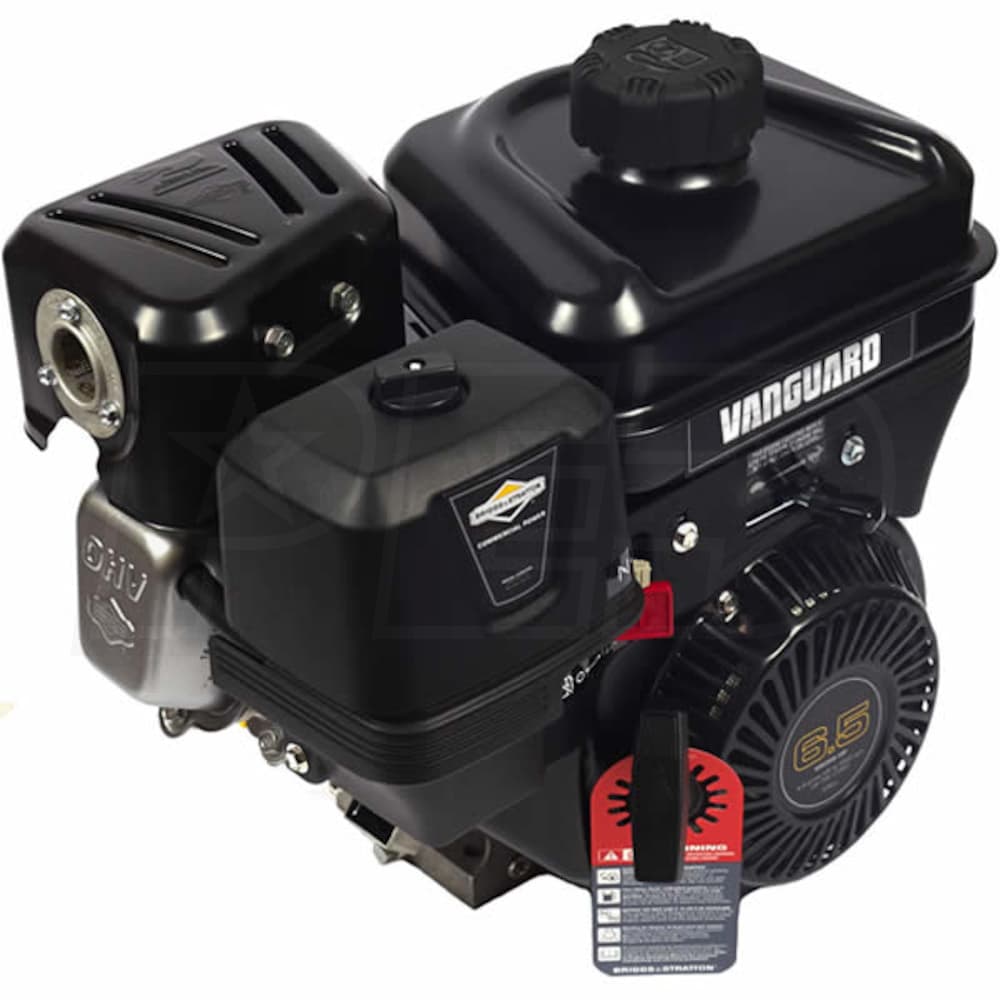

Briggs & Stratton Vanguard™ 205cc 6.5 Gross HP OHV Horizontal Engine, 3/4" x 2-7/16" Crankshaft
Model:
13L332-0036-F8
+
Share This Product
Features
- Model 13L332-0036-F8 - 3/4" x 2-7/16" Keyway Crankshaft
- Premium-Grade Vanguard™ 6.5 Gross HP* Single Cylinder Air-Cooled 4-Cycle Gas Engine
- High-performance commercial engine rated in accordance with SAE J1995
- Overhead Valve (OHV) Technology
- More power, less fuel-use & lower emmisions; Runs cooler for longer engine life
- Dura-Bore™ Cast Iron Cylinder Sleeve
- Assures long engine life and improved oil control
- Commercial-Style Float Carburetor w/ Sediment Filter
- Proven-design for consitent starting, smoother operation & easy maintenance
- Splash Lubrication System w/ Racing Designed Connecting Rod
- Provides improved oil flow for better internal component protection & low oil sensor
- High Capacity Dual-Clean™ Commercial Air Cleaner
- Industrial pleated paper w/ foam pre-cleaner for demanding applicatins
- Magnetron® Electronic Ignition
- Maintenance-free design, plus larger ignition coil for easy dependable starting
- TransportGuard™ System - Simultaneous Fuel/Ignition Shut-Off
- Protects the engine from oil/fuel dilution during transport
- Acoustically Designed Muffler System
- Less noise keeps you working longer on the jobsite or in the yard
- 3-Year Commercial Warranty
- Model 13L332-0036-F8 Superseded To Model 12V332-0013-F1
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
13L332-0036-F8

Engine
Engine Series
B&S Vanguard
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
50 Lbs
CC
205 CCs
HP
6.5 HP
Cylinder Bore Type
Cast Iron
Bore
2.68 Inches
Compression Ratio
8.3:1
Stroke
2.20 Inches
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
0.85 Gallons
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2-27/64 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2-27/64"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4.17 Inches
Overview
Weight
50 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
024847111750
