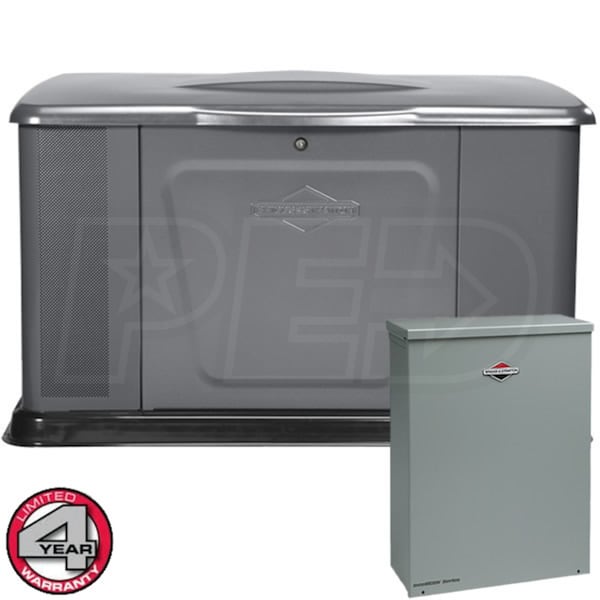

Briggs & Stratton 20kW Standby Generator System (200A Service Disconnect + AC Shedding) (Scratch & Dent)

Briggs & Stratton 20kW Standby Generator System (200A Service Disconnect + AC Shedding) (Scratch & Dent)
Our Price
Compare Prices
Shipping Info
Model: 40346-SD
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
20,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
20,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
Features
Features
  • ***Scratch & Dent*** - Cosmetic Damage
  • Scratches on generator enclosure & transfer switch
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • 20kW (LP) /18.4kW (NG) Automatic Start Power Generator
  • Runs off LP or Natural Gas - no gas cans to fill and store
  • 993cc Briggs & Stratton V-Twin Commercial Grade Vanguard Engine
  • Provides years of long lasting, reliable standby power
  • ACCM-II Power Control Module Transfer Switch (2 x 5-Ton AC)
  • Computer controlled load management power switching
  • Expand your generators range by prioritizing powered circuits
  • Galvanneal Steel Enclosure w/ Front Air Ventilation
  • Automotive rust proofing paint process reduces corrosion
  • Pushes engine exhaust out the front, away from the home
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18 from structure
  • 200-Amp Service Entrance Rated Automatic Transfer Switch (71046)
  • Offers ability to power all circuits without a sub-panel
  • Rated at 200-Amps @ 240-Volts (NEMA 3R)
  • 4-Year Limited Parts & Labor Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
187 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68.4 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (540 CCA)
Enclosure
Steel
A/C Ton Rating
2.5-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
CC
993 CC
Consumer Engine Warranty
4 Years
Engine RPM
3000 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
484 Pounds
Made in USA
Yes
Consumer Warranty
4 Years
Product Style
Standby Generator
Product Length
50.5 Inches
Product Width
34 Inches
Product Height
31 Inches
Grade
Style
Run Watts
20,000
Rated Watts
Voltage
120/240 Single-Phase
Fuel
Engine
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
20,000
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
Features
Features
  • ***Scratch & Dent*** - Cosmetic Damage
  • Scratches on generator enclosure & transfer switch
  • Fully Automatic Operation - Includes Automatic Transfer Switch
  • 20kW (LP) /18.4kW (NG) Automatic Start Power Generator
  • Runs off LP or Natural Gas - no gas cans to fill and store
  • 993cc Briggs & Stratton V-Twin Commercial Grade Vanguard Engine
  • Provides years of long lasting, reliable standby power
  • ACCM-II Power Control Module Transfer Switch (2 x 5-Ton AC)
  • Computer controlled load management power switching
  • Expand your generators range by prioritizing powered circuits
  • Galvanneal Steel Enclosure w/ Front Air Ventilation
  • Automotive rust proofing paint process reduces corrosion
  • Pushes engine exhaust out the front, away from the home
  • Flexible Placement (Please Verify Local Building Codes)
  • Tested against tough National Fire Protection Agency standards
  • Can be placed as close as 18 from structure
  • 200-Amp Service Entrance Rated Automatic Transfer Switch (71046)
  • Offers ability to power all circuits without a sub-panel
  • Rated at 200-Amps @ 240-Volts (NEMA 3R)
  • 4-Year Limited Parts & Labor Warranty
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
187 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68.4 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (540 CCA)
Enclosure
Steel
A/C Ton Rating
2.5-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
CC
993 CC
Consumer Engine Warranty
4 Years
Engine RPM
3000 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
484 Pounds
Made in USA
Yes
Consumer Warranty
4 Years
Product Style
Standby Generator
Product Length
50.5 Inches
Product Width
34 Inches
Product Height
31 Inches
Product Specs
+
Specifications
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
20000 Watts
Surge Watts
20000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
18000 Watts
LP Power Capacity
20000 Watts
NG Fuel Consumption @ 50% Load
187 ft³/hr
LP Fuel Consumption @ 50% Load
2.3 gallons/hr
Rated Amps
83 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68.4 dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (540 CCA)
Enclosure
Steel
A/C Ton Rating
2.5-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
CC
993 CC
Consumer Engine Warranty
4 Years
Engine RPM
3000 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
484 Pounds
Made in USA
Yes
Consumer Warranty
4 Years
Product Style
Standby Generator
Product Length
50.5 Inches
Product Width
34 Inches
Product Height
31 Inches
