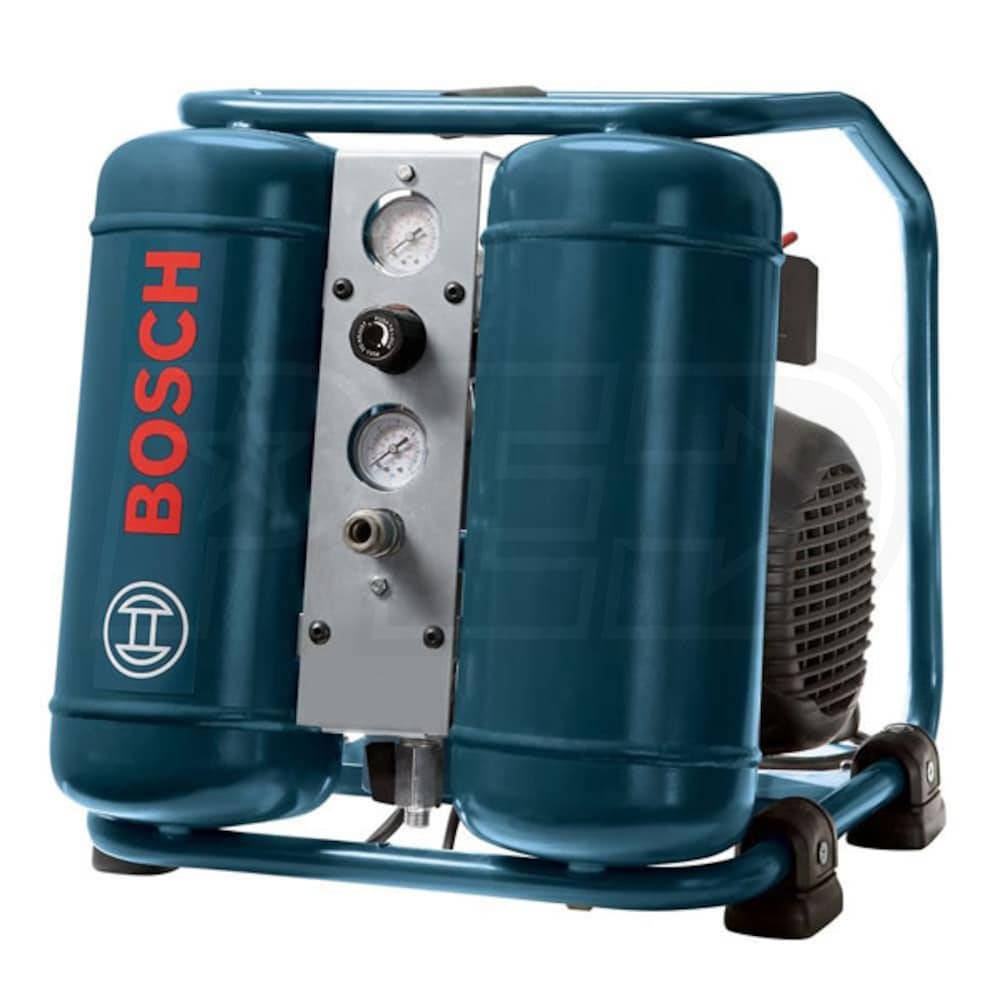

Bosch 1-HP 3-Gallon Contractor Vertical Twin Stack Air Compressor

Bosch 1-HP 3-Gallon Contractor Vertical Twin Stack Air Compressor



Product Discontinued Product Discontinued
  • Product Description
  • Reviews
  • Product Q&A
  • How-To Articles
Product Description
+
Application
Contractor Grade Air Compressors
Style
Twin Stack
CFM
2
CFM Rated @ 90 PSI
Tank Size
3
Gallons
Features
Features
  • Built To Withstand Tough Jobsite Conditions
  • great for carpentry, framing, roofing, and remodeling
  • 3 Gallon Twin Vertically Angled Tanks
  • Easy to drain & maintain
  • Better center of gravity for easy transport through job sites
  • Oil Lubed Pump
  • Extends product life for extra durability
  • 4-Pole Induction Motor
  • Lower 72 dBA noise so you can work in close proximity
  • Recessed Control Panel
  • Easy to access & protected from job-site conditions
  • Dual Gauges
  • Monitor tank and tool pressures at a glance
  • Quick Connect Air Outlet
  • Easily change out tools
  • Roll Cage Design
  • Protects the tanks & controls; easy to pick up and secure
  • Large rubber feet stabilize the unit & quiet vibration
Specifications
Motor
Voltage
120 Volt AC
Phase
1-Phase
Amp Draw
12
Engine
HP
1
Pump
CFM
2
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
125 PSI
Oil Sight Glass
No
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
3 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
CSA
Weight
73 Pounds
Product Length
18.5 Inches
Product Width
18.5 Inches
Product Height
19.75 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
UPC
000346391619
Application
Contractor Grade Air Compressors
Style
Twin Stack
CFM
2
CFM Rated @ 90 PSI
Tank Size
3
Gallons
Features
Features
  • Built To Withstand Tough Jobsite Conditions
  • great for carpentry, framing, roofing, and remodeling
  • 3 Gallon Twin Vertically Angled Tanks
  • Easy to drain & maintain
  • Better center of gravity for easy transport through job sites
  • Oil Lubed Pump
  • Extends product life for extra durability
  • 4-Pole Induction Motor
  • Lower 72 dBA noise so you can work in close proximity
  • Recessed Control Panel
  • Easy to access & protected from job-site conditions
  • Dual Gauges
  • Monitor tank and tool pressures at a glance
  • Quick Connect Air Outlet
  • Easily change out tools
  • Roll Cage Design
  • Protects the tanks & controls; easy to pick up and secure
  • Large rubber feet stabilize the unit & quiet vibration
Specifications
Motor
Voltage
120 Volt AC
Phase
1-Phase
Amp Draw
12
Engine
HP
1
Pump
CFM
2
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
125 PSI
Oil Sight Glass
No
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
3 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
CSA
Weight
73 Pounds
Product Length
18.5 Inches
Product Width
18.5 Inches
Product Height
19.75 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
UPC
000346391619
Product Specs
+
Specifications
Motor
Voltage
120 Volt AC
Phase
1-Phase
Amp Draw
12
Engine
HP
1
Pump
CFM
2
CFM Rated @
90 PSI
Pump Material
Aluminum
Pump Type
Single-Stage
Max PSI
125 PSI
Oil Sight Glass
No
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
3 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
CSA
Weight
73 Pounds
Product Length
18.5 Inches
Product Width
18.5 Inches
Product Height
19.75 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
UPC
000346391619
