Bercomac (30") Universal-Fit Tow-Behind Forward Rotating Tiller

Model:

700312-5

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Bercomac (30
Bercomac (30") Universal-Fit Tow-Behind Forward Rotating Tiller
Model: 700312-5
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

Bercomac (30") Universal-Fit Tow-Behind Forward Rotating Tiller


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Get More Out Of Your Tractor
  • Tills through any type of soil, just drop it down and drive
  • Fits Various Tractors
  • Universal mounts allows it to fit most tractors
  • Requires 14-28HP with vertical engine and 20" tires
  • Will also fit Cub Cadet GT & GTX 2000 & 2500 w/ horizontal engine
  • Will NOT fit Husqvarna tractors w/ ground engaging transmissions

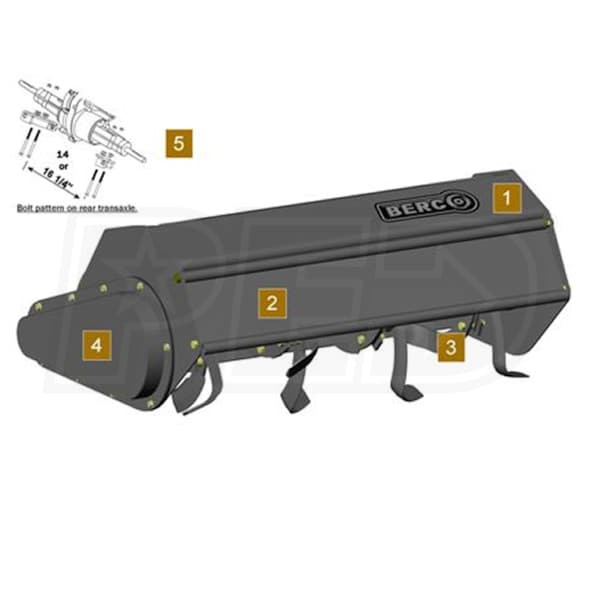

  • Transaxle bolt pattern must be 16.25" or 14" center to center
  • Heavy Duty Design & Construction
  • Covered precision ball bearing for protection from dirt & debris
  • Double layered 14 gauge steel protects from denting
  • Baked on powder coating for long rust free life
  • Easy Operation
  • Tiller engages using same controls as deck engagement
  • Manual lift lever on right side of drive lifts and lowers tines
  • Lift also allows for depth adjustment in tines
  • Easy Installation & Assembly
  • Pre-assembled at the factory to facilitate installation
  • Installation consists two brackets under the transaxle and
  • one shoulder bolts on the tractor's frame

Specifications

700312-5
specs product image PID-12888
Overview
Weight
310 Pounds
Consumer Warranty
1 Year
Commercial Warranty
90 Days
UPC
628053703121

Reviews

(14)
Bercomac 700312-5 Reviews & Ratings
Customer Photos and Videos
review video 1
review image 2
Customer Rating
4.93
(13 Ratings)
5
(12)
4
(1)
3
(0)
2
(0)
1
(0)
Verified Buyer
Verified Buyer
Well Built, Delivered On Time
By Michael S
DeweyHumboldt, Arizona
Purchased 04/26/2017 |
Review Posted 05/17/2017
Works good
Michael S Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Reliable
Verified Buyer
Verified Buyer
Berco Tiller is Awesome
By Paul C.
Kountze, Texas
Purchased 02/09/2017 |
Review Posted 03/20/2017
Great product. It works better than I ever expected. It took me a long time to make the decision to buy because there was a lack of good information about this product. I took the plunge and am extremely happy with the quality of this tiller. Instructions are not hard if you read ALL the material provided. The instruction addendum listed my mower specifically and told me what brackets to use and the number of shims and washers to make it work correctly.

This tiller made my old garden plot look fabulous.. It left the soil in a fine powder about six inches deep. I walked across the soil and my shoes were buried under the fluffy stuff. I am well pleased. I plan to post a video on YOUTUBE when I get time. Highly recommend to those tired of struggling with a walk behind tiller.
Paul C. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
High Quality, I'd Buy It Again, Exceeded Expectations
Verified Buyer
Verified Buyer
Excellent product
By Edward M.
Austin, Minnesota
Purchased 10/31/2015 |
Review Posted 06/12/2016
I own a Sears 26.0 HP V-Twin Kohler engine GT6000 garden tractor Model #: 917.28861 with the PTO on the bottom of the tractor. I installed the Bercomac 30 inch tiller using the 'A' brackets and short sleeves. I had to purchase a different drive belt other than the ones supplied. The drive belt from the PTO pulley to the tiller pulley was industry number: Gates belt 4L620K (1/2 inch X 62 inch or 12.5/13 mm X 1575 mm) is the belt utilized.

It fit on the tractor like a glove and the tiller works great! I run a tilling business in Austin, Minnesota and tilled many garden plots with your Bercomac tiller product this spring all from the seat of my Sears garden tractor. In fact, the tiller attachment paid for itself a couple of times over!

I am pleased beyond expectation and my customers were thrilled! It left their garden soil ground up, smooth and pulverized with the torque/RPM's supplied to the tiller tines by the power of the Kohler 26.0 HP V-Twin Sears Garden tractor engine. I couldn't be happier or more satisfied with this tractor attachment. It has, by far, exceeded my expectations.
Edward M. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Works too well - I need more garden!
By Randy K.
Earlville, Illinois
Purchased 05/13/2016 |
Review Posted 06/07/2016
review 4 image 1
My Bercomac arrived in three days (plus the weekend) and the delivery man put it right where we asked. The unit was to be mounted on a Craftsman DGS6500(917.28745). Installation was 4 hours start to finish including unpacking crate. I'd read other reviews about the instructions not being clear. I did not find that to be true. In fact, the only problem I had was second guessing the instructions and installing, then uninstalling, reinstalling, uninstalling and re-installing as originally stated in the instructions, the mounting brackets on the transaxle. Probably wasted 30-45 minutes doing that.

I needed to use the spacers between the body and the hitch plate to have clearance for the idler pulley. Again, had I just used all four supplied rather than trying to get by with three, I could have saved a good half hour. Also, I didn't realize that there was a built-in stand for supporting the under tractor frame - which is very nice! I am a drafter/engineer, but I am not a mechanic.

I don't work with wrenches much. And this project showed me why. That, plus I am 62, out-of-shape, and was working on my knees on gravel, which may be why it took four hours. I needed the longest drive belt that was supplied I think, but it fit perfectly. Other than my own mistakes, the installation was easy and the instructions were clear.

The tiller runs very quietly and smoothly. It is well built. For my heavy black Illinois soil, it took 2 passes in pre-tilled (a year earlier) garden. Three passes in sod (only did a small extension area). After four hours of installation, I was a bit disappointed that I only had about an hour and half of use before being done for the spring. The Troy-Bilt would have taken more like four hours and many passes.

I have yet to un-mount and re-mount the unit, but I don't think that it will be too difficult after doing it once.

I did drill an extra hole in the height adjustment hole sequence to allow the tiller to be raised higher for transport or between tills. An easy fix that works great.

All-in-all, I am very pleased with the Bercomac. Well built. Well designed. Smooth. Quiet.
I knocked a star off for cost, only because I am cheap. Had I bought this unit when I bought the tractor (and snowblower attachment) eight years ago, I would have been very, very pleased.
Randy K. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
High Quality, Easy To Use, Quiet, Fast
Cons:
Expensive, Didn't Raise High Enough For Non-tilling
Verified Buyer
Verified Buyer
Well Worth the Effort to Install
By Kyle S.
Clinton Township, Michigan
Purchased 05/11/2016 |
Review Posted 06/01/2016
Need a tiller for my father-in-law and my deer food plots. We have three acres so I didn't think it would be manageable with a walk behind tiller.

After doing research on this tiller I bought it. Shipping was fast and easy. Installation had a few tricky spots but overall was not that hard (thanks to my father-in-law).

So how does it work? Like a dream! Cut through virgin soil, grass and other weeds. Found some rocks that stopped the belt but every easy to clear.

Overall I think it is a well made, super useful and great product.
Kyle S. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
AWESOME TILLER!
By Dale G.
indianola, Iowa
Review Posted 05/06/2016
Installed on a John Deere GT235. Instructions not that hard to follow as some have stated. I used on unbroken ground and this tiller chews right through. Very heavy duty and well built. Hoping it will last a long time as it is a little pricey. Well worth it to me as it is effortless tilling while sitting on a tractor as opposed to fighting with a walk behind tiller, and one less motor to maintain.
Dale G. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, High Quality, Reliable, I'd Buy It Again
Verified Buyer
Verified Buyer
Bercomac Tiller
By James B.
Princeton, Kentucky
Purchased 10/06/2015 |
Review Posted 03/10/2016
I hooked the tiller to a Craftman GT5000 garden tractor mower. All the mowers I looked at that should fit the brackets had tires and motor that was too small by the requirements listed. They said the Craftman GT5000 would not work with the tiller. I redrilled the holes and made it work.

To load it on my trailer ,I had to drill another hole to raise the tines up higher. The tiller worked good. Used it last fall, then twitted it and used it this spring. I would highly recommend it.
James B. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
It's working
By Glen R.
Aztec, New Mexico
Purchased 07/14/2015 |
Review Posted 11/10/2015
Got the tiller hooked up to my tractor after some engineering. Works great after the learning process.
you need to get a redneck to help you write the instructions.
Glen R. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
LATER
By Glen R.
AZTEC, New Mexico
Purchased 07/14/2015 |
Review Posted 08/17/2015
I wont install the tiller until after the frost takes the garden out.
the tiller looks great i bet it works as good as it looks. We will see.
Glen R. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Works Great
By John D.
Shiocton, Wisconsin
Purchased 05/02/2015 |
Review Posted 05/24/2015
I got this tiller about a month ago. It was delivered to my house in 3 days. Great delivery time! Attaching it to my garden tractor was very simple, I just assembled 2 mounting brackets to my tractor with 4 bolts and 12 shim washers and slid the assembled unit under my garden tractor into the mounting brackets and installed the hitch pin and the tiller was attached.

It took a little bit to figure out the right mounts and shim combination for my tractor, but it only took me about and hour and a half to mount it to my tractor. Most of the time was spent reading the manual and figuring it out. Once it was attached to my tractor I connected the shortest v-belt that came with the unit, but it was about a inch too long, luckly I had a v-belt in my garage that worked. I tilled my garden the next day and I expanded it just a bit. This tiller works great even when tilling up sod. Best purchase i've made in a long time. Wish I would have bought it sooner.
John D. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Exceeded Expectations, High Quality, I'd Buy It Again
