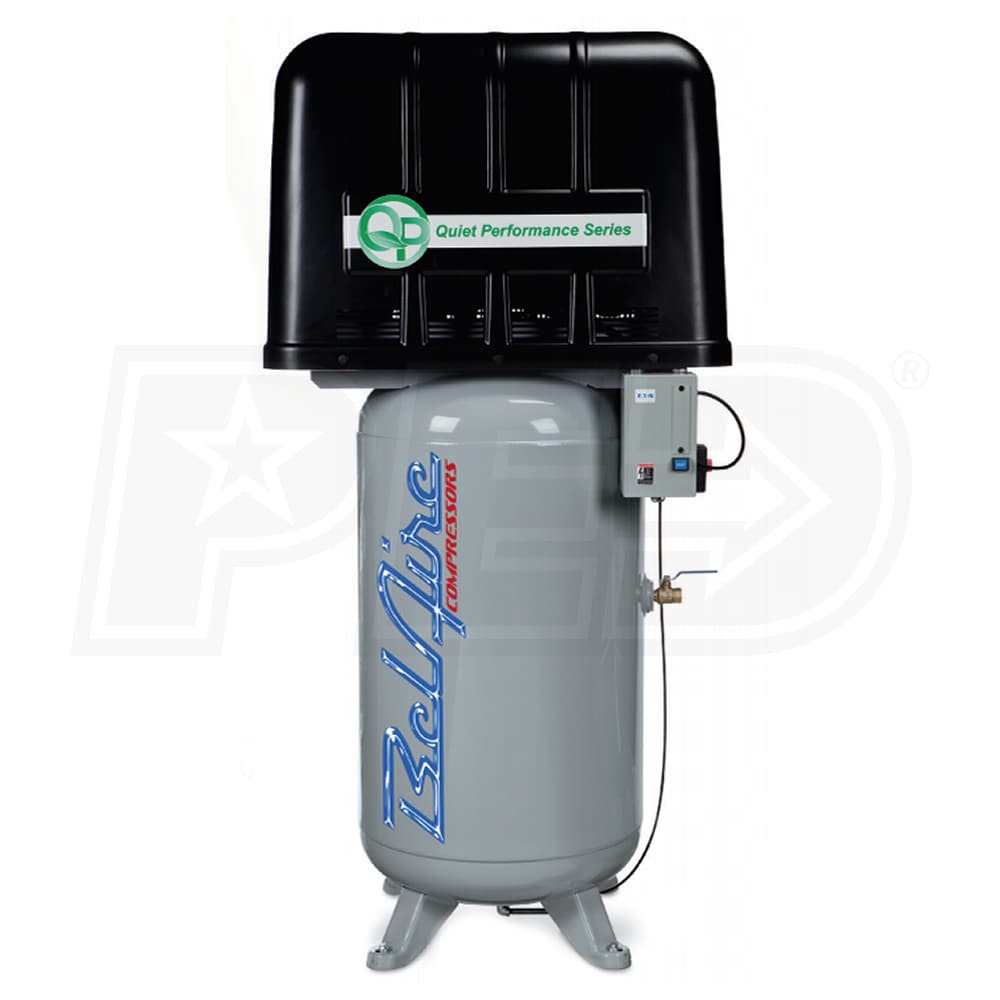

BelAire 7.5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 1-Phase)

Name: BelAire 7.5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 1-Phase)
Brand: BelAire
SKU: 4800
Price: 5050.00 USD
Availability: InStock
Rating: 4.00 (2 reviews)

Model:

QP318VLE

Write A Review

$5,050.00

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.

Factory-Direct

Ships in 4-6 Weeks

BelAire 7.5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 1-Phase)

Model: QP318VLE

$5,050.00

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Joshua, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

25.3

Tank Size

80

Quiet Compressor Air System
A piston air compressor with the noise level of a rotary screw
Compact Design
Ideal for work environments where space is a premium
7.5-HP Single-Phase Motor (208-230V) w/ Magnetic Starter Included
Saves $$$, No need to purchase additional starter
Low Sound Enclosure
As low as 69 dbA, designed for a greener workplace
Less than half the noise of a standard piston compressor
High Strength ABS Enclosure & High Flow Fan
Keeps the compressor running cooler and quieter
Cast Iron Cylinder
Designed for superior quality & extends the life of the pump
80-Gallon ASME Certified Vertical Air Tank
100% factory tested at full pressure
Added Features
Low Oil Level Protection & High Temperature Shut Dow
Automatic Pressurized Tank Drain (Not Electronic)
ASME Safety Valves & Integrated Aftercooler
Shipped "Wet", Ready To Use

California residents see

Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.

For more information go to: www.p65Warnings.ca.gov

Specifications

QP318VLE

General Information

Product Category

Air Compressor - Stationary

Motor

Voltage

208-230 Volt AC

Phase

1-Phase

dBA

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.

Magnetic Starter

The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.

Yes

Amp Draw

Consult Certified Electrician

Recommended Breaker

Consult Certified Electrician

Engine

7.5

Pump

CFM

Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications

25.3

CFM Rated @

100 PSI

Pump Material

Solid Cast Iron

Max PSI

PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver

175 PSI

Oil Sight Glass

Yes

Pump Type

Two-Stage

After Cooler

An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor

Yes

Pump Drive

Belt Drive

Oil Type

Oil Lubricated

Oil System

Splash Lubricated

Pump Low Oil Shut-off

Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor

Yes

Tank

Tank Size
