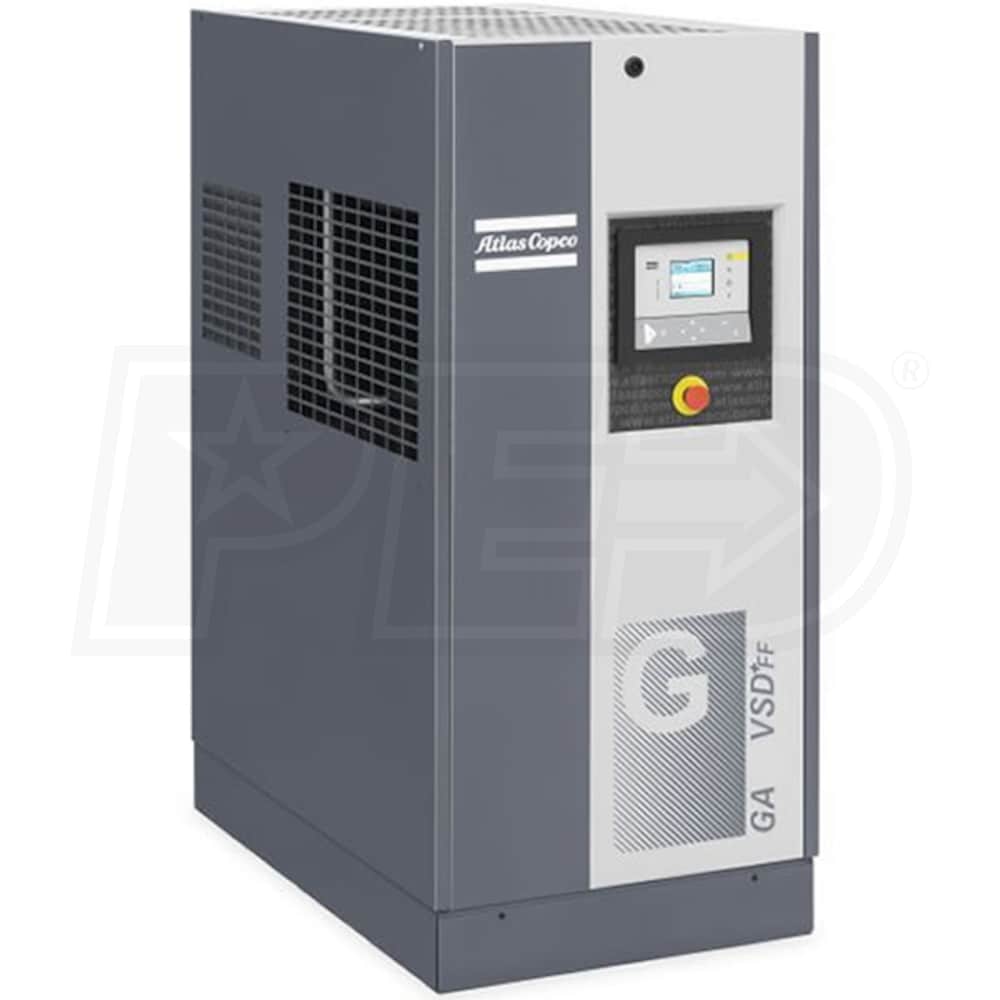

Atlas Copco GA11 VSD+ 15-HP Variable Speed Rotary Screw Air Compressor w/ Dryer (230V 3-Phase)

Atlas Copco GA11 VSD+ 15-HP Variable Speed Rotary Screw Air Compressor w/ Dryer (230V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: GA11VSD-175-FF-230-3-60
$14,102.00
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Add-Ons
+$75.00
Free Shipping$14,102.00Buy Now
Free Freight$14,102.00Visit Site
Factory-Direct
Ships in 4-7 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
68.8
CFM Rated @ 102 PSI
Grade
Commercial
CFM
68.8 CFM Rated @ 102 PSI


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Innovative Vertical Design
  • iPM Permanent Magnet technology delivers variable speed savings
  • Up to 96.8% motor efficiency- 50% more efficient than other models
  • Delivers 15.5-69.7 CFM @ 80 PSI; up to 49.8 CFM @ 181 PSI
  • Direct Drive Between Element & Motor
  • No gears or belts to adjust reduces downtime (see Warranty for details)
  • Consistent air delivery from very low to very high demand
  • Innovative Top-Mounted Fan
  • Vents heat from the enclosure; allows space-saving placement against a wall
  • Workspace can be located close to the extremely quiet, 62dBA unit
  • Elektronikon Graphic Display Controller
  • Smart algorithms reduce system pressure & energy consumption
  • Manually or automatically create 2 different usage programs to reduce costs
  • Displays for online status, warnings, program, & maintenance schedule
  • Redesigned VSD+ Cubicle With Integrated Saver Cycle Dryer
  • Senses ambient temperature & air output humidity; saves energy
  • 50% smaller footprint enables optimal compressor placement
  • Averages 50% Energy Savings
  • No wasted idling time; eliminates peak current penalty during startup
  • No-Cost Start-Up For This Unit Is Provided By Atlas
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
dBA
63
Engine
HP
15
Pump
CFM
68.8
CFM Rated @
102 PSI
Pump Type
Rotary
Max PSI
175 PSI
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Tank
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Accessories
Air Dryer
Yes
Overview
Weight
791 Pounds
Product Length
25 Inches
Product Width
39 Inches
Product Height
56 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
68.8
CFM Rated @ 102 PSI
Grade
Commercial
CFM
68.8 CFM Rated @ 102 PSI


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Innovative Vertical Design
  • iPM Permanent Magnet technology delivers variable speed savings
  • Up to 96.8% motor efficiency- 50% more efficient than other models
  • Delivers 15.5-69.7 CFM @ 80 PSI; up to 49.8 CFM @ 181 PSI
  • Direct Drive Between Element & Motor
  • No gears or belts to adjust reduces downtime (see Warranty for details)
  • Consistent air delivery from very low to very high demand
  • Innovative Top-Mounted Fan
  • Vents heat from the enclosure; allows space-saving placement against a wall
  • Workspace can be located close to the extremely quiet, 62dBA unit
  • Elektronikon Graphic Display Controller
  • Smart algorithms reduce system pressure & energy consumption
  • Manually or automatically create 2 different usage programs to reduce costs
  • Displays for online status, warnings, program, & maintenance schedule
  • Redesigned VSD+ Cubicle With Integrated Saver Cycle Dryer
  • Senses ambient temperature & air output humidity; saves energy
  • 50% smaller footprint enables optimal compressor placement
  • Averages 50% Energy Savings
  • No wasted idling time; eliminates peak current penalty during startup
  • No-Cost Start-Up For This Unit Is Provided By Atlas
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
dBA
63
Engine
HP
15
Pump
CFM
68.8
CFM Rated @
102 PSI
Pump Type
Rotary
Max PSI
175 PSI
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Tank
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Accessories
Air Dryer
Yes
Overview
Weight
791 Pounds
Product Length
25 Inches
Product Width
39 Inches
Product Height
56 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
dBA
63
Engine
HP
15
Pump
CFM
68.8
CFM Rated @
102 PSI
Pump Type
Rotary
Max PSI
175 PSI
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Tank
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Accessories
Air Dryer
Yes
Overview
Weight
791 Pounds
Product Length
25 Inches
Product Width
39 Inches
Product Height
56 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
