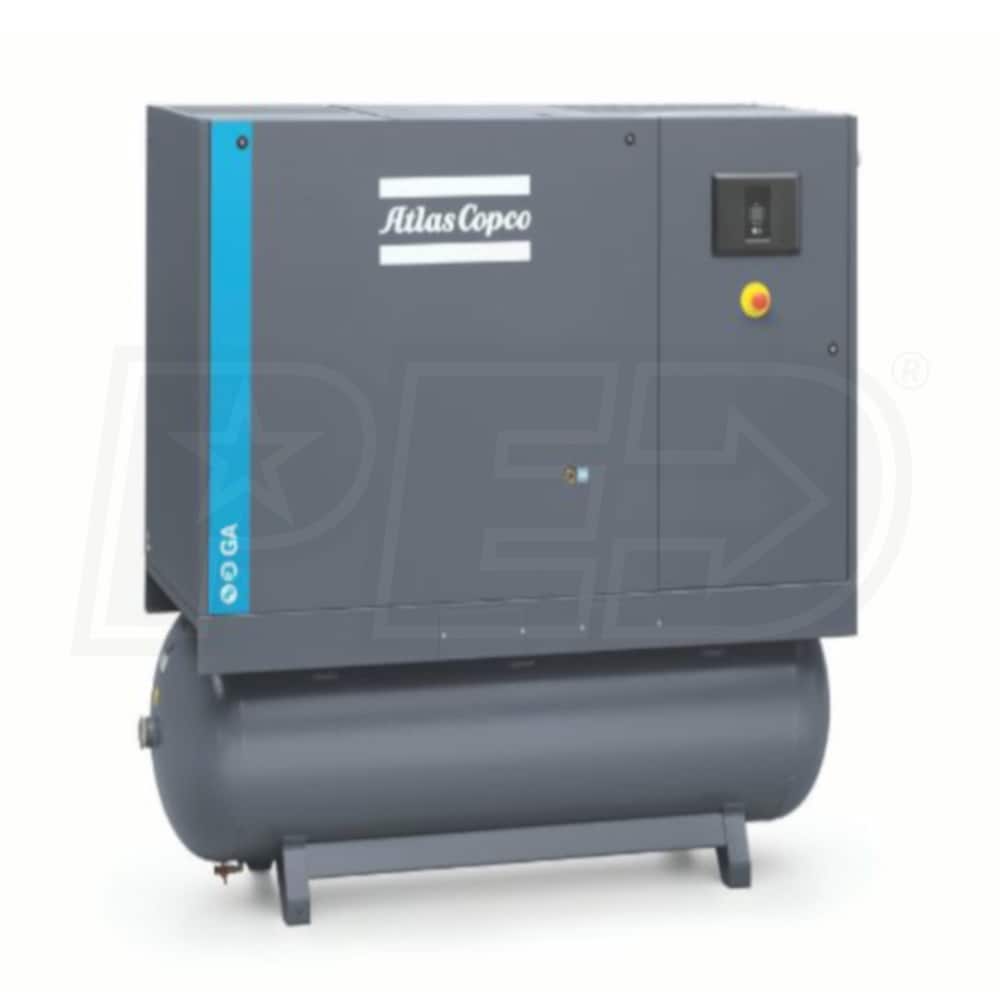

Atlas Copco GA22 WorkPlace 30-HP 132-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Model:
8153657658
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208-230/460 Volt AC
Phase
3-Phase
CFM
133.9
Tank Size
132
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
- Oil-Injected 30-HP Rotary Screw Compressor
- Powerful & reliable solution engineered for industrial conditions
- Delivers high-quality air in temperatures up to 46°C / 115°F

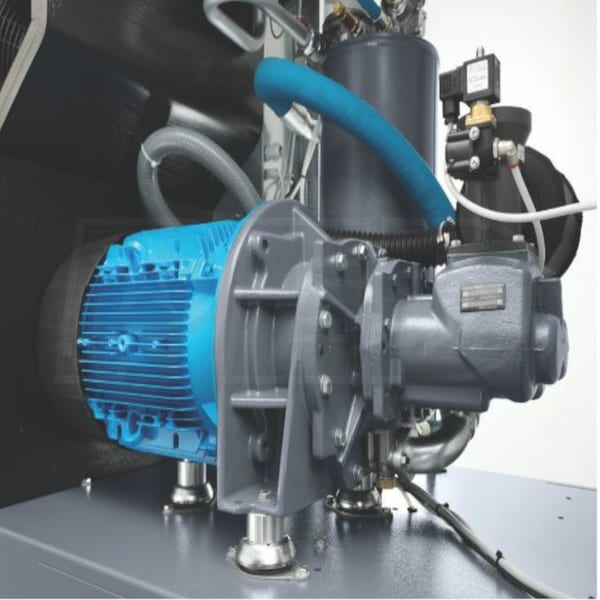

- Premium Efficiency TEFC Electrical Motor
- Motor & drive train are enclosed & greased for life, maximizing reliability
- 100% Duty Cycle For 24/7 Operation
- Reduced cubicle temperature doubles electrical component life
- Integrated Air Dryer Reduces Footprint
- Counterflow heat exchanger & integrated water separator maximize results

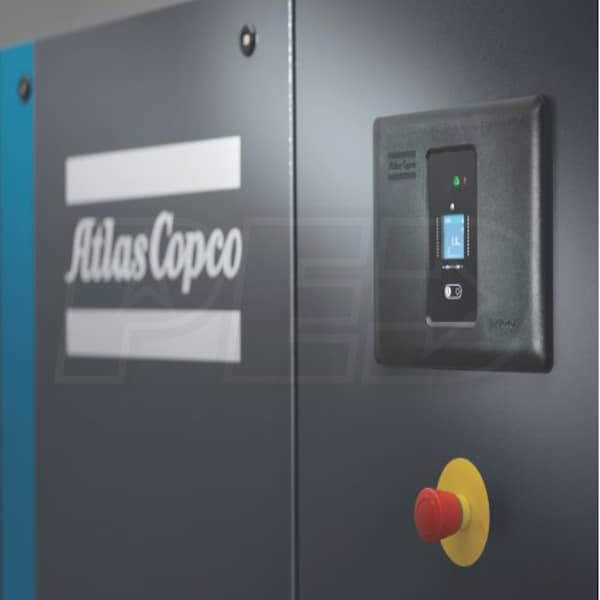

- Elektronikon MK5s Swipe Color Controller
- Graphic displays for warnings, maintenance, general condition
- Control up to 6 compressors; monitor your compressor remotely
- 133.9 CFM At 125 PSI With 1" Air Outlet
- Connects easily to your system
- Low Noise Rotary Technology Maximizes Workspace
- Enclosure further reduces sound levels so you can work nearby
- 132 Gallon Air Receiver
- Provides a remarkably compact footprint
- Electronic No-Loss Drain
- Delivers water separation of nearly 100 % in all conditions
- No-Cost Start-Up For This Unit Is Provided By Atlas
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
8153657658
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
30
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
133.9
CFM Rated @
125 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Included
Yes
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1686 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
75 Inches
Product Width
33 Inches
Product Height
73 Inches
Power Type
Electric
