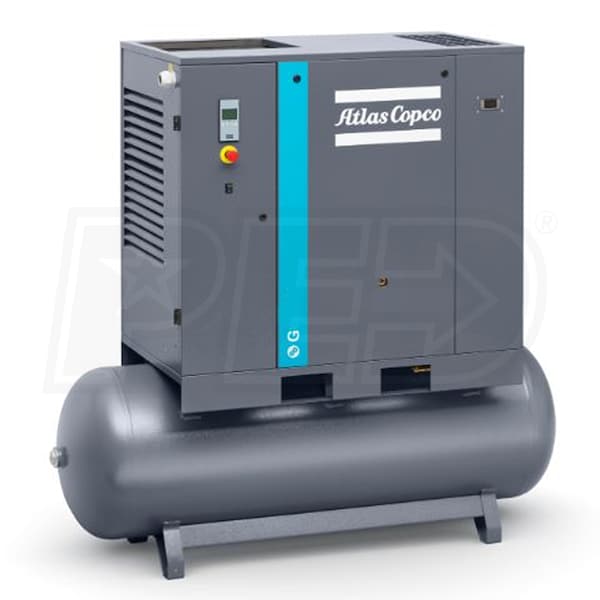

Atlas Copco G18 25-HP 132-Gallon FF Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Model: 8153335831
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
99
CFM Rated @ 125 PSI
Tank Size
132
Gallons
Grade
Commercial
CFM
99 CFM Rated @ 125 PSI
Tank Size
132 Gallons
Features
Features
- Latest Generation 25-HP Oil-Injected G Series
- Ideal for small to medium businesses
- Quiet performance doesn't require separate compressor space
- Operates at ambient temperatures up to 115°F (46°C); top discharge lets it fit in small spaces against a wall or corner
- Advanced BASE Electronic Controller
- Icon based, easy to understand display for pressure settings, temperature readings, service warnings, & running hours
- Allows outlet pressure setting directly from the controller; easily monitor outlet temperature
- Robust & Efficient Belt-Driven Rotary Compression Element
- Reduced noise levels and low vibration
- Full sound enclosures which reduce the sound levels
- Increases free air delivery by up to 3% compared to previous models
- IP55 (TEFC) Motor
- Meets or exceeds IEEE & NEMA premium efficiency standards with greased-for-life bearings
- Load / No Load Control
- Saves power to reduce energy cost and improves reliability
- Automatically switches for high, low, and intermittent air consumption
- Full Featured (FF) Package With Built-In Refrigerant Dryer
- In-line air filters delivers improved air quality
- Cools the compressed air and removes moisture, preventing rust damage to piping & tools
- Versatile
- 100% continuous duty cycle for reliable operation
- Meets ISO 9001, ISO 14001 & ISO 1217 which ensures a trouble-free air compressor
- Spin-On Oil Separator & Oil Filter
- Designed to be easily changed and maintained
- 2-step separator system reduces oil consumption & protects lubrication quality
- 132-Gallon ASME Air Tank
- 1-inch NPT air outlet; integrates easily with your equipment
- 1 Year Bumper-to-Bumper
Specifications
Engine
HP
25
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
69
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
99
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Filter
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1343 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
75 Inches
Product Width
33 Inches
Product Height
72 Inches
Power Type
Electric
Grade
Style
CFM
99
CFM Rated @ 125 PSI
Tank Size
132
Gallons
Grade
Commercial
CFM
99 CFM Rated @ 125 PSI
Tank Size
132 Gallons
Features
Features
- Latest Generation 25-HP Oil-Injected G Series
- Ideal for small to medium businesses
- Quiet performance doesn't require separate compressor space
- Operates at ambient temperatures up to 115°F (46°C); top discharge lets it fit in small spaces against a wall or corner
- Advanced BASE Electronic Controller
- Icon based, easy to understand display for pressure settings, temperature readings, service warnings, & running hours
- Allows outlet pressure setting directly from the controller; easily monitor outlet temperature
- Robust & Efficient Belt-Driven Rotary Compression Element
- Reduced noise levels and low vibration
- Full sound enclosures which reduce the sound levels
- Increases free air delivery by up to 3% compared to previous models
- IP55 (TEFC) Motor
- Meets or exceeds IEEE & NEMA premium efficiency standards with greased-for-life bearings
- Load / No Load Control
- Saves power to reduce energy cost and improves reliability
- Automatically switches for high, low, and intermittent air consumption
- Full Featured (FF) Package With Built-In Refrigerant Dryer
- In-line air filters delivers improved air quality
- Cools the compressed air and removes moisture, preventing rust damage to piping & tools
- Versatile
- 100% continuous duty cycle for reliable operation
- Meets ISO 9001, ISO 14001 & ISO 1217 which ensures a trouble-free air compressor
- Spin-On Oil Separator & Oil Filter
- Designed to be easily changed and maintained
- 2-step separator system reduces oil consumption & protects lubrication quality
- 132-Gallon ASME Air Tank
- 1-inch NPT air outlet; integrates easily with your equipment
- 1 Year Bumper-to-Bumper
Specifications
Engine
HP
25
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
69
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
99
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Filter
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1343 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
75 Inches
Product Width
33 Inches
Product Height
72 Inches
Power Type
Electric
Product Specs
+−
Specifications
Engine
HP
25
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
69
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
99
CFM Rated @
125 PSI
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Filter
Oil Coalescing
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1343 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
75 Inches
Product Width
33 Inches
Product Height
72 Inches
Power Type
Electric
