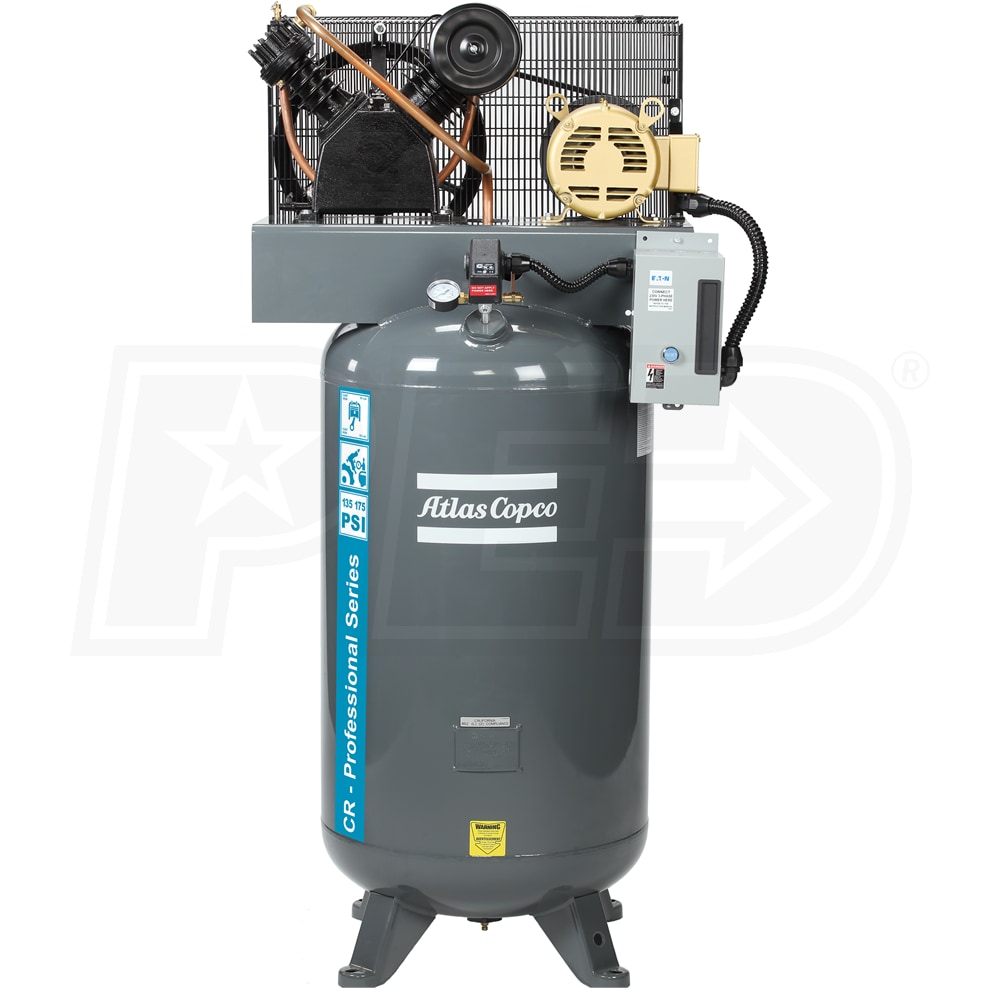

Atlas Copco CR5-OTS Professional 5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase)
Model: 2020040084
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
15.1
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
15.1 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
- Newly Designed Two-Stage CR Professional Series
- Best for high demands needing up to 175 PSI
- Perfect for contractors, automotive shops and manufacturing
- Economy Splash Lubricated Cast Iron Pump
- 2-piece connecting rods and oil pressure gauge
- More durable & longer service life than aluminum pumps
- Minimizes vibration, improves cooling, extends compressor life
- ODP 230 Volt Single-Phase Motor
- Runs cooler to prevent overheating
- Open drip proof motors tend to be slightly more efficient because windings are cooler
- Belt Drive w/ Heavy Gauge Wire Belt Guard
- Provides more power, easy to maintain
- Fully enclosed belt guard and ASME safety valves
- Full Cast-Iron Construction
- Can handle the most demanding conditions
- Ensures durability and reliability for the most demanding applications
- 80-Gallon ASME Air Tank
- Pressure gauge lets you check at a glance
- Air pressure switch allows compressor to run at its most efficient capacity
- High-Efficiency Intercooler
- Lowers compressed air temperature and reduces condensation
- Stainless steel valve design for highest volumetric efficiency
- 2-Year Bumper To Bumper Warranty
- No start-up kit required
- Covers defect in materials & workmanship
Specifications
Engine
HP
5
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Conult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
15.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
554 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
32 Inches
Product Width
26 Inches
Product Height
75 Inches
Power Type
Electric
Grade

Style

CFM
15.1
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
15.1 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
- Newly Designed Two-Stage CR Professional Series
- Best for high demands needing up to 175 PSI
- Perfect for contractors, automotive shops and manufacturing
- Economy Splash Lubricated Cast Iron Pump
- 2-piece connecting rods and oil pressure gauge
- More durable & longer service life than aluminum pumps
- Minimizes vibration, improves cooling, extends compressor life
- ODP 230 Volt Single-Phase Motor
- Runs cooler to prevent overheating
- Open drip proof motors tend to be slightly more efficient because windings are cooler
- Belt Drive w/ Heavy Gauge Wire Belt Guard
- Provides more power, easy to maintain
- Fully enclosed belt guard and ASME safety valves
- Full Cast-Iron Construction
- Can handle the most demanding conditions
- Ensures durability and reliability for the most demanding applications
- 80-Gallon ASME Air Tank
- Pressure gauge lets you check at a glance
- Air pressure switch allows compressor to run at its most efficient capacity
- High-Efficiency Intercooler
- Lowers compressed air temperature and reduces condensation
- Stainless steel valve design for highest volumetric efficiency
- 2-Year Bumper To Bumper Warranty
- No start-up kit required
- Covers defect in materials & workmanship
Specifications
Engine
HP
5
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Conult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
15.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
554 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
32 Inches
Product Width
26 Inches
Product Height
75 Inches
Power Type
Electric
Product Specs
+−
Specifications
Engine
HP
5
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Conult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
15.1
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
554 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
32 Inches
Product Width
26 Inches
Product Height
75 Inches
Power Type
Electric
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
What is the compressor RPM while running?
Matt J.
from Wisconsin
February 27, 2020
Answer
The motor is 3450 RPM and the pump runs at 941 RPM.
