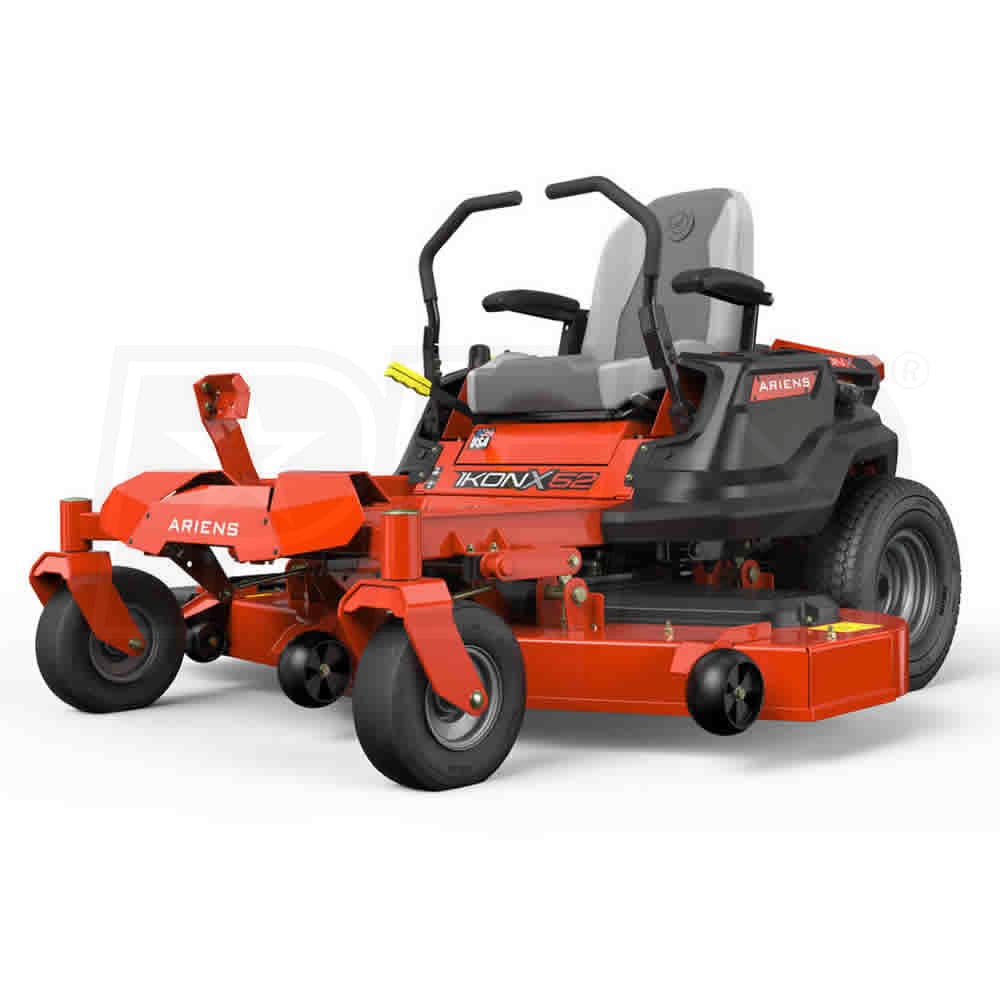

Ariens IKON X-52 (52") 23HP Kawasaki Zero Turn Lawn Mower

Model:

915223

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
View Ariens IKON XL-52 (52
Model:
915227
$4,099.99
$3,799.99
Product Discontinued
Ariens IKON X-52 (52
Ariens IKON X-52 (52") 23HP Kawasaki Zero Turn Lawn Mower
Model: 915223
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

Grade

Mid-Grade

Style

Zero Turn

Surface Area

Office Building, Farm, or Parks

Terrain

Hilly

Width

52 Cutting Inches

Engine

Kawasaki



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Premium 23HP/726cc Kawasaki FR Series OHV Engine
  • Rotating metal grass chopper screen keeps debris out
  • Full-pressure lubrication system with full-flow filter
  • Specially engineered to thrive in the dirtiest conditions
  • Dual Hydro-Gear™ ZT-2200 (EZT®) Hydrostatic Drive System
  • Fan cooled 10cc pumps and wheel motors on each drive wheel
  • Effortless and smooth operation with no shifting required
  • 52-Inch, 3-Blade Fabricated Mower Deck
  • Extremely sturdy 11-gauge steel capable of taking a beating
  • 4-point dual arm hanging system prevents excess deck movement
  • Adjust the deck height from your seat with the mechanical foot lift
  • Best-In-Class Cut Height Dial Selection
  • 13 optional cutting heights with 1/4" increments for a perfect cut
  • Adjust cutting height from 1.5" to 4.5" with a simple turn of a dial
  • Fully Tubular 3-Inch Frame
  • Designed with welded joints for added strength and stability
  • Decreases chassis flex for improved cut quality and maneuverability
  • Plush High-Back Seat With Arm Rests
  • Seat is designed to provide both support and added comfort
  • Armrests are adjustable in three different directions
  • 300 LB. Max Towing Capacity
  • See Trailer Hitch Kit HERE
California residents see
Warning: This product can expose you to chemicals including Carbon monoxide which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

915223
specs product image PID-71631
Engine
Engine Brand
Kawasaki
Starting System
12-Volt Key Start
Engine Cycle
4-Cycle
HP
23 HP
CC
726 CCs
Fuel Tank Size
2.8 Gallons
Engine Cylinders
2 Cylinders
Oil Filter
Yes
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
90 Days
Motor
Battery Voltage
12 Volts
Battery Type
Lead Acid
Battery Included
Included
Overview
Weight
635 Pounds
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Product Length
77.5 Inches
Product Width
56.0 up/63.5 down Inches
Product Height
41.0 Inches
UPC
751058042961
Deck
Cutting Options
3-in-1 (Side-Discharge/Bag/Mulch)
Deck Material
11-Gauge
Deck Construction
Welded
Blades
3 Blades
Spindle Material
Steel
Deck Positions
13 Positions
Cutting Width
52 Inches
Cutting Height
1.5-4.5 Inches
Deck Lift System
Manual Foot Operated
Engagement
Warner Electric
Deck Drive
Belt
Drive
Speeds
Variable
Maximum Speed
7 MPH
Maximum Reverse Speed
3 MPH
Drive Wheels
Rear Wheels
Transmission Type
Hydrostatic
Drive System
EZT Transaxles w/ 1" Axle
Accessories
Rear Bagger
Sold Separately
Seat Type
High Back w/ Seat Springs
Hour Meter
Included
Arm Rests
Included
Hitch
Sold Separately
Mulcher Kit
Sold Separately
Headlights
Sold Separately
Wheels
Front Tire Size
11 x 4 Inch
Rear Tire Size
18 x 8.5 Inch
Tire Type
Pneumatic Wheels
