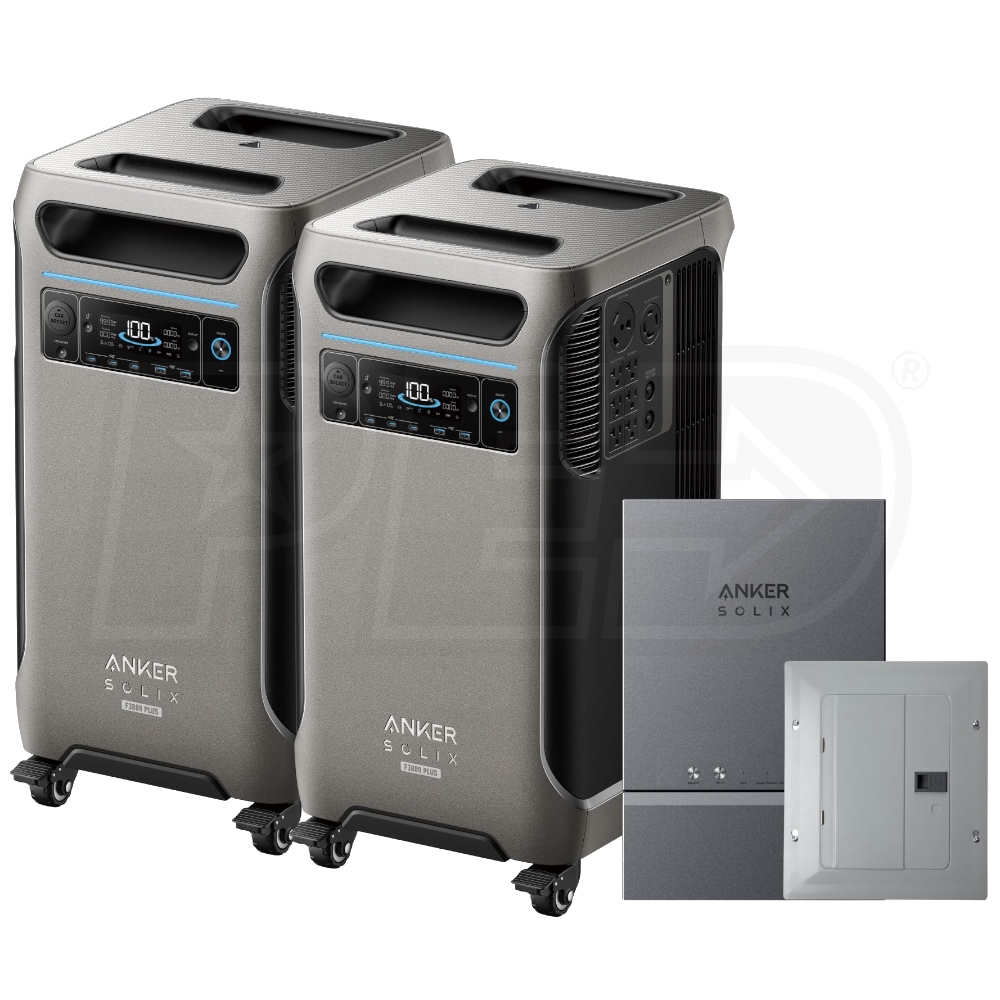

Anker SOLIX F3800 Plus - (2) 3840Wh Portable Power Station (TT-30RV) w/ Home Power Panel + Sub Panel
Model:
B1790112R
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Anker SOLIX F3800 Plus - 3840Wh Portable Power Station & Smart Home Power Kit
- Includes 2× Anker SOLIX F3800 Plus (12kW | 7.68kWh)
- Now with more solar input, generator bypass
- Perfect for power outages, outdoor adventures, and professional work
- 5-Year Warranty
- Safely Use Indoors
- Never worry about gas, fumes or maintenance again
- InfiniPower™ - LiFePO4 Battery Pack - 3840Wh
- Allows you to keep devices fully charged during outages & emergencies
- Charge and empty over 3000 times; 10 years of everyday use
- Expanded Capacity w/ Expansion Battery (Sold Separately)
- Expands capacity up 26,800Wh when using up to (6) extra battery
- Scaling up to 12kW (53.8kWh) for extended power outages
- AC Inverter Output - 6000 Watt Continuous (240V) / 9000 Watt Surge
- 120V/240V Split-phase output
- Pure Sine Wave design provides extremely clean power
- Allows you to safely power electronics, audio and video equipment
- 30-Amp NEMA TT-30 & 30-Amp NEMA L14-30R Outlets
- Make it easy to charge your EV or RV
- Allows for connections to manual transfer switch (Not Included) for home backup
- Gas Generator Charging
- Compatible with 240V gas generators (6,000W bypass) for extended power outages
- Industrial-Grade Electronic Components
- Last up to 6x longer compared to other power stations
- Informative LCD Display & Smart Temperature Controls
- Monitors battery for optimal performance; Easily see power station stats at a glance
- 3200 Watt Of Solar Input (2x165V) (Panels Sold Separately)
- Can fully charge power station in 1.5 hours (3200W)
- Fast AC Charging (1800W)
- Can fully charge power station in 2.67 hours
- Smart App Control (Bluetooth or Wi-Fi)
- Allows for control and real-time status of power station
- Multiple Output Receptacles
- (6) NEMA 5-15R 120V (2400W Max)
- (1) 30A NEMA TT-30R 120V (3000W Max)
- (1) 30A NEMA L14-30R 120/240V (6000W Max)
- (2) USB-A Ports: 5V, up to 2.4A (12W Max)
- (3) USB-C Ports: 5V (3A) DC, 9V (3A) DC, 15V (3A) DC, 20V (3A) DC, 20V (5A) DC (100W Max)
- (2) Car Power Output: 12V, 10A Max (120W)
- Available Input Options (Power-In)
- AC Charge Input Power: 18000
- Car Charger: 12/24V DC 10A (120W Max)
- Solar Charger Input: 3200W 11-165V DC (17A Max)
- DC Input Port: 60V Max, 120A Max
- Includes:
- AC Charging Cable, (MC4) 2-Port Solar Charging Cable & User Manual
- Includes Smart Home Panel & Subpanel (12-Circuit Backup Load Center)
- Provides backup power for essential home appliances during outages
- Seamlessly integrates Anker SOLIX F3800, utility grid, and roof solar power
- Should be installed by a licensed professional - Indoor Installation Only
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types














B1790112R

Overview
Product Category
Generator - Solar
Weight
135.6 Pounds
Consumer Warranty
5 Years
Product Style
Solar - Generator
Product Length
27.6 Inches
Product Width
15.3 Inches
Product Height
15.6 Inches
UPC
194644276225
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
6000 Watts
Surge Watts
9000 Watts
Fuel Type
Solar
Rated Amps
25 Amps
Portability Kit
Plastic Wheels
Fuel Gauge
Yes
Solar Input(s)
MC4
Chaining Port
Yes
Wi-Fi Remote Monitoring
Yes
Battery Storage (Wh)
7680
Low THD
Yes
Plugs
10-Amp DC - Cigarette Adapter
1
NEMA 5-20R - Single - Wall-Type
6
NEMA L14-30R
1
RV Ready 30-Amp
1
USB
5
Includes Solar Panel(s)
Solar Panel(s)
No
