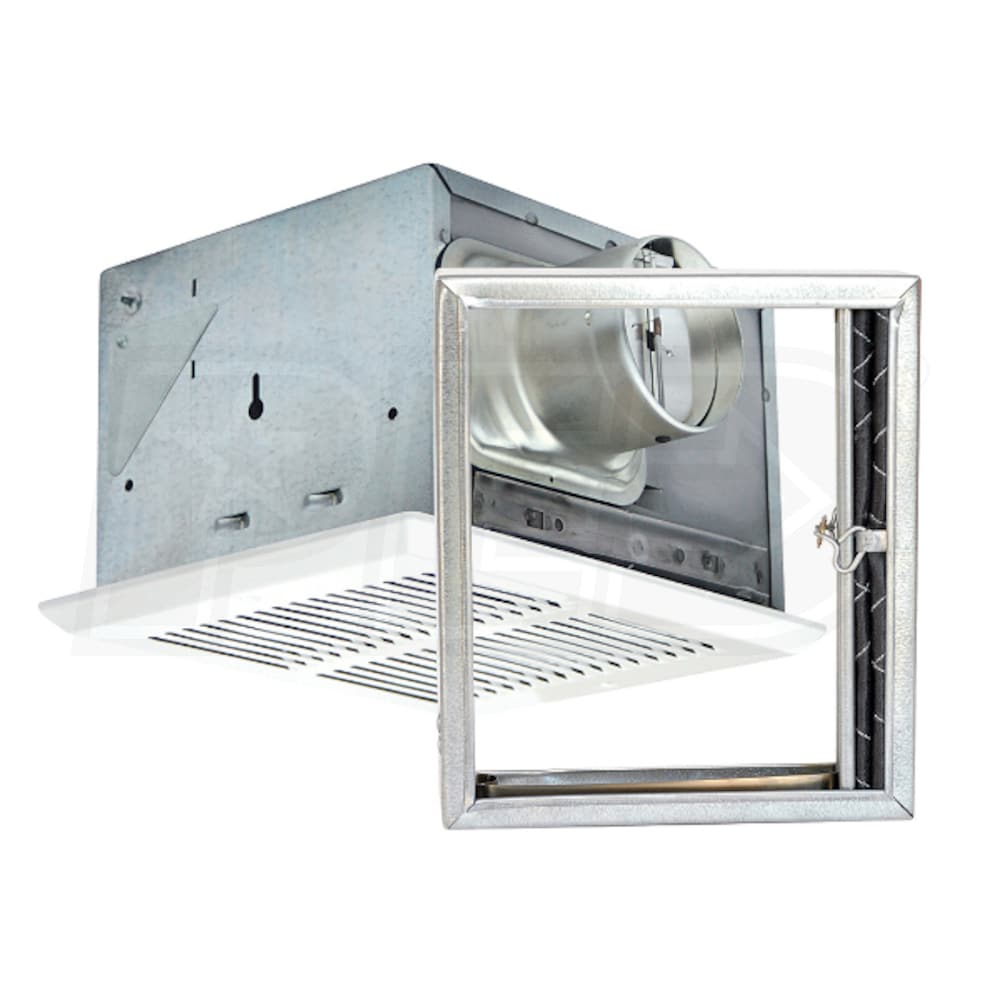

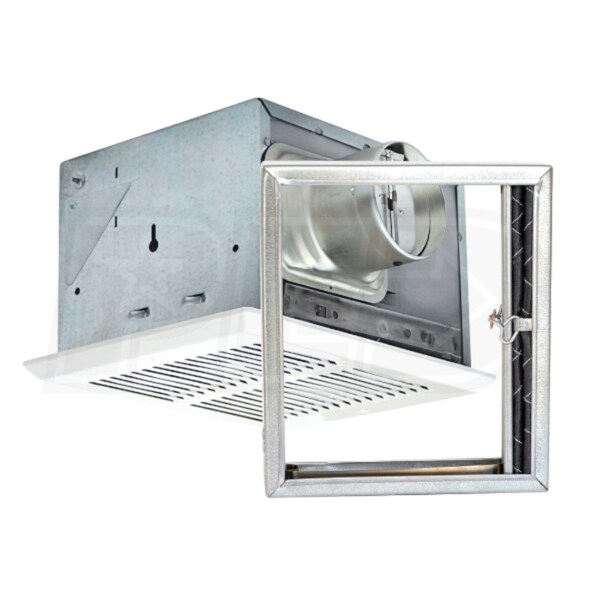

Air King FRAK50S - 50 CFM - Fire Rated Bathroom Exhaust Fan - 4" Duct

Model:

FRAK50S

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Air King FRAK50S - 50 CFM - Fire Rated Bathroom Exhaust Fan - 4
Air King FRAK50S - 50 CFM - Fire Rated Bathroom Exhaust Fan - 4" Duct
Model: FRAK50S
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    For over forty years and counting, Air King continues to demonstrate their reputation for making high quality ventilation products. The Air King FRAK50S is a 50 CFM bathroom exhaust fan with a low-profile grille that blends right into the ceiling. This Air King line of fire rated exhaust fans have been tested and UL listed for use in wood frame construction. They are designed to automatically shut off and seal the duct if high temperatures are detected. The FRAK50S is simple to install with included adjustable hanging brackets and features a 4-inch metal duct collar with a built-in damper to protect against backdrafts and ensure quiet operation. At 0.6 sones, the FRAK50S is truly a quiet fan. Effective for areas up to 60 square feet, the Air King FRAK50S can provide exceptional ventilation in most home applications.
  • Quiet Operation
  • With an air flow of 50 CFM and a sound level of only 0.6 sones, the Air King FRAK50S provides effective ventilation while being one of the quietest bathroom fans on the market.
  • Fire Rated System
  • The FRAK50S exhaust fan is UL rated to be installed into wood frame construction and are designed to automatically shut off and seal the duct if high temperatures are detected.
  • Back Draft Damper
  • A metallic, fire rated back draft damper comes included with the FRAK50S to eliminate back drafts and keep volume levels to a minimum.
  • Low-Profile Grille
  • The low-profile grille featured on the FRAK50S sits nearly flush with the ceiling, preventing the fan from detracting from your bathroom aesthetic while still adhering to fire rating regulations.
  • Simple Installation
  • Adjustable mounting brackets included with the FRAK80 allow for quick and easy installation.
  • Warranty
  • Every Air King product is warranted against defects in workmanship and materials for 1 year from the date of the purchase. During the warranty period, Air King will repair or replace any defective parts, or replace the entire product.

Specifications

FRAK50S
specs product image PID-79987
Overview
Product Category
Fans
UPC
083162903808
General Information
Type
Bathroom Fan
Product Category
Fans
Mount Type
Ceiling
Color
White
Housing Material
Steel
Includes Light
No
Performance
Maximum Air Flow
50 CFM
Maximum Sound Level Learn More
Maximum Sound Level
The sone is a unit of loudness, or how loud a sound is perceived. For reference, the loudness of rustiling leaves is around 0.02 sones, a quiet running refrigerator is around 2 sones, and a running car is around 4-16 sones.
0.6 Sones
RPM
935 RPM
Electrical Data
Voltage
120 Volts
Power Consumption
16 Watts
Phase
1
Frequency
60 Hz
Current Draw
0.2 Amps
Dimensions
Duct Connection
4 Inches
Product Height
7 7/8 Inches
Product Width
10 5/16 Inches
Product Length
12 15/16 Inches
Certifications
Country of Origin
United States
Energy Star Listed
Yes
ETL Listed
Yes
