Home » Shop by Brand » APC » 32315-UTS6BI

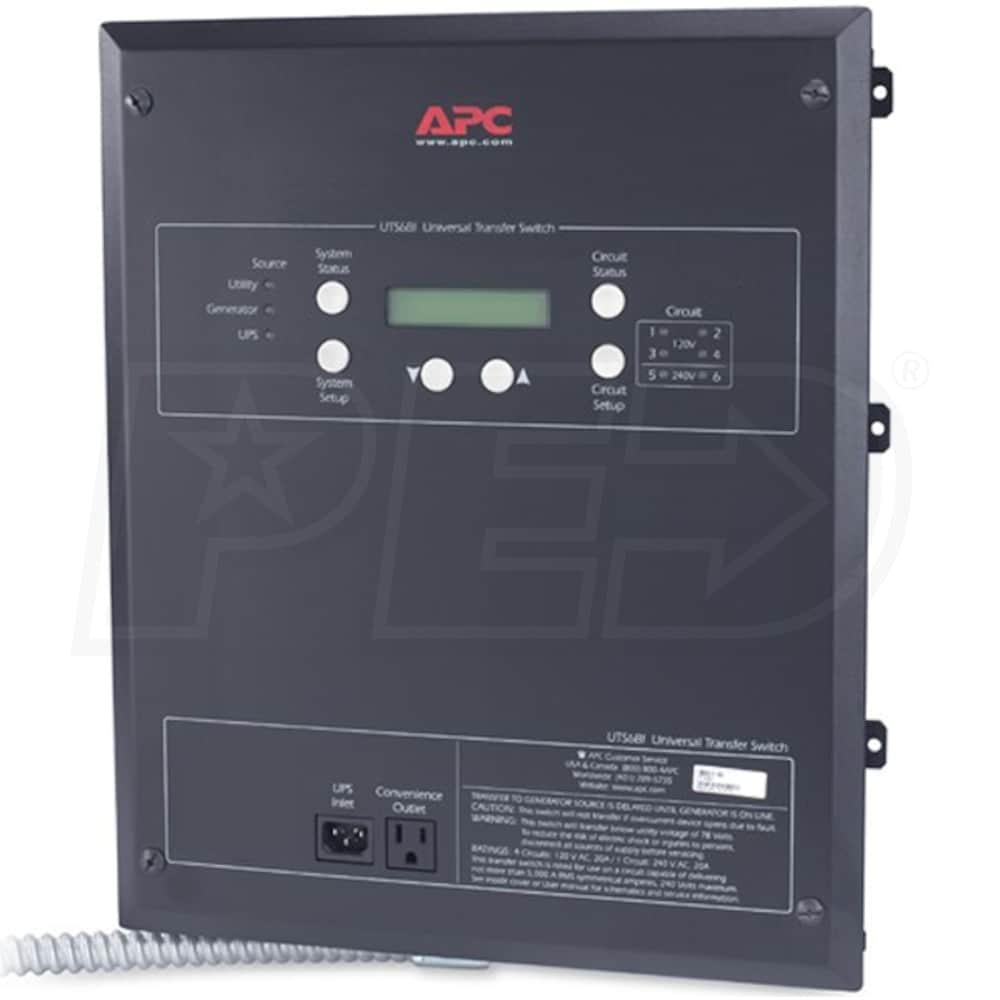

APC 20-Amp (120/240V 6-Circuit) Indoor Manual Transfer Switch
APC 20-Amp (120/240V 6-Circuit) Indoor Manual Transfer Switch
+
Share This Product
-
Product Description
-
Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- The Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- Generator Compatible
- Ensures clean, uninterrupted power to protected equipment
- Alpha-Numeric LCD Display w/ LED Status lights
- Easy see system paramaters and alarms
- Quickly understand unit and power status with visual indicators
- Adaptive Load Management (ALM)
- Intelligently monitors usage & maximizes operating efficiency
- Real-Time Load Status (Up to 6 Circuits)
- Circuit loads are provided numerically on LCD display
- Eliminates the need for wattmeters & make load balancing easy
- Manual Maintenance Bypass
- Lowers installation cost & need for an external mechanical bypass
- Convenience Outlet
- Powers and charges a UPS or other 120V input power source
- Hardwire Capable & Easy To Install
- Innovative design allows for fast, easy installation
- UPS Compatible - Accepts input power from any 120V power source
- UL 1008 Certified & Meets UL 1008 Transfer Switch Standard
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
5000 Watts
Rated Amps
20 Amps
Number of Circuit Breakers
6
Maximum Wattage
5000 Watts
UL Listed
No
Overview
Weight
21.5 Pounds
Consumer Warranty
2 Years
Product Length
19.6 Inches
Product Width
15.5 Inches
Product Height
3.3 Inches
Plugs
NEMA L14-20R
1
Type
Amp Rating
Circuits
6
Enclosure
Type
Manual
Amp Rating
20
Circuits
6
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- The Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- Generator Compatible
- Ensures clean, uninterrupted power to protected equipment
- Alpha-Numeric LCD Display w/ LED Status lights
- Easy see system paramaters and alarms
- Quickly understand unit and power status with visual indicators
- Adaptive Load Management (ALM)
- Intelligently monitors usage & maximizes operating efficiency
- Real-Time Load Status (Up to 6 Circuits)
- Circuit loads are provided numerically on LCD display
- Eliminates the need for wattmeters & make load balancing easy
- Manual Maintenance Bypass
- Lowers installation cost & need for an external mechanical bypass
- Convenience Outlet
- Powers and charges a UPS or other 120V input power source
- Hardwire Capable & Easy To Install
- Innovative design allows for fast, easy installation
- UPS Compatible - Accepts input power from any 120V power source
- UL 1008 Certified & Meets UL 1008 Transfer Switch Standard
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
5000 Watts
Rated Amps
20 Amps
Number of Circuit Breakers
6
Maximum Wattage
5000 Watts
UL Listed
No
Overview
Weight
21.5 Pounds
Consumer Warranty
2 Years
Product Length
19.6 Inches
Product Width
15.5 Inches
Product Height
3.3 Inches
Plugs
NEMA L14-20R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
5000 Watts
Rated Amps
20 Amps
Number of Circuit Breakers
6
Maximum Wattage
5000 Watts
UL Listed
No
Overview
Weight
21.5 Pounds
Consumer Warranty
2 Years
Product Length
19.6 Inches
Product Width
15.5 Inches
Product Height
3.3 Inches
Plugs
NEMA L14-20R
1
Reviews
+−
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
Does the APC 30-Amp (120/240V 10-Circuit) Indoor Manual Transfer Switch qualify for AFCI breaker requirements?
Dan
from New York
December 12, 2016
Answer
According to APC Tech Support you cannot use AFCI or GFI circuits with this transfer switch, or any of the other APC switches we currently sell.
