AAA 3500 PSI 2.5 GPM (3/4" Shaft) Axial Pressure Washer Pump Kit

Model:

90052

Write A Review
$210.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
AAA 3500 PSI 2.5 GPM (3/4
AAA 3500 PSI 2.5 GPM (3/4" Shaft) Axial Pressure Washer Pump Kit
Model: 90052
$210.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Gas

Inflow

Garden Hose (Female)

Outflow

22m Threaded (Male)

  • Direct Drive Horizontal Axial Replacement Pump
  • Great for power washers that can support 3500 PSI at 2.5 GPM
  • Save money by replacing the pump instead of buying a new power washer
  • 3/4" Shaft & SAE Gas Engine Flange
  • SAE standard bolt pattern fits most gas-powered pressure washers
  • Designed for gas-powered pressure washers with horizontal engines
  • PowerBoost Technology
  • Delivers higher pressure at the nozzle for efficient cleaning
  • Hand-turn knob to reduce power for tasks that require lower pressure

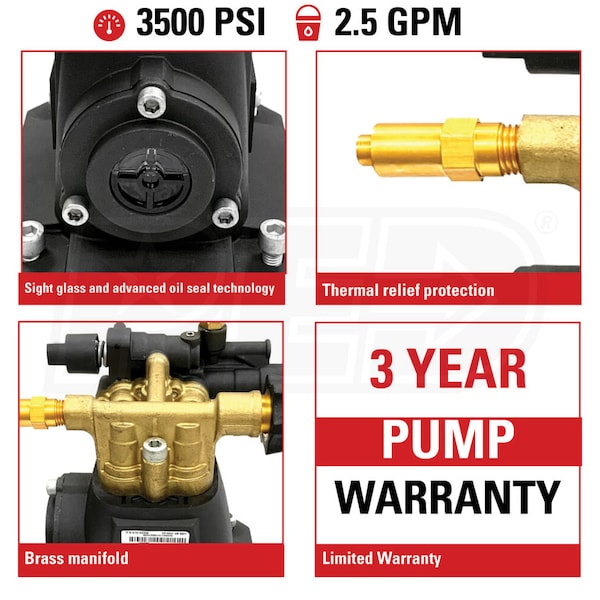

  • Thermal Relief Protection (TRV)
  • Protects the pump from overheating while in bypass mode
  • Releases small amounts of hot water and intakes cooler water to extend pump life
  • Maintenance-Free Crankcase
  • Strong, long-lasting, and corrosion resistant
  • Improved seal life to prevent water leaks for higher efficiency
  • Stainless-Steel Pistons & Integrated Unloader
  • Better wear and friction resistance extends seal life
  • Integrated unloader with easy start system makes start up a breeze
  • Threaded M22 Pump Outlet & 3/4" Garden Hose Inlet
  • Check your pressure washer's inlet & outlet orientation to ensure compatibility

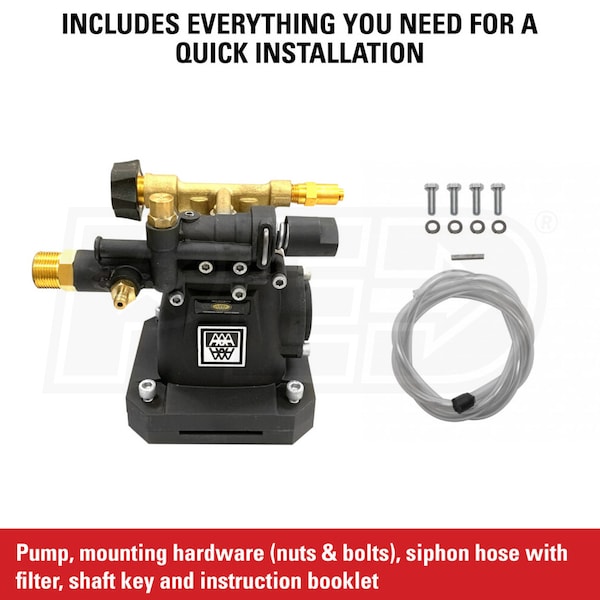

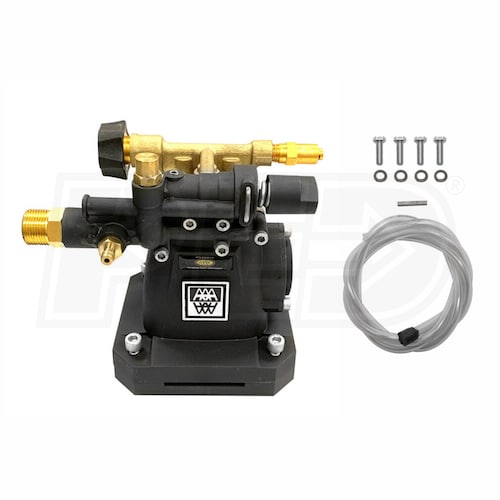

  • Complete Kit for Easy Installation
  • New mounting bolts, shaft key for tight connection, siphon & instruction manual

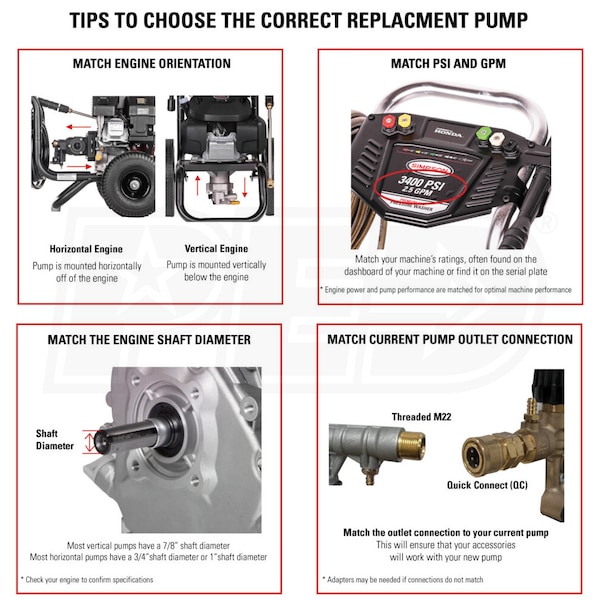

  • Be Sure To Measure Shaft & Bolt Holes Accurately
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

90052
specs product image PID-149095
Overview
Product Category
Pressure Washer Pumps
Weight
9 Pounds
Consumer Warranty
3 Years
Product Length
10 Inches
Product Width
8.25 Inches
Product Height
9.75 Inches
UPC
879399005121
Accessories
Pump Brand
AAA
Pump Type
Axial Cam
Shaft Size
3/4
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Consumer
Accessory Style
Gas
Inflow
Garden Hose (Female)
Outflow
22m Threaded (Male)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
2.5
Rated PSI
3500 PSI
Chemical Injections
Siphon Tube
