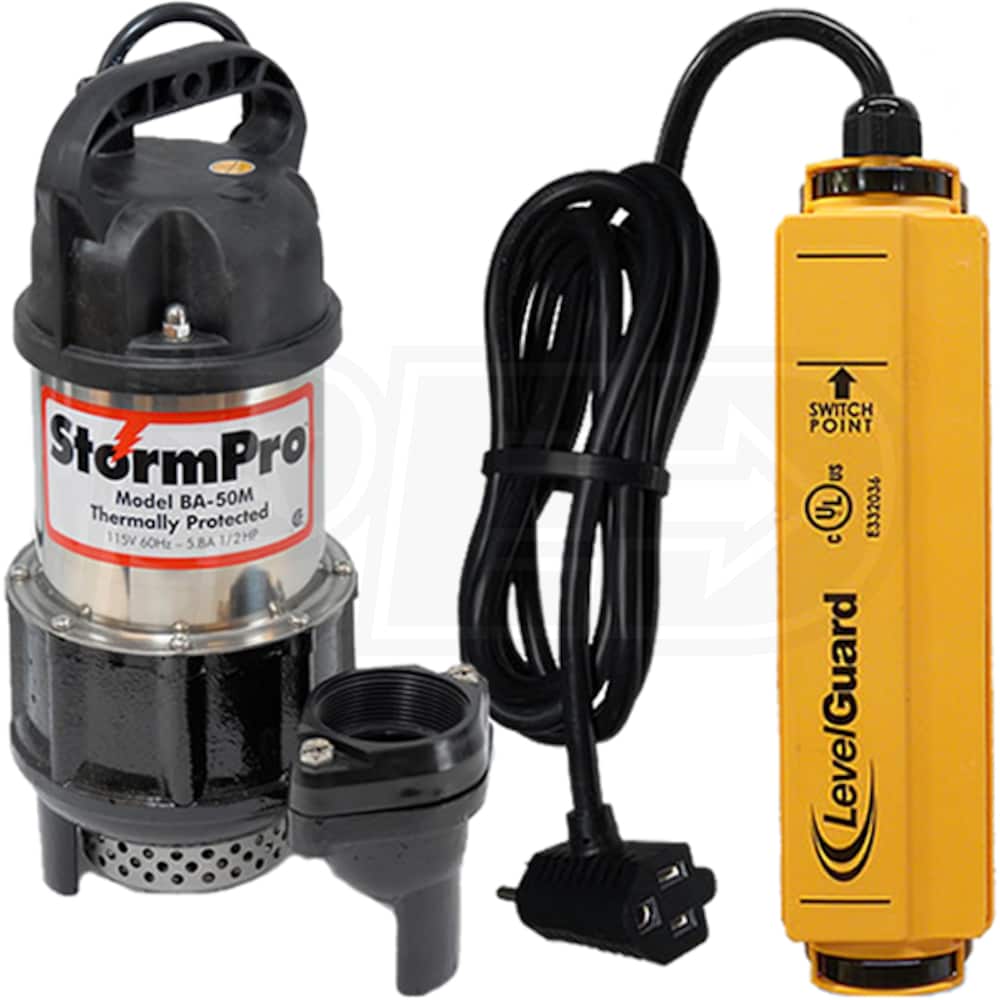

iON 1/2 HP Cast Iron Stainless Steel Sump Pump w/ LevelGuardŽ Switch
Model:
SPD-BA-50-KIT
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
4500 Gallons
Switch Type
None
- Includes LevelGuardŽ Electronic Sump Pump Control
- The most dependable electronic switch on the market today
- Field-Effect Sensing Technology - NO MOVING PARTS
- Eliminates the #1 failure mode in traditional sump pump systems
- Powerful & Efficient Submersible Pump
- Ideal for heavy-duty sump applications
- Cast Iron Stainless Steel Construction
- Ensures years of reliable operation
- 1/2 HP Thermally Protected Motor
- Oil-filled, prevents overheating
- Cast Iron Impeller
- Offers reliable pumping
- Stainless Steel Screened Intake
- Prevents debris from entering the pump
- Poly Resin Top Cap and Handle
- Made for easy installation and maintenance
- 10' Cord
- Designed for indoor and outdoor applications
- Min sump pump basin size 18" X 24"
- (1) iON 1/2 HP Cast Iron Stainless Steel Sump Pump (Non-Automatic) HP20162 (BA-50)
- (1) LevelGuard Z24800A1Z - Electronic Sump Pump Switch w/ 9' Cord (Z24800ALZ)
Product Includes
Specifications
Product Includes
- (1) iON 1/2 HP Cast Iron Stainless Steel Sump Pump (Non-Automatic) HP20162 (BA-50)
- (1) LevelGuard Z24800A1Z - Electronic Sump Pump Switch w/ 9' Cord (Z24800ALZ)
SPD-BA-50-KIT
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
5.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
20.4
Pump
Housing Material
Stainless Steel
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
No Switch
GPH @ 0 feet
4500
GPH @ 5 feet
4200
GPH @ 10 feet
3660
GPH @ 15 feet
3060
GPH @ 20 feet
2400
Discharge Port Size
2 Inch
Check Valve Included
No
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
30 Pounds
Consumer Warranty
3 Years
Product Length
8.75 Inches
Product Width
5.75 Inches
Product Height
13.8 Inches
Accessories
Float Switch
Yes
HP20162
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
20.4
Pump
Housing Material
Stainless Steel
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4500
GPH @ 5 feet
4200
GPH @ 10 feet
3660
GPH @ 15 feet
3060
GPH @ 20 feet
2400
Discharge Port Size
2 Inch
Check Valve Included
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
30 Pounds
Consumer Warranty
3 Years
Product Length
8.75 Inches
Product Width
5.75 Inches
Product Height
13.8 Inches
Z24800A1Z
Motor
Power Cord Length
9 Feet
Pump
Float Type
Electronic
Overview
Weight
1.8 Pounds
Made in USA
No
Consumer Warranty
5 Years
Product Length
10.1 Inches
Product Width
2.4 Inches
Product Height
1.1 Inches
