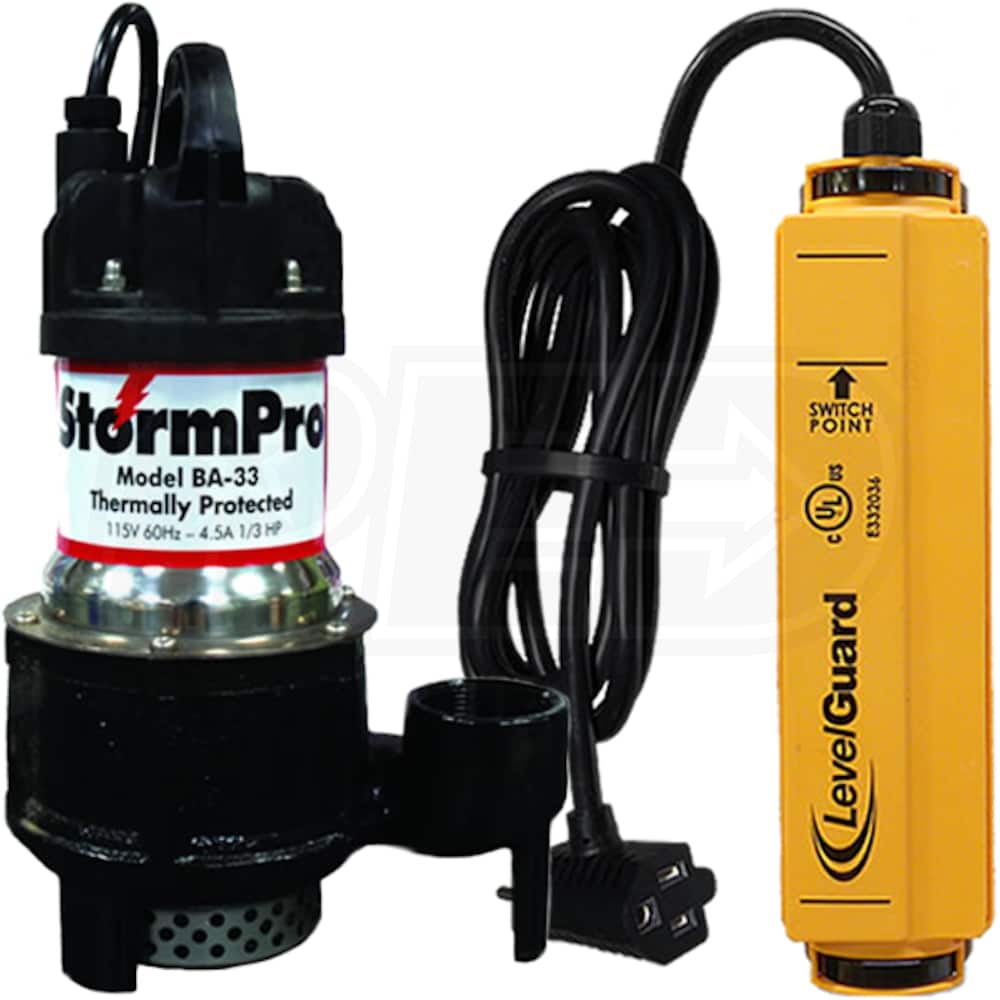

iON 1/3 HP Cast Iron Stainless Steel Sump Pump w/ LevelGuardŽ Switch
Model:
SPD-BA-33-KIT
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
4080 Gallons
Switch Type
None
- Includes LevelGuardŽ Electronic Sump Pump Control
- The most dependable electronic switch on the market today
- Field-Effect Sensing Technology - NO MOVING PARTS
- Eliminates the #1 failure mode in traditional sump pump systems
- Powerful & Efficient Submersible Pump
- Ideal for heavy-duty sump applications
- Cast Iron Stainless Steel Construction
- Ensures years of reliable operation
- Thermally Protected Motor
- Reduces overheating
- Stainless Steel Screened Intake
- Prevents debris from entering the pump
- Poly Resin Top Cap and Handle
- Made for easy installation and maintenance
- (1) iON 1/3 HP Cast Iron Stainless Steel Sump Pump (Non-Automatic) HP20180 (BA-33)
- (1) LevelGuard Z24800A1Z - Electronic Sump Pump Switch w/ 9' Cord (Z24800ALZ)
Product Includes
California residents see
Warning: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) iON 1/3 HP Cast Iron Stainless Steel Sump Pump (Non-Automatic) HP20180 (BA-33)
- (1) LevelGuard Z24800A1Z - Electronic Sump Pump Switch w/ 9' Cord (Z24800ALZ)
SPD-BA-33-KIT
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
4.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
12
Pump
Housing Material
Stainless Steel
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4080
GPH @ 5 feet
3660
GPH @ 10 feet
3000
GPH @ 15 feet
2400
GPH @ 20 feet
1260
Discharge Port Size
1-1/2 Inch
Submersible
Yes
Engine
Horsepower
.33 hp
Accessories
Float Switch
Yes
Overview
Weight
21 Pounds
Consumer Warranty
3 Years
Product Length
7.75 Inches
Product Width
5.5 Inches
Product Height
12.5 Inches
HP20180
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
4.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
12
Pump
Housing Material
Stainless Steel
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4080
GPH @ 5 feet
3660
GPH @ 10 feet
3000
GPH @ 15 feet
2400
GPH @ 20 feet
1260
Discharge Port Size
1-1/2 Inch
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Weight
21 Pounds
Consumer Warranty
3 Years
Product Length
7.75 Inches
Product Width
5.5 Inches
Product Height
12.5 Inches
Z24800A1Z
Motor
Power Cord Length
9 Feet
Pump
Float Type
Electronic
Overview
Weight
1.8 Pounds
Made in USA
No
Consumer Warranty
5 Years
Product Length
10.1 Inches
Product Width
2.4 Inches
Product Height
1.1 Inches
