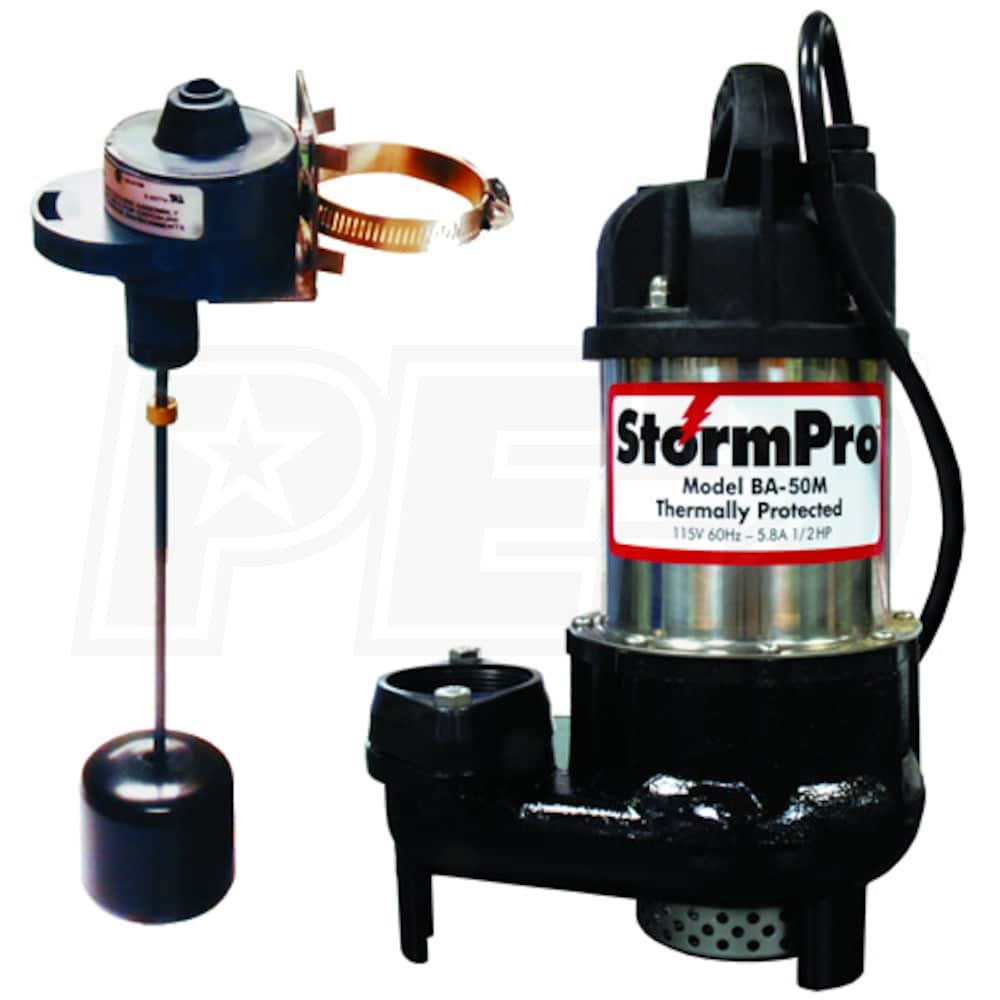

iON 1/2 HP Cast Iron Stainless Steel Sump Pump w/ Adjustable Vertical Float (20' cord) HP20308

Name: iON 1/2 HP Cast Iron Stainless Steel Sump Pump w/ Adjustable Vertical Float (20' cord) HP20308
Brand: iON Products
SKU: 2878
Price: 352.00 USD
Availability: InStock

Model:

BA50SPI

Write A Review

$352.00

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.

Only 4 In-Stock

Ships Monday, Apr 3rd

Shipping to60601

iON 1/2 HP Cast Iron Stainless Steel Sump Pump w/ Adjustable Vertical Float (20' cord) HP20308

Model: BA50SPI

$352.00

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Jim, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Style

Primary

GPH

4500 Gallons

Switch Type

Vertical

Powerful & Efficient Submersible Pump
Ideal for heavy-duty sump applications
Cast Iron Stainless Steel Construction
Ensures years of reliable operation
Adjustable Vertical Switch
Reduce pump cycles in deeper pits or areas w/ higher water tables
Thermally Protected Motor
Oil-filled, prevents overheating
Cast Iron Impeller
Offers reliable pumping
Stainless Steel Screened Intake
Prevents debris from entering the pump
Poly Resin Top Cap and Handle
Made for easy installation and maintenance
Piggyback Pump and Switch Cord Assembly
Made for easy serviceability
20' Cord

Specifications

BA50SPI

General Information

Product Category

Sump Pump

Base

Base Material

Cast Iron

Min Sump Basin Size

10 Inch

Motor

Voltage

120 Volt

Running Amps

5.8

Thermal Protection

Yes

Power Cord Length

20 Feet

Oil Free Motor

Starting Amps

20.4

Pump

Housing Material

Stainless Steel

Impeller Material

Cast Iron

Solids Handling Size

0.5 inch

Handles Solids

Yes

Float Type

Vertical Float

GPH @ 0 feet

4500

GPH @ 5 feet

4200

GPH @ 10 feet

3660

GPH @ 15 feet

3060

GPH @ 20 feet

2400

Discharge Port Size

2 Inch

Check Valve Included

Float On

Adjustable

Float Off

Adjustable

Manual Override

Yes

Submersible

Yes

Engine

Horsepower

.5 hp

Overview

Product Category

Sump Pump

Weight

30 Pounds

Made in USA

Consumer Warranty

3 Years

Product Length

8.75 Inches

Product Width

5.75 Inches

Product Height

13.9 Inches

UPC

6482605855638

Additional Model Numbers

BA-50M, BA50SPI

Reviews

(73)

iON Products BA50SPI Reviews & Ratings

Product Q&A

(17)

Product Questions Answered by Jim, the Sump Pump Expert

My water softener wash tube discharges into my sump pit. Will the Storm Pro BA Series Pump hold up to the salt water in the pit?

Jim T

from Ohio

January 29, 2014

i just purchased this pump and do i need to drill a relief hole in the discharge pipe?

Dan N

from Illinois

June 11, 2013

Answer

You should always drill a "weep" hole in your discharge pipe to help prevent air lock in your discharge pipe between the discharge port of the pump and the check valve. I recommend drilling a 1/8" or 3/16" diameter hole about 4" up from the base of the discharge port of your pump into your PVC discharge pipe. Drill the hole at a 45 degree angle with the hole pointing toward the bottom of your sump basin.

Was this answer helpful?

Yes

Is this pump capable of handling water softener and washing machine discharge? if not, which brand/model can?

Steve K

from Wisconsin

June 06, 2013

Answer

Generally, sump pumps are not recommended for use in a water softener and/or laundry application. Just about all manufacturers will void the warranty if the pump is installed and fails in this application. You might check out our selection of LAUNDRY / DRAIN PUMP SYSTEMS as most of these self contained systems are designed for laundry and water softener applications.

Was this answer helpful?

Yes

Hi Jim I have a handful of questions about your StormPro BA-50M. 1. How adjustable is the float switch? I get that I can mount it on the discharge hose and make the pump turn on at any height I choose. But can I, for example, set the pump to turm on at 25" and turn off at 3"? Or do I have a limited range of play between the on/off settings? 2. Is the manual override switch physically located on the pump casing or is there an option for remote control via a cord? 3. Is the outlet port 2" FNPT? 4. Is the float switch mercury free? 5. Is there any way I can get my hands on the user manual prio to purchasing this pump? (PDF download or similar?) 6. And... do you sell to Fed. Gov Agencies? If yes, do you have a special department or person that I need to contact? Thanks! Have a great day!

Mon Kwong

from Virginia

March 07, 2013

Answer

The vertical float switch for the StormPro pumps have a 6-1/2" differential, so they will only pump out between 6-1/2" - 7" of water no matter what height you clamp it down at. For more control on your pump run time, you might consider the Pro Series - Standard Controller System w/ Dual Vertical Float Switch, model DFC1 which will activate the pump for 10 seconds once the float drops to it's original position or the Pro Series - Deluxe Controller System w/ Dual Vertical Float Switch, model DFC2, which gives you the option of setting your pump run time from 5-45 seconds once the float drops to it's original position.

The StormPro pump does not provide for a manual override switch. If you wish to use the pump manually, you simply remove the vertical float switch and plug the pump into your AC outlet direct.

The discharge port on the BA-50M is a 2" female NPT.

The float switch is, as all are required to be, mercury free.

You can access the operation manual
HERE.

We do sell to government agencies however, we do not accept PO's for payment.

If you have additional questions, please let me know.

Was this answer helpful?

Yes

Hi Jim! I own a couple 1/2's and a 1/3 hp storm pros. I just saw that they are not "Oil Free" pumps, does that mean they need any oil maintenance, why would they mention it otherwise? Didn't see any oil notes elsewhere. Thank you!

Vince P

from New Jersey

December 28, 2012

Answer

The StormPro pumps are oil filled to help keep the pump cool and generally do not require any oil maintenance. This is usually mentioned on all our pumps since some are oil filled and some are not. The non-oil filled pumps are considered water-cooled and are safe for applications that might require a continuous duty waterfall in a fish pond or some other environment that would include aquatic life.

Was this answer helpful?

Yes

Can the StormPro 1/2 HP Cast Iron Stainless Steel Sump Pump be used with back-up battery or it must be plug in to an electrical outlet.

JAMES P

from New York

September 24, 2012

Answer

The StormPro model BA-50M, 1/2HP sump pump is designed to be operated on 120 volts AC. There currently is no battery capable of powering a 120 volt primary sump pump. The only possible options would be an AUXILARY POWER SYSTEM which will operate up to a 1/2HP pump for up to 10-12 hours continuous or 24-36 hours non-continuous, a complete BATTERY BACKUP SYSTEM or looking into the possibility of installing a STANDBY GENERATOR.

Was this answer helpful?

Yes

I would like to know how many watts a 1/3 or 1/2 hp sump pump has, because i was think of buying a portable generator in case the power goes off.

Tom B.

from New York

September 03, 2012

Answer

That really depends on the pump. Some are more efficient than others. For example, the 1/3HP Basement Watchdog model BW1033 has a running amp rating of 3.5 and a starting amp rating of 7. When you figure the watts by the formula of amps times volts equals watts ( A X V = W), you get 420 running watts and 840 starting watts. But when you look at the Zoeller 1/3HP model M53, that pump has a running amp rating of 9.6 and a starting amp rating of 29.6 or 1152 running watts and 3552 starting watts.

Was this answer helpful?

Yes

I understand that the BA-33M has a switch differential of 6-1/2 inches. Can I modify it with a longer rod to increase that differential and thus further cycling?

Ben

from Ohio

June 27, 2012

I would like to buy the storm pro 1/3 hp pump but would like level switch to control over a longer span (deep pit with higher flow rates at times) want to minimize cycles. Is there a different longer switch rod that can replace the stock version.

Barry

from Minnesota

May 08, 2012

Answer

Unfortunately not! Your only options would be the Pro Series Ultimate Sensor Pump Controller System, model USC3 or the Superior Pump Wide Angle Tether Float Switch w/ Piggyback Plug, model 92005. The Pro Series switch can be adjusted to pump for 5 - 45 seconds once the water level drops below the sensor and the Superior tether float has an adjustable pumping range of 7” to 36”.

Was this answer helpful?

Yes

Jim, looking to understand the power consumption of the StormPro 1/2HP Model BA-50M pump. If its 1/2 HP at 120V, that converts to 375watts or 3.1 Amps by standard conversion. The pump is rated at 5.1 amps constant which converts to 615 watts at 120V or over 3/4HP. I'm trying to understand the difference and which one is accurate representation of power consumption.

Dar

from Michigan

March 31, 2012

Is the Storm Pro Ba33m 1/3 HP UL inspected?

Gregory Speicher

from Pennsylvania

January 28, 2012

Answer

No they are not, but they do carry the CSA certification.

CSA International (Canadian Standards Association), a member of the CSA Group, is a provider of product testing and certification services for electrical, mechanical, plumbing, gas and a variety of other products. Recognized in the U.S., Canada and around the world, CSA’s marks appear on billions of products worldwide.

CSA International certification marks indicate that a product, process or service has been tested to a Canadian or U.S. standard and it meets the requirements of an applicable CSA standard or another recognized document used as a basis for certification.

Was this answer helpful?

Yes

What is the height and width of this unit?

Walter

from California

October 08, 2011

I need to upgrade my pumping capacity - current sump pump (approx. 2400 GPH @ 10ft) was overwhelmed last season. I am looking at the StormPro 1/2 HP or 3/4 HP pumps. I currently have 1 1/2" piping and wondered if you could tell me what the actual GPH on both of these StormPro pumps would be if I use a 2" to 1 1/2" adaptor at the base of discharge and is this adaptor provided with these pumps? Thanks!

Rob

from Wisconsin

April 14, 2011

Answer

The StormPro BA-33M 1/3HP pump will do 3000 GPH @ 10 feet and the model BA-50M 1/2HP pump will do 4200 GPH @ 10 feet. I wouldn't think you should need to increase your pumping capacity any more than that. Typically, if your current pump is not keeping up with the incoming water, you should only increase the HP by one size. As for the pumping capacity when reducing the 1/2HP BA-50M down to 1 1/2" discharge, you might try calling StormPro at (800) 323-1665 x231. Another option would be to add a BATTERY BACKUP SYSTEM. Most systems will activate should the water level in you pit rise to the level of the backup systems float switch to assist your primary pump and add extra pumping capacity if needed.

Was this answer helpful?

Yes

I have the StormPro 1/3hp pump and want to upgrade to the 1/2hp. My discharge pipes are 1.5 inches now. Will I have to change the discharge pipe to 2 inch or is there a way to make this work without changing all my piping?

Bob

from Massachusetts

April 06, 2011

What does "manual override" on the float switch mean? I have a 110 volt receptacle that is controlled by a float. Will this pump work with that receptacle?

Bob

from Michigan

February 12, 2011

How does the sump pump connect to the independent float switch, Does the pump plug into the switch and the switch plugs into the power?

Mark

from New Jersey

February 09, 2011

Hi Jim. I know the float can be attached to discharge line. I'm wondering what the maximum On/Off points are. Looking to figure out how many inches of water will be pumped out per cycle. Thanks.

Charlie

from New York

January 05, 2011
