Zoeller M53 - 1/3 HP Cast Iron Primary/Backup Sump Pump w/ Vertical Float Switch + Auxillary Unit, Battery & Check Valve

Zoeller M53 - 1/3 HP Cast Iron Primary/Backup Sump Pump w/ Vertical Float Switch + Auxillary Unit, Battery & Check Valve
Model: M53KIT
$1,038.24
Backordered
Estimated Availability October 02, 2018
Notify Me When In-Stock
Free Shipping
Free Lift Gate Service -
Add-Ons
Free Shipping$1,038.24Buy Now
Free Freight$1,038.24Visit Site
Backordered
Estimated Availability October 02, 2018
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Back-up Sump Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch
Style
Back-up
GPH
2680 Gallons
Switch Type
Vertical
Features
Features

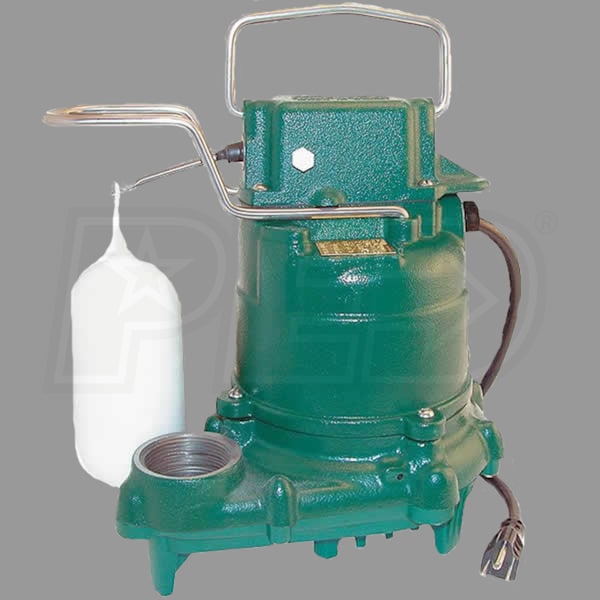

  • Zoeller M53 - 1/3 HP Cast Iron Automatic Submersible Sump Pump
  • 2680 GPH
  • No Sheet Metal Parts To Corrode
  • Thermally Protected, Permanent Split Capacitor Motor
  • Carbon & Ceramic Shaft Seal
  • Powder Coated Epoxy Finish
  • Clog-Resistant Design
  • Capable of passing 1/2" diameter solids

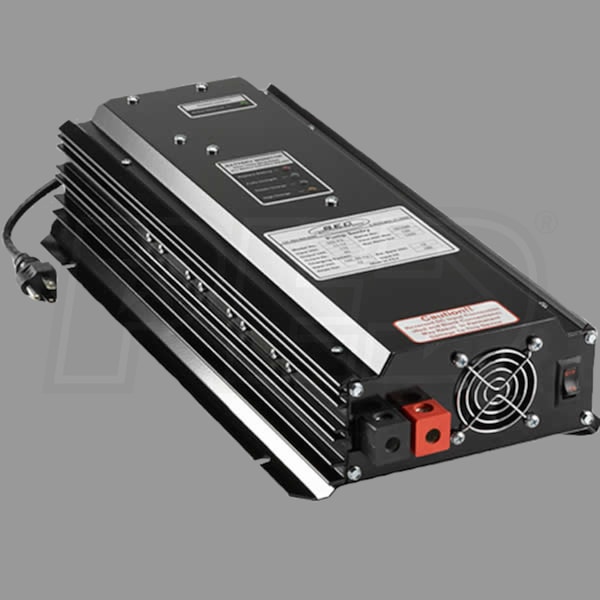

  • SEC America - 1200 Watt - Sump Pump Battery Backup
  • Automatic Power Transfer and Recharge
  • Battery Monitor
  • Output Power Indicator

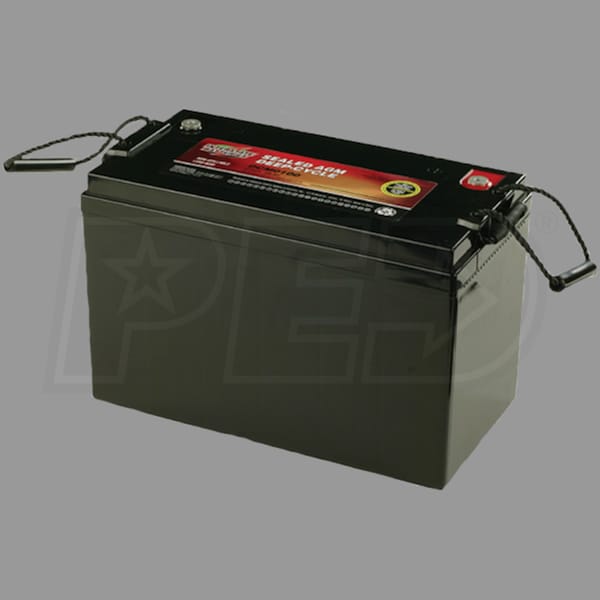

  • Interstate Batteries 12V Maintenance Free Deep Cycle 100AH AGM Battery
  • 100-Amp Hour 12-Volt Maintenance-Free AGM Battery
  • Absorbent Glass Mat (AGM)
  • One-Way Pressure Relief Valve
  • Upright, side or end mounting recommended
  • Capacity:
  • 20 Hour Rate (5.2A) 104AH •10 Hour Rate (9.5A) 95AH •5 Hour Rate (15.2A) 76AH •1 Hour Rate (52A) 52AH

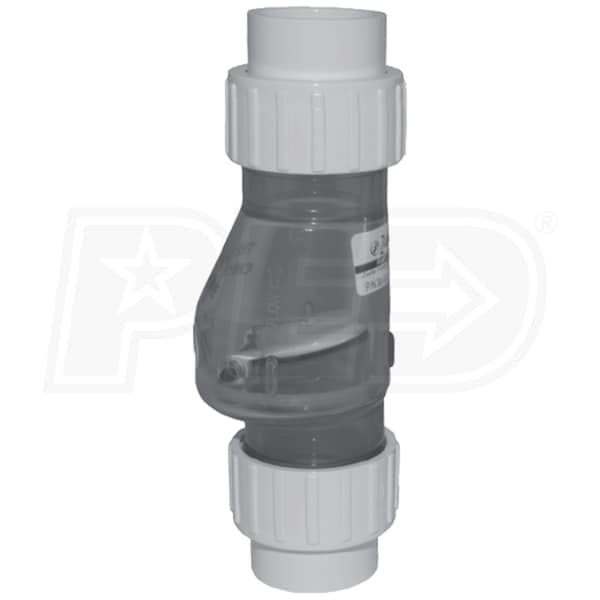

  • Camis CC00SL15 - 1-1/2" Clear Silent Check Valve

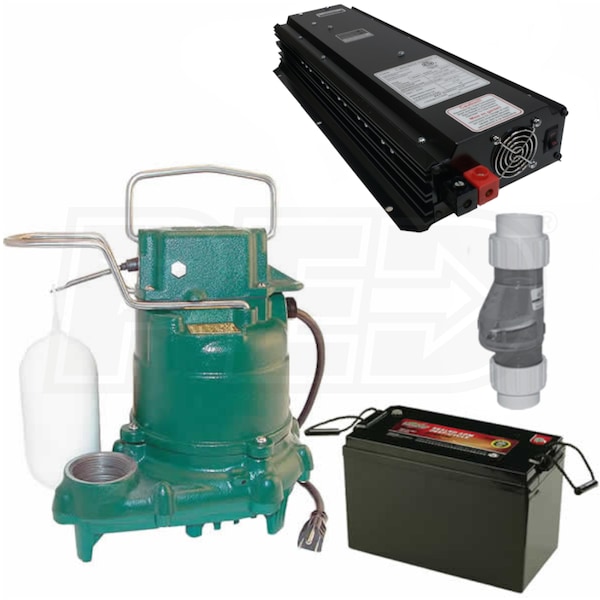

  • Product Includes
    • (1) SEC America Pump Sentry - 1200 Watt - Primary Sump/Sewage Pump Backup Auxiliary Power System Supports up to 1/2 HP Pumps (822PS)
    • (1) Interstate Batteries 12V Maintenance Free Deep Cycle 100AH AGM Battery (DCM0100)
    • (1) Zoeller M53 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch (M53)
    • (1) Camis CC00SL15 - 1-1/2" Clear Silent Check Valve (CC00SL15)
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Battery Included
Yes
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
3
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Consumer Warranty
3 Years
822PS Specifications
Base
Base Material
Aluminum
Motor
Battery Included
No
Rated Capacity
1200 Watts
Pump
Housing Material
Aluminum
Overview
Weight
12 Pounds
Dimensions
18.5L x 8.4W x 3.5H
Consumer Warranty
2 Years
DCM0100 Specifications
Overview
Weight
65 Pounds
Product Length
12 Inches
Product Width
6.8 Inches
Product Height
8.3 Inches
Consumer Warranty
1 Year
53-0001 Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
0.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25 Inches
Float Off
3 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
22 Pounds
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
Consumer Warranty
3 Years
CC00SL15 Specifications
Pump
Discharge Port Size
1-1/2 Inch
Overview
Weight
2 Pounds
Product Length
11-1/4 Inches
Product Width
2-7/8 Inches
Style
Back-up Sump Pumps
GPH
2680
Gallons
Switch Type
Vertical Float Switch
Style
Back-up
GPH
2680 Gallons
Switch Type
Vertical
Features
Features
  • Zoeller M53 - 1/3 HP Cast Iron Automatic Submersible Sump Pump
  • 2680 GPH
  • No Sheet Metal Parts To Corrode
  • Thermally Protected, Permanent Split Capacitor Motor
  • Carbon & Ceramic Shaft Seal
  • Powder Coated Epoxy Finish
  • Clog-Resistant Design
  • Capable of passing 1/2" diameter solids
  • SEC America - 1200 Watt - Sump Pump Battery Backup
  • Automatic Power Transfer and Recharge
  • Battery Monitor
  • Output Power Indicator
  • Interstate Batteries 12V Maintenance Free Deep Cycle 100AH AGM Battery
  • 100-Amp Hour 12-Volt Maintenance-Free AGM Battery
  • Absorbent Glass Mat (AGM)
  • One-Way Pressure Relief Valve
  • Upright, side or end mounting recommended
  • Capacity:
  • 20 Hour Rate (5.2A) 104AH •10 Hour Rate (9.5A) 95AH •5 Hour Rate (15.2A) 76AH •1 Hour Rate (52A) 52AH
  • Camis CC00SL15 - 1-1/2" Clear Silent Check Valve
  • Product Includes
    • (1) SEC America Pump Sentry - 1200 Watt - Primary Sump/Sewage Pump Backup Auxiliary Power System Supports up to 1/2 HP Pumps (822PS)
    • (1) Interstate Batteries 12V Maintenance Free Deep Cycle 100AH AGM Battery (DCM0100)
    • (1) Zoeller M53 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch (M53)
    • (1) Camis CC00SL15 - 1-1/2" Clear Silent Check Valve (CC00SL15)
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Battery Included
Yes
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
3
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Consumer Warranty
3 Years
822PS Specifications
Base
Base Material
Aluminum
Motor
Battery Included
No
Rated Capacity
1200 Watts
Pump
Housing Material
Aluminum
Overview
Weight
12 Pounds
Dimensions
18.5L x 8.4W x 3.5H
Consumer Warranty
2 Years
DCM0100 Specifications
Overview
Weight
65 Pounds
Product Length
12 Inches
Product Width
6.8 Inches
Product Height
8.3 Inches
Consumer Warranty
1 Year
53-0001 Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
0.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25 Inches
Float Off
3 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
22 Pounds
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
Consumer Warranty
3 Years
CC00SL15 Specifications
Pump
Discharge Port Size
1-1/2 Inch
Overview
Weight
2 Pounds
Product Length
11-1/4 Inches
Product Width
2-7/8 Inches
Product Specs
+
Specifications
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Battery Included
Yes
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25
Float Off
3
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 hp
Overview
Consumer Warranty
3 Years
822PS Specifications
Base
Base Material
Aluminum
Motor
Battery Included
No
Rated Capacity
1200 Watts
Pump
Housing Material
Aluminum
Overview
Weight
12 Pounds
Dimensions
18.5L x 8.4W x 3.5H
Consumer Warranty
2 Years
DCM0100 Specifications
Overview
Weight
65 Pounds
Product Length
12 Inches
Product Width
6.8 Inches
Product Height
8.3 Inches
Consumer Warranty
1 Year
53-0001 Specifications
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9.7
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Starting Amps
25.9
Pump
Housing Material
Cast Iron
Solids Handling Size
0.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Float On
7.25 Inches
Float Off
3 Inches
Manual Override
No
Engine
Horsepower
.33 hp
Overview
Weight
22 Pounds
Product Length
10.2 Inches
Product Width
7.5 Inches
Product Height
10.2 Inches
Consumer Warranty
3 Years
CC00SL15 Specifications
Pump
Discharge Port Size
1-1/2 Inch
Overview
Weight
2 Pounds
Product Length
11-1/4 Inches
Product Width
2-7/8 Inches
