Zoeller E98-0004 - 1/2 HP Cast Iron Submersible Sump / Effluent Pump (Non-Automatic) (230V)

Model:

98-0004

Write A Review
$390.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

Zoeller E98-0004 - 1/2 HP Cast Iron Submersible Sump / Effluent Pump (Non-Automatic) (230V)
Zoeller E98-0004 - 1/2 HP Cast Iron Submersible Sump / Effluent Pump (Non-Automatic) (230V)
Model: 98-0004
$390.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

4320 Gallons

Switch Type

None



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 230V ***NON-AUTOMATIC - Requires Float Switch***
  • Submersible Cast Iron Sump / Effluent Pump
  • Offers years of reliable, trouble-free operation
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 1/2 HP Thermally Protected, Permanent Split Capacitor Motor (230V
  • Oil-filled and hermetically sealed to prevent overheating
  • Carbon & Ceramic Shaft Seal
  • Assures maximum protection for extended pump life
  • Powder Coated Epoxy Finish
  • Provides a corrosion resistant exterior
  • Clog-Resistant Design
  • No screen to interfere with flowing debris
  • Capable of passing 1/2" diameter solids
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

98-0004
specs product image PID-80190
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
230 Volt
Running Amps
4.7
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
No Switch

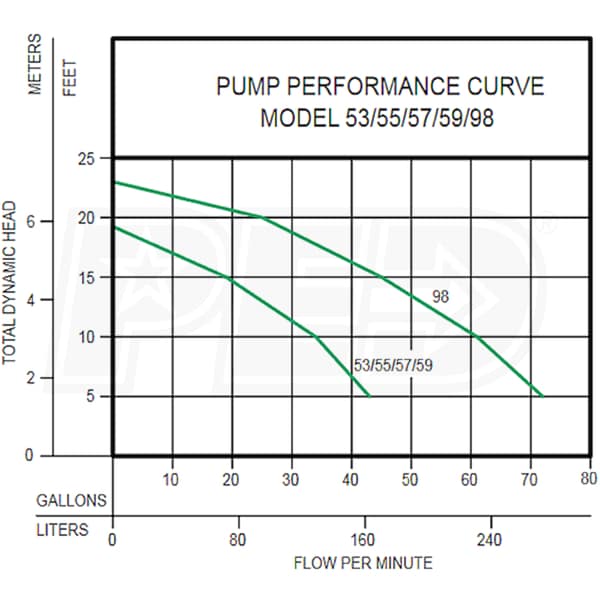

GPH @ 0 feet
4320
GPH @ 5 feet
4320
GPH @ 10 feet
3660
GPH @ 15 feet
2700
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
38 Pounds
Consumer Warranty
3 Years
Product Length
10.125 Inches
Product Width
7.875 Inches
Product Height
12.06 Inches
UPC
053514029494
