Zoeller 912-0020 - 1/2 HP Cast Iron Preassembled Sewage Pump System (LA Code)
Model: 912-0020
+
Share This Product
-
Product Description
-
5Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

GPH
7680
Gallons
Switch Type

Style
Sewage Pump
GPH
7680 Gallons
Switch Type
Piggy-Back Tether
Features
Features

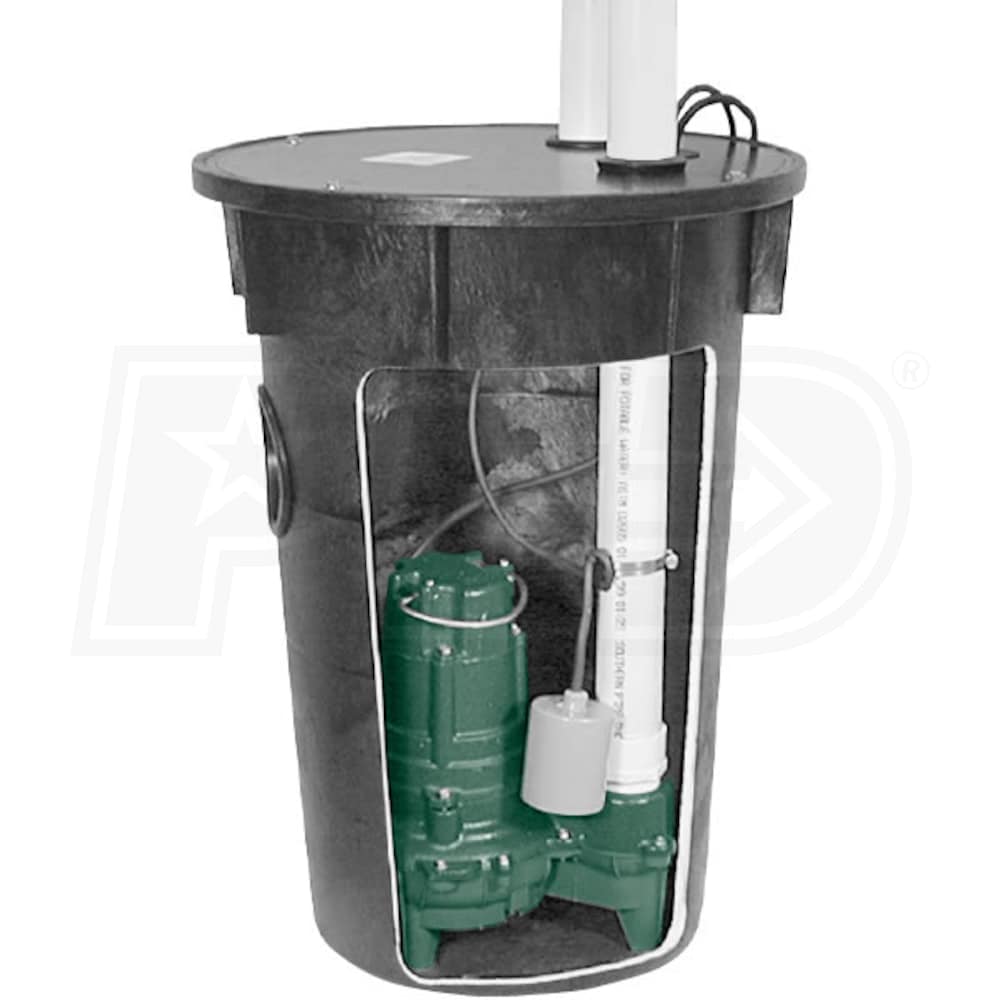

- ***Please Note - Image Is Only Example of System***
- Actual Basin Is Fiberglass
- Zoeller Job Ready Simplex Sewage Package System (LA Code)
- Easy Installation, Saves Labor & Reduces Installation Errors
- Waste-Mate BN266 Sewage/Effluent Pump
- A great pump that provides year of reliable operation
- Variable-Level Tether Float Switch w/ Piggyback Plug
- Fully-Adjustable, ideal for larger basins & longer pump cycles
- Durable Cast Iron Design w/ Powder Coated Epoxy Finish
- Engineered plastic pump bases prevents corrosion on pump legs
- Thermally Protected, 1/2 HP Permanent Split Capacitor Motor
- Oil-filled and hermetically sealed to prevent overheating
- Non-Clogging Vortex Plastic Impeller Design w/ Metal Inserts
- Provide added strength & Capable of passing 2" spherical solids
- High-Quality Components
- Carbon/Ceramic Shaft Seal & Stainless steel screws, guard, handle, arm & seal assembly
- 18" x 30" Fiberglass Sewage Basin & Cover (10' Stack, LA Code)***
- Withstands water pressure from a 10' vertical pipe (stack) w/o leaking
- 4" Cast Iron Hub (LA Code) for easy connection to cast iron drain pipes
- 30" (2") PVC Discharge Pipe for easy connection to existing plumbing
- *Note* Check Valves & Vent Pipe Are Not Included
- 3-Year Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
79 Pounds
Consumer Warranty
3 Years
UPC
053514026035
Style

GPH
7680
Gallons
Switch Type

Style
Sewage Pump
GPH
7680 Gallons
Switch Type
Piggy-Back Tether
Features
Features
- ***Please Note - Image Is Only Example of System***
- Actual Basin Is Fiberglass
- Zoeller Job Ready Simplex Sewage Package System (LA Code)
- Easy Installation, Saves Labor & Reduces Installation Errors
- Waste-Mate BN266 Sewage/Effluent Pump
- A great pump that provides year of reliable operation
- Variable-Level Tether Float Switch w/ Piggyback Plug
- Fully-Adjustable, ideal for larger basins & longer pump cycles
- Durable Cast Iron Design w/ Powder Coated Epoxy Finish
- Engineered plastic pump bases prevents corrosion on pump legs
- Thermally Protected, 1/2 HP Permanent Split Capacitor Motor
- Oil-filled and hermetically sealed to prevent overheating
- Non-Clogging Vortex Plastic Impeller Design w/ Metal Inserts
- Provide added strength & Capable of passing 2" spherical solids
- High-Quality Components
- Carbon/Ceramic Shaft Seal & Stainless steel screws, guard, handle, arm & seal assembly
- 18" x 30" Fiberglass Sewage Basin & Cover (10' Stack, LA Code)***
- Withstands water pressure from a 10' vertical pipe (stack) w/o leaking
- 4" Cast Iron Hub (LA Code) for easy connection to cast iron drain pipes
- 30" (2") PVC Discharge Pipe for easy connection to existing plumbing
- *Note* Check Valves & Vent Pipe Are Not Included
- 3-Year Warranty
Specifications
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
79 Pounds
Consumer Warranty
3 Years
UPC
053514026035
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
7680
GPH @ 5 feet
7680
GPH @ 10 feet
5340
GPH @ 15 feet
3000
GPH @ 20 feet
600
Discharge Port Size
2 Inch
Built-in check Valve
No
Manual Override
Yes
Engine
Horsepower
.5 hp
Overview
Weight
79 Pounds
Consumer Warranty
3 Years
UPC
053514026035
