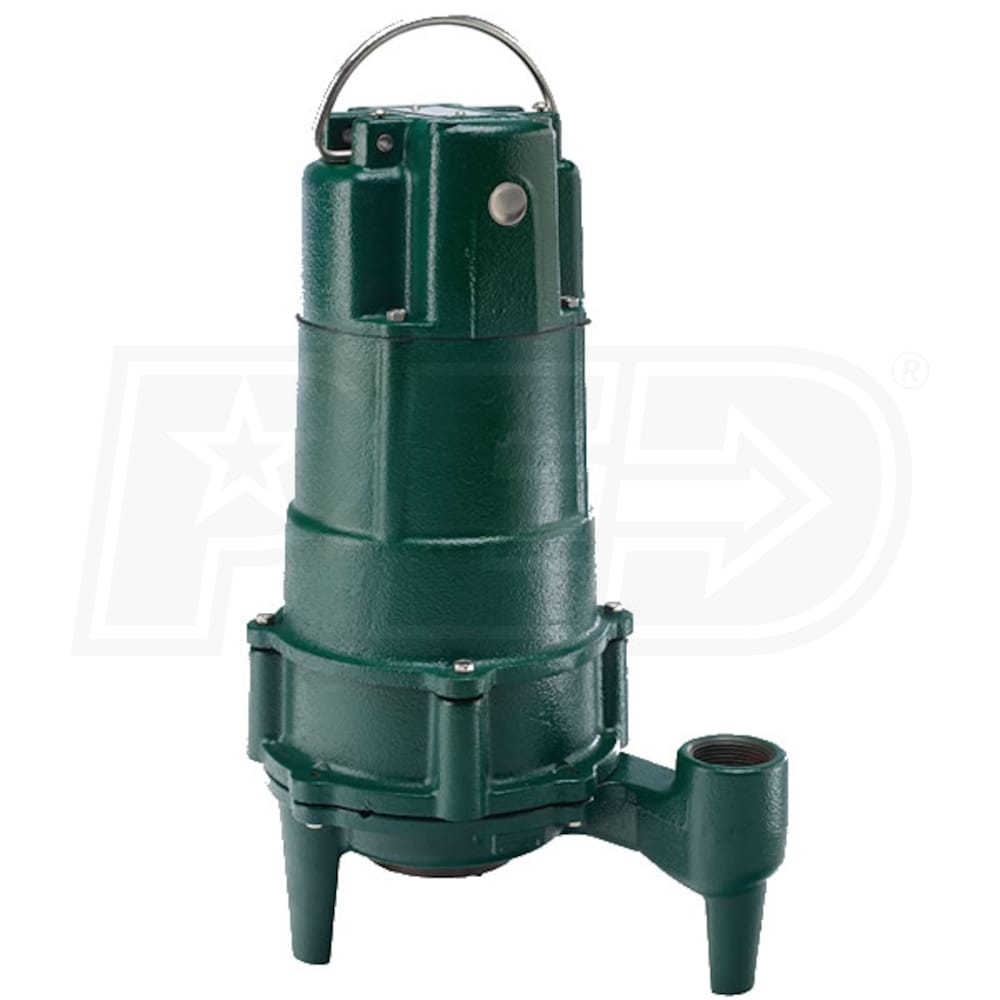

Zoeller N805 - 3/4 HP Cast Iron Residential Grinder Pump (1-1/4") (Non-Automatic)
Model: 805-0002
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(1)
Write a Review
$898.00
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-3 Business Days
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States

Free Shipping$898.00Buy Now
Free Shipping$898.00Visit Site
Share
  • Product Description
  • 1
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Sewage Pumps
GPH
2400
Gallons
Switch Type
None
Style
Sewage Pump
GPH
2400 Gallons
Switch Type
None
Features
Features
  • ***NON-AUTOMATIC - Requires Float Switch***
  • Zoeller Shark® N805 - Residential Grinder Pump
  • World's first integral automatic grinder; Up to 45' Max Head
  • 3/4 HP Thermally Protected Motor (115V - 3400 RPM)
  • Oil-filled & hermetically sealed to prevent overheating
  • Stainless Steel Tri-Slice® Cutter Technology
  • 3 Independent cutting channels provide over 250,000 cuts/min
  • Cast Iron Motor Housing & Pump Housing
  • Provides heat dissipation for extended life cycle & durability
  • Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • 1-1/4" NPT Discharge
  • Easily connects to your current discharge line
  • Stainless Steel Screws, Bolts & Lifting Handle
  • Designed to minimize corrosion in hard environments
  • Makes this pump easy to install, service and remove
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 3-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
No Switch
GPH @ 0 feet
2400
GPH @ 5 feet
2400
GPH @ 10 feet
2220
GPH @ 15 feet
1980
GPH @ 20 feet
1740
Discharge Port Size
1-1/4 Inch
Built-in check Valve
No
Engine
Horsepower
.75 hp
Overview
Weight
65 Pounds
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
8.9 Inches
Product Height
17.25 Inches
UPC
053514365387
