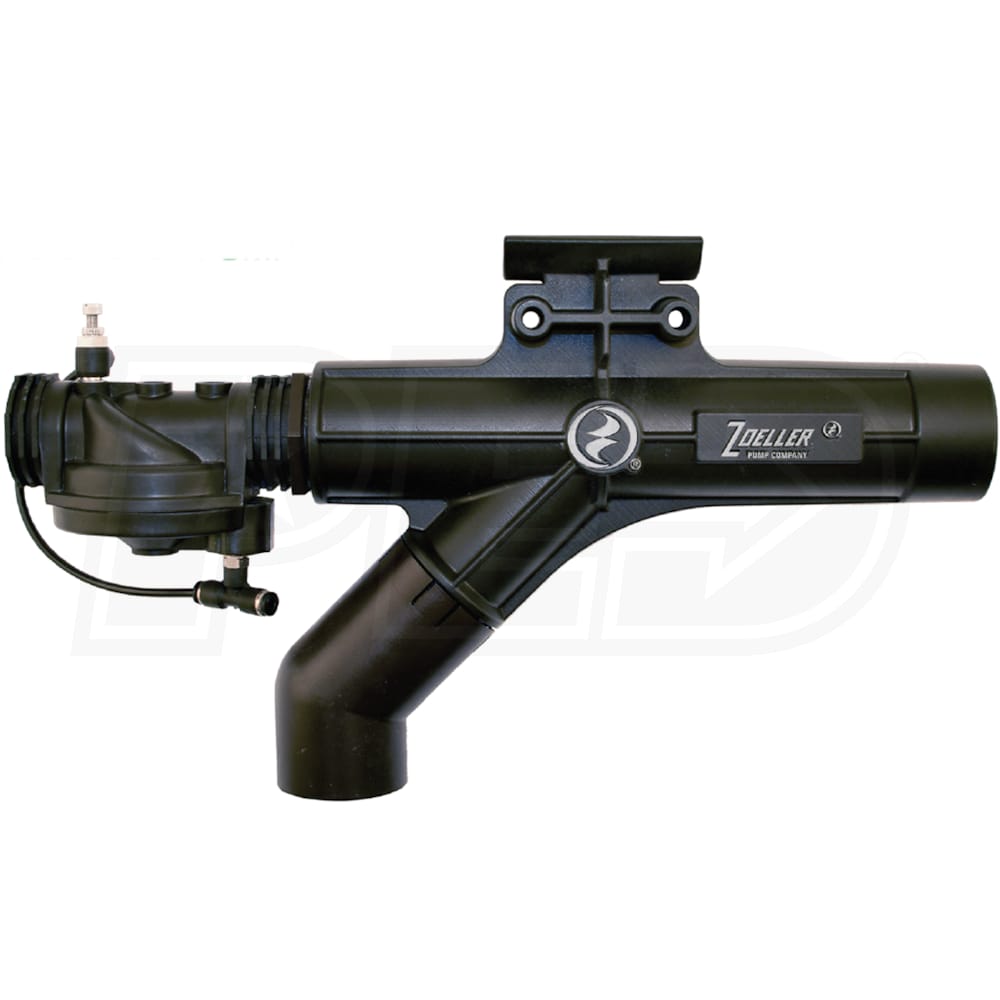

Zoeller 540-0005 - 540 FLEX™ Water-Powered Emergency Backup Sump Pump System (1104 GPH @ 10')
Model: 540-0005
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$180.00
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 27th
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Free Shipping$180.00Buy Now
Free Shipping$180.00Visit Site
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Back-up Sump Pumps
GPH
1104
Gallons
Switch Type
Vertical Float Switch
Style
Back-up
GPH
1104 Gallons
Switch Type
Vertical
Features
Features
  • 540 FLEX™ Water-Powered Emergency Backup Sump Pump System
  • Provides basement and crawlspace protection
  • No Battery - No Electricity Required
  • Works during power outages or high water events
  • How It Works
  • Powered by your municipal water supply
  • Requires an uninterrupted water source to operate
  • Will NOT work with homes supplied by well pumps
  • Water Pressure Operated
  • Water under pressure will flow through the 540 FLEX™
  • Creates a vacuum and causes the water to be drawn out
  • Fully Automatic Design
  • Removes 2 gallons of sump water per 1 gallon used
  • Accepts 40 PSI up to 80PSI Inlet Supply Pressure
  • Performance varies w/ inlet water source/pressure & pumping head
  • 3/4 " NPT Water Inlet Connection & 1-1/2" Discharge
  • Compatible with most residential plumbing systems
  • Horizontal or Vertical Installation
  • Small footprint design works in 18" x 22" pits
  • Includes push-to-connect fitting (field-installed)
  • *Not Intended For Use As A Primary Water Removal Unit
  • Please Note - All Output Specified Is Based On 60 PSI (Inlet)
  • 3-Year Warranty
Specifications
Pump
Inlet Diameter
3/4"
Handles Solids
No
Total Head Lift
30 Feet
Float Type
Vertical Float
GPH @ 0 feet
1104
GPH @ 5 feet
1104
GPH @ 10 feet
1104
GPH @ 15 feet
900
GPH @ 20 feet
666
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Max Head
34 Feet
Overview
Weight
9 Pounds
Consumer Warranty
3 Years
UPC
053514447113
Style
Back-up Sump Pumps
GPH
1104
Gallons
Switch Type
Vertical Float Switch
Style
Back-up
GPH
1104 Gallons
Switch Type
Vertical
Features
Features
  • 540 FLEX™ Water-Powered Emergency Backup Sump Pump System
  • Provides basement and crawlspace protection
  • No Battery - No Electricity Required
  • Works during power outages or high water events
  • How It Works
  • Powered by your municipal water supply
  • Requires an uninterrupted water source to operate
  • Will NOT work with homes supplied by well pumps
  • Water Pressure Operated
  • Water under pressure will flow through the 540 FLEX™
  • Creates a vacuum and causes the water to be drawn out
  • Fully Automatic Design
  • Removes 2 gallons of sump water per 1 gallon used
  • Accepts 40 PSI up to 80PSI Inlet Supply Pressure
  • Performance varies w/ inlet water source/pressure & pumping head
  • 3/4 " NPT Water Inlet Connection & 1-1/2" Discharge
  • Compatible with most residential plumbing systems
  • Horizontal or Vertical Installation
  • Small footprint design works in 18" x 22" pits
  • Includes push-to-connect fitting (field-installed)
  • *Not Intended For Use As A Primary Water Removal Unit
  • Please Note - All Output Specified Is Based On 60 PSI (Inlet)
  • 3-Year Warranty
Specifications
Pump
Inlet Diameter
3/4"
Handles Solids
No
Total Head Lift
30 Feet
Float Type
Vertical Float
GPH @ 0 feet
1104
GPH @ 5 feet
1104
GPH @ 10 feet
1104
GPH @ 15 feet
900
GPH @ 20 feet
666
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Max Head
34 Feet
Overview
Weight
9 Pounds
Consumer Warranty
3 Years
UPC
053514447113
Product Specs
+
Specifications
Pump
Inlet Diameter
3/4"
Handles Solids
No
Total Head Lift
30 Feet
Float Type
Vertical Float
GPH @ 0 feet
1104
GPH @ 5 feet
1104
GPH @ 10 feet
1104
GPH @ 15 feet
900
GPH @ 20 feet
666
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Max Head
34 Feet
Overview
Weight
9 Pounds
Consumer Warranty
3 Years
UPC
053514447113
