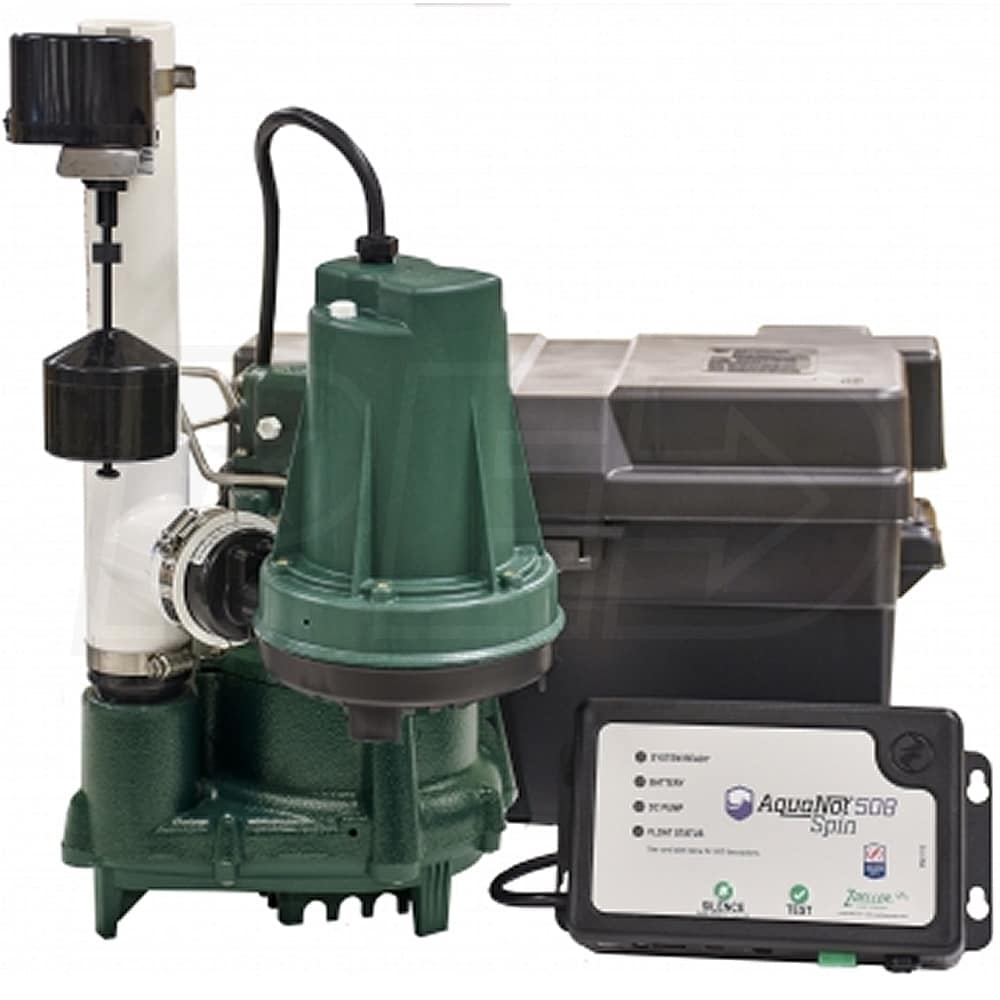

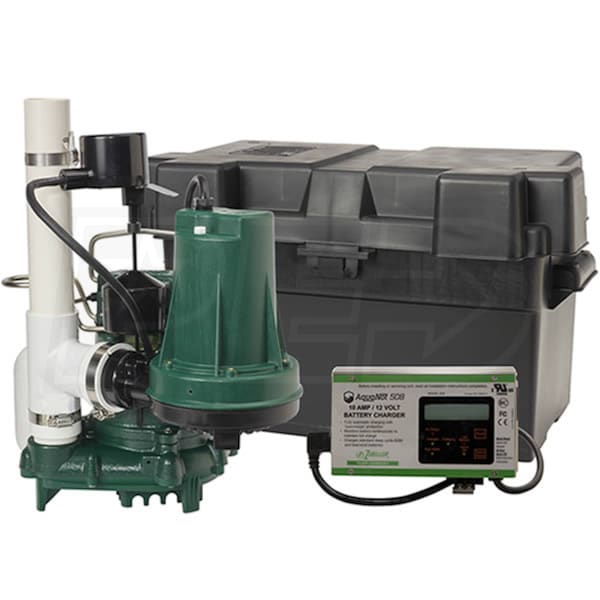

Zoeller ProPack98 Spin - 1/2 HP Combination Primary & Backup Sump Pump System

Name: Zoeller ProPack98 Spin - 1/2 HP Combination Primary & Backup Sump Pump System
Brand: Zoeller
SKU: 14672
Price: 924.75 USD
Availability: InStock
Rating: 4.46 (69 reviews)

Model:

508-0007

Write A Review

$924.75

Free Shipping

*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.

In-Stock

Ships Monday, Apr 3rd

Shipping to60601

Notification Type

Zoeller ProPack98 Spin - 1/2 HP Combination Primary & Backup Sump Pump System

Model: 508-0007

$924.75

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Jim, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Style

Combo

GPH

4320 Gallons

Switch Type

Vertical

Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Zoeller Pro Pak 98 - Primary & Backup Sump Pump System
Simply attach inlcluded discharge pipe & you're ready to install
1/2 HP Cast Iron Primary Pump w/ Vertical Float Switch
Engineered thermoplastic base for extended pump life
Oil-filled and hermetically sealed to prevent overheating
12-Volt, Highly Efficient Backup Sump Pump (6' Leads)
Non-corrosive design w/ Integrated Check Valve & Pump Legs
Pumps 2340 gallons-per-hour @ 5’ lift (or 1800 GPH @ 10’)
Built-In Alarms
High Water, Low Battery & Reverse Polarity
10-Amp Battery Charger & Control Box w/ LED Screen
Self-contained design w/ Battery burnout & overcharge protection
Displays battery voltage & important system information
LED Light Indicators & Buttons
For system status; AC Power, Charged, Charging & Low Battery
Plus High Water, Alarm Off button & Scroll display button
Compact, low-voltage Vertical Float Switch For Backup Pump
Corrosion-Resistant Box Fits Group 27, 29 or 31 Batteries
Furnished With All Required Fittings - BATTERY SOLD SEPARATELY
3-Year Warranty
For Indoor Use Only

California residents see

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

For more information go to: www.p65Warnings.ca.gov

Specifications

508-0007

General Information

Product Category

Sump Pump

Base

Base Material

Thermoplastic

Min Sump Basin Size

18 Inch

Motor

Voltage

12 Volt DC/120 Volt AC

Battery Included

Thermal Protection

Yes

Power Cord Length

9 Feet

Oil Free Motor

Pump

Housing Material

Cast Iron

Solids Handling Size

.5 inch

Float Type

Vertical Float

GPH @ 0 feet

4320

GPH @ 5 feet

4320

GPH @ 10 feet

3660

GPH @ 15 feet

2700

GPH @ 20 feet

1500

Backup GPH @ 0 feet

2340

Discharge Port Size

1-1/2 Inch

Check Valve Included

Yes

Float On

9.5 Inches

Float Off

3 Inches

Manual Override

Backup GPH @ 5 feet

2340

Backup GPH @ 10 feet

1800

Backup GPH @ 15 feet

1200

Backup GPH @ 20 feet

360

Engine

Horsepower

.5 hp

Overview

Product Category

Sump Pump

Assembly Required

Yes

Weight

43 Pounds

Consumer Warranty

3 Years

UPC

053514348762

Reviews

(69)

Zoeller 508-0007 Reviews & Ratings

Product Q&A

(3)

Product Questions Answered by Jim, the Sump Pump Expert

The description says that it requires an 18-inch sump basin. Our basin is 18 inches in diameter at the top but slopes down to 16 inches at the bottom. Will this model fit?

Mason M.

from Ohio

August 30, 2018

Do I need this check valve with the 508-0007 pump system or will the check valves built into it do the same thing? My current sump pump installation has a check valve above the pump just above the pit level. There is also a small hole drilled into the pipe between the sump pump and the current check valve. Will the 508 system need this hole also? I'm not sure what the hole is for, it just sprays a bit while the pump is running and then lets this section of pipe drain. The instructions included with the 508 don't mention either of these features, I just wanted to double check with you before I eliminate them.

Brad T.

from Utah

February 07, 2017

Answer

The Zoeller 508-0007 ProPak98 does include all check valves needed, so you can remove the check valve that you currently have in place. Having more than the required or needed check valves, will add more friction loss which equates to reduced flow or GPM and could pose more issues down the road as the check valve ages and starts to leak or fail. The hole that you refer to is most likely a weep hole in your discharge pipe. The "weep" hole as it is called should always be drilled in your discharge pipe to prevent an air lock. This is true in sump and sewage applications. Air locking on a sump pump happens when there is air between the pump and the check valve of the discharge line. The trapped air prevents the impeller from drawing in enough fluid to open the check valve to allow discharge.

The weight of the fluid on the topside of the check valve keeps it closed. The problem is often noticed after the initial use when the pit has had time to dry out during a dry spell. When it gets water in the pit again, the air lock condition shows up. The pump runs due to the float switch being raised, but can't eject the water because of the air lock condition. Due to the design of the ProPak combo system and the placement of their check valves, this hole is not required.

Was this answer helpful?

Yes

I have no experience with battery back-up systems but I'm considering this system for purchase. It does not include a battery. What type and size battery is optimally recommended for this system?

Kevin

from New York

April 08, 2015

Answer

The Zoeller 508 Battery Backup Sump Pump System battery box will accept all group size 27, 29 and 31 batteries. This includes wet cell and maintenance free batteries. The larger the battery AH (Amp Hour) or CCA (Cold Cranking Amps), the longer runtime your system will realize. That said, the system comes with a ONE year warranty. IF you purchase a Zoeller Aquanot WET CELL BATTERY or MAINTENANCE FREE BATTERY at time of purchase, that system warranty will be increased to THREE years.

If you have any other questions, please let me know.

Was this answer helpful?

Yes
