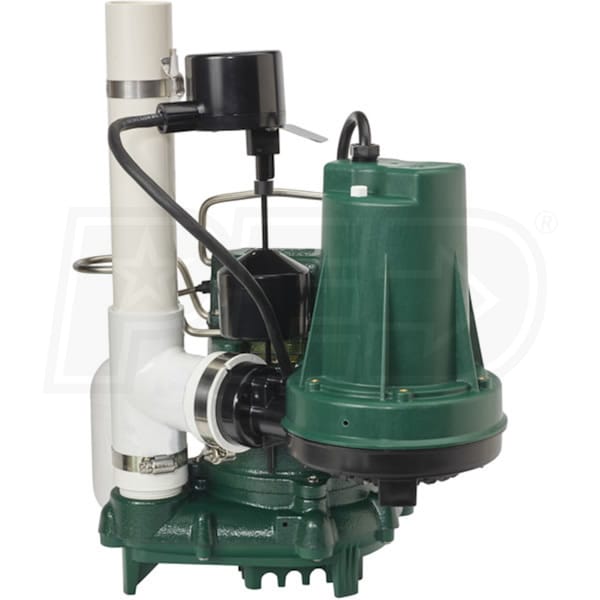

Zoeller ProPack53 Spin - 1/3 HP Combination Primary & Backup Sump Pump System
Model:
508-0006
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Combo
GPH
2680 Gallons
Switch Type
Vertical
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

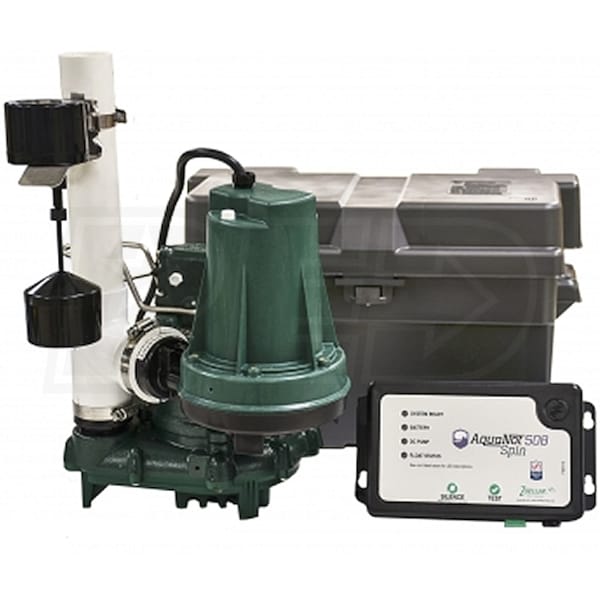

- Zoeller Pro Pak 53 Spin - Primary & Backup Sump Pump System
- Simply attach inlcluded discharge pipe & you're ready to install
- 1/3 HP Cast Iron Primary Pump w/ Vertical Float Switch
- Engineered thermoplastic base for extended pump life
- Oil-filled and hermetically sealed to prevent overheating
- 12-Volt, Highly Efficient Backup Sump Pump (6' Leads)
- Pumps 2340 gallons-per-hour @ 5’ lift (or 1800 GPH @ 10’)
- Non-corrosive design w/ Integrated Check Valve & Pump Legs
- Built-In Alarms
- High Water, Low Battery & Reverse Polarity
- 10-Amp Battery Charger & Control Box
- Self-contained design w/ Battery burnout & overcharge protection
- LED Light Indicators & Buttons
- For system status; AC Power, Charged, Charging & Low Battery
- Plus High Water, Alarm Off button
- Compact, low-voltage Vertical Float Switch For Backup Pump
- Corrosion-Resistant Box Fits Group 27, 29 or 31 Batteries
- Furnished With All Required Fittings - BATTERY SOLD SEPARATELY
- 3-Year Warranty
- For Indoor Use Only
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
508-0006
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
12 Volt DC/120 Volt AC
Battery Included
No
Thermal Protection
Yes
Power Cord Length
9 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
Vertical Float
GPH @ 0 feet
2680
GPH @ 5 feet
2680
GPH @ 10 feet
2040
GPH @ 15 feet
1140
Backup GPH @ 0 feet
2340
Discharge Port Size
1-1/2 Inch
Check Valve Included
Yes
Float On
7.25 Inches
Float Off
3 Inches
Manual Override
No
Backup GPH @ 5 feet
2340
Backup GPH @ 10 feet
1800
Backup GPH @ 15 feet
1200
Engine
Horsepower
.33 hp
Overview
Product Category
Sump Pump
Assembly Required
Yes
Weight
59 Pounds
Consumer Warranty
3 Years
Product Length
13.375 Inches
Product Width
10.0625 Inches
Product Height
17.25 Inches
UPC
053514348786
Reviews
(42)
Zoeller 508-0006 Reviews & Ratings
Product Q&A
(5)
Product Questions
Answered by Jim, the Sump Pump Expert
Does the back-up pump only engage when power is lost, or will it run if the primary pump can't keep up with the water inflow?
Kevin
from Wisconsin
January 14, 2021
Assuming deep cycle group size 31 (largest), what would be the run time for the Zoeller 1/3 hp submersible sump pump?
Harry N.
from Maryland
February 22, 2019
Hello. Can I hook up more than one battery to the Zoeller 508-0006 and the charger at once? Thanks!
Tom H.
from Wisconsin
June 13, 2017
Jim,
I'm interested in this product, I am wondering what the model number of the primary 110 V pump is. I have been doing some research on Zoeller pumps, and have found that some have periodic swich issues.
Brian
from New Jersey
July 03, 2016
I have no experience with battery back-up systems but I'm considering this system for purchase. It does not include a battery. What type and size battery is optimally recommended for this system?
Kevin
from New York
April 08, 2015
