Zoeller E270 - 1 HP Cast Iron Sewage Pump (Non-Automatic) 230V w/ 20' Cord
Model:
270-0004
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Sewage Pump
GPH
7920 Gallons
Switch Type
None
- ***NON-AUTOMATIC - Requires Float Switch or Controller***
- Submersible Sewage / Ejector Pump
- Ideal for above average sewage removal
- Powder Coated Epoxy Finish Cast Iron Pump & Motor Housing
- A durable, corrosion-resistant exterior for harsh conditions
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- 230V Thermally Protected 1 HP PSC Motor (3450 RPM)
- Oil-filled & hermetically sealed to prevent overheating w/ auto reset
- Non-Clogging Vortex Engineered Plastic Impeller
- Capable of passing up to 2" spherical solids
- Carbon/Ceramic Shaft Seal & Upper Sleeve/Lower Ball Bearings
- Assures maximum protection for extended pump life
- Engineered Thermoplastic Base
- No need to worry about a rusty base or pump leg again
- Neoprene Square Ring & Gasket
- Completely submersible, watertight and dust tight
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- PLEASE NOTE - Requires 230V Power (Min. 20A Breaker)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
270-0004
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Motor
Voltage
230 Volt
Running Amps
7.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch

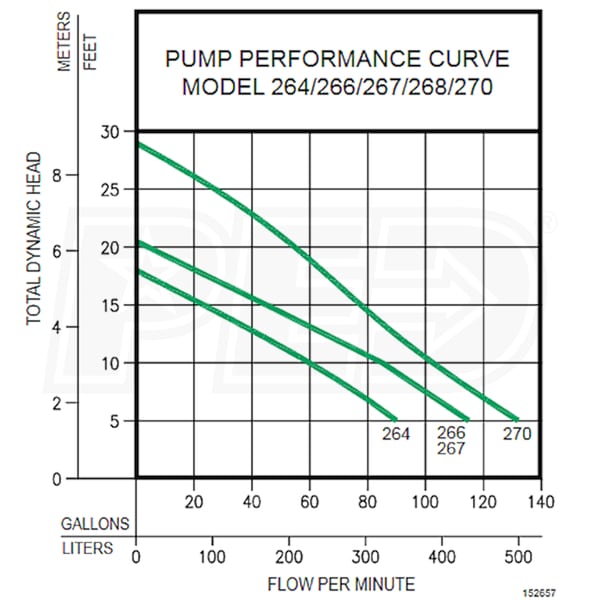

GPH @ 0 feet
7920
GPH @ 5 feet
7920
GPH @ 10 feet
6060
GPH @ 15 feet
4620
GPH @ 20 feet
3360
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
1 hp
Overview
Product Category
Sump Pump
Weight
48 Pounds
Consumer Warranty
1 Year
Product Width
13.06 Inches
Product Height
15 Inches
UPC
053514062132
