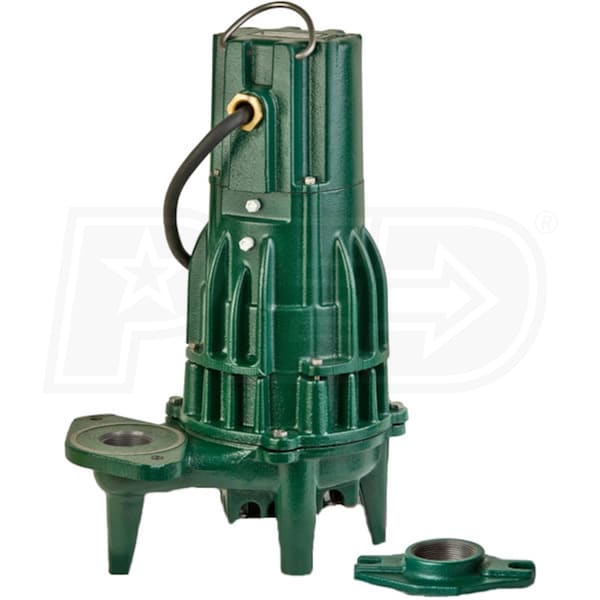

Zoeller E189 - 2 HP Cast Iron High Head Effluent Pump (Non-Automatic) (230V)

Zoeller E189 - 2 HP Cast Iron High Head Effluent Pump (Non-Automatic) (230V)
Model: 189-0004
$906.00
Ships in 3-4 Weeks
Free Shipping &
Tax-Free (Except IL)
Free ShippingNo Sales Tax* (Except IL)$906.00Buy Now
Free ShippingNo Sales Tax* (Except IL)$906.00Visit Site
No Sales Tax* (Except IL)$906.00Visit Site
Ships in 3-4 Weeks
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Effluent Sumps Pumps
GPH
8700
Gallons
Switch Type
None
Style
Effluent
GPH
8700 Gallons
Switch Type
None
Features
Features
  • ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Zoeller High Head Flow-Mate Effluent Pump (230V)
  • For septic tank, low pressure pipe (LPP) & enhanced flow STEP systems
  • Durable Cast Iron Construction (Base, Pump & Motor Housing
  • Corrosion-resistant powder coated epoxy finish
  • 2 HP Thermally Protected PSC Motor (3450 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
  • High Head Design (110' Shut-Off Head)
  • Can pump up to 960 GPH @ 100' head
  • Non-Clogging Bronze Vortex Impeller
  • Capable of passing 3/4" spherical solids
  • Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 1-1/2" NPT Discharge
  • Allows for easy connection to your discharge line
  • 20' Power Cord
  • UL Listed 3-wire neoprene cord and 230V plug
  • 1-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
17.1
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Engine
Horsepower
2 hp
Pump
Housing Material
Cast Iron
Impeller Material
Bronze
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
8700
GPH @ 5 feet
8700
GPH @ 10 feet
8400
GPH @ 20 feet
7830
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Overview
Weight
87 Pounds
Product Width
12.75 Inches
Product Height
19.3 Inches
Consumer Warranty
1 Year
UPC
053514016333
Style
Effluent Sumps Pumps
GPH
8700
Gallons
Switch Type
None
Style
Effluent
GPH
8700 Gallons
Switch Type
None
Features
Features
  • ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Zoeller High Head Flow-Mate Effluent Pump (230V)
  • For septic tank, low pressure pipe (LPP) & enhanced flow STEP systems
  • Durable Cast Iron Construction (Base, Pump & Motor Housing
  • Corrosion-resistant powder coated epoxy finish
  • 2 HP Thermally Protected PSC Motor (3450 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
  • High Head Design (110' Shut-Off Head)
  • Can pump up to 960 GPH @ 100' head
  • Non-Clogging Bronze Vortex Impeller
  • Capable of passing 3/4" spherical solids
  • Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 1-1/2" NPT Discharge
  • Allows for easy connection to your discharge line
  • 20' Power Cord
  • UL Listed 3-wire neoprene cord and 230V plug
  • 1-Year Limited Warranty
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
17.1
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Engine
Horsepower
2 hp
Pump
Housing Material
Cast Iron
Impeller Material
Bronze
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
8700
GPH @ 5 feet
8700
GPH @ 10 feet
8400
GPH @ 20 feet
7830
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Overview
Weight
87 Pounds
Product Width
12.75 Inches
Product Height
19.3 Inches
Consumer Warranty
1 Year
UPC
053514016333
Product Specs
+
Specifications
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt
Running Amps
17.1
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Engine
Horsepower
2 hp
Pump
Housing Material
Cast Iron
Impeller Material
Bronze
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
8700
GPH @ 5 feet
8700
GPH @ 10 feet
8400
GPH @ 20 feet
7830
Discharge Port Size
1-1/2 Inch
Built-in check Valve
No
Manual Override
Yes
Submersible
Yes
Overview
Weight
87 Pounds
Product Width
12.75 Inches
Product Height
19.3 Inches
Consumer Warranty
1 Year
UPC
053514016333
