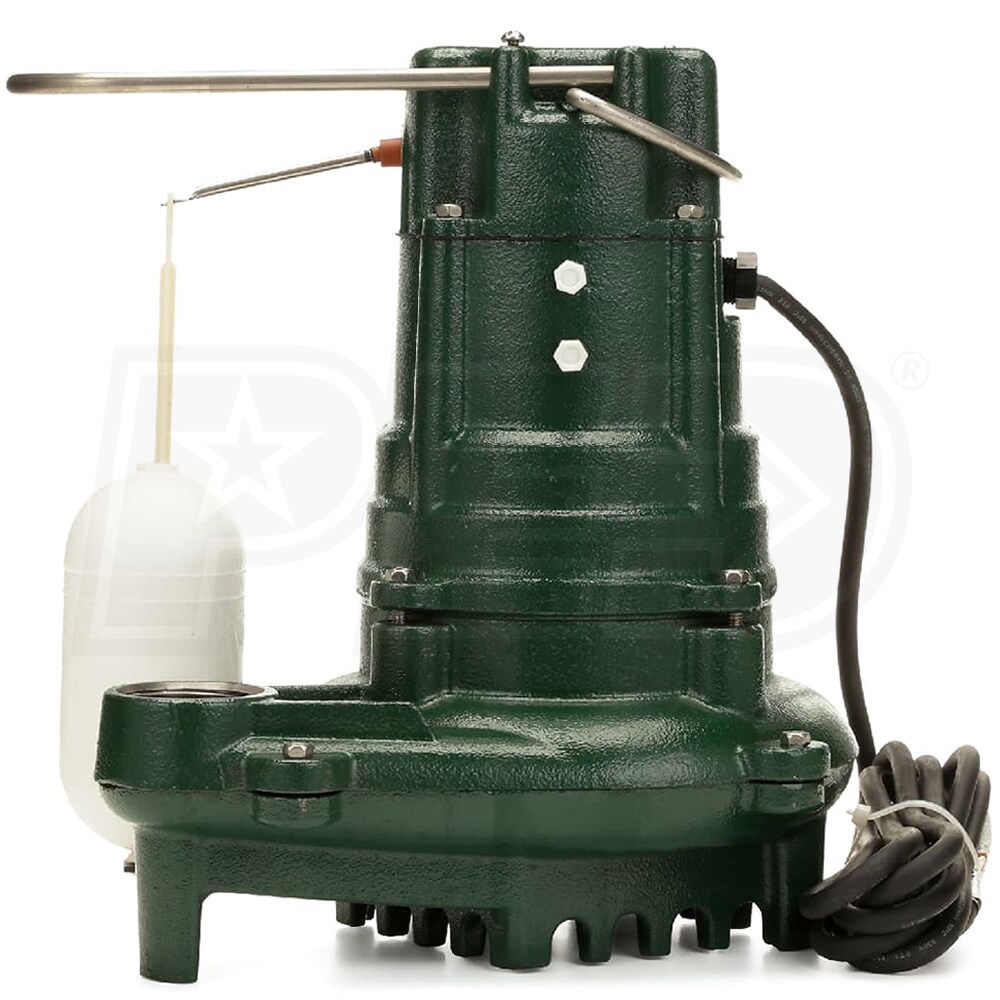

Zoeller M137 - 1/2 HP Cast Iron Effluent Pump w/ Vertical Float Switch
Model:
137-0001
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
5580 Gallons
Switch Type
Vertical
- Zoeller Flow-Mate Submersible Effluent Pump
- For septic tank, low pressure pipe (LPP) & enhanced flow step systems
- Mechanical Vertical Float Switch Allows For Automatic Operation
- Durable Cast Iron Construction (Pump Housing, Base & Impeller)
- Corrosion-resistant powder coated epoxy finish
- 1/2 HP Thermally Protected Motor (1750 RPM)
- Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
- Cast Iron Non-Clogging Vortex Impeller
- Passes 5/8" spherical solids - No screens to clog
- Carbon/Ceramic Shaft Seal & Upper/Lower Sleeve Bearings
- Assures maximum protection for extended pump life
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel screws, guard, handle, arm and seal assembly
- 1-1/2" NPT Discharge
- Allows for easy connection to your discharge line
- 10' Power Cord
- UL Listed 3-wire neoprene cord and plug
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
137-0001
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.7
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.625 inch
Handles Solids
Yes
Float Type
Vertical Float

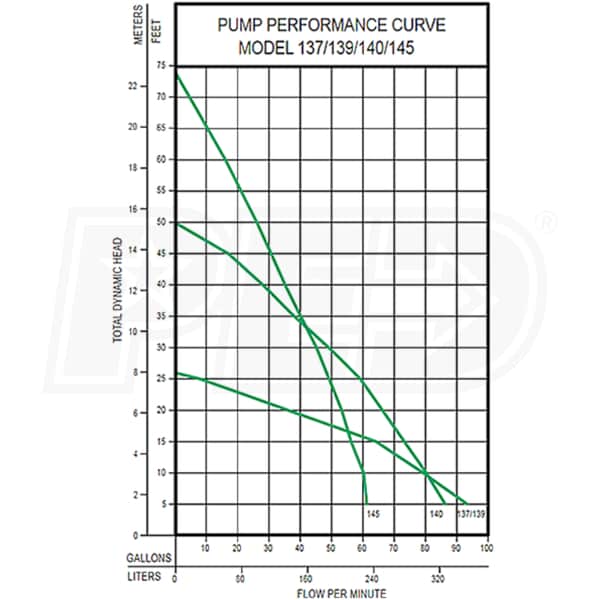

GPH @ 0 feet
5580
GPH @ 5 feet
5400
GPH @ 10 feet
4500
GPH @ 15 feet
3480
GPH @ 20 feet
2160
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
10 Inches
Float Off
2.75 Inches
Manual Override
No
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
48 Pounds
Consumer Warranty
3 Years
Product Length
12.25 Inches
Product Width
10.93 Inches
Product Height
12.75 Inches
UPC
053514013943
