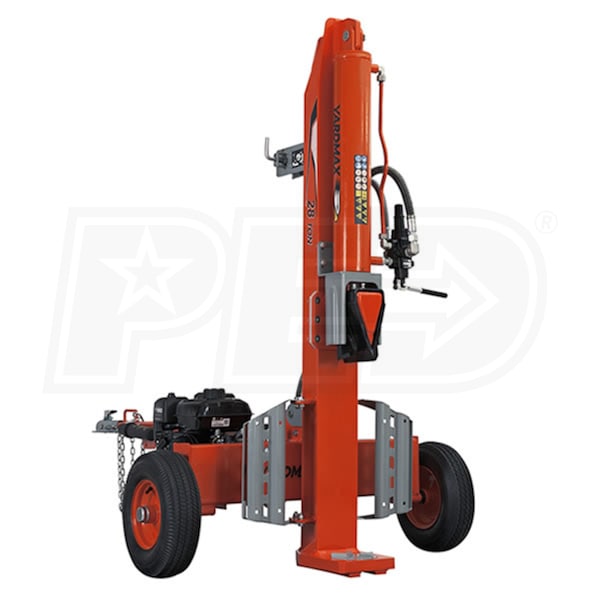

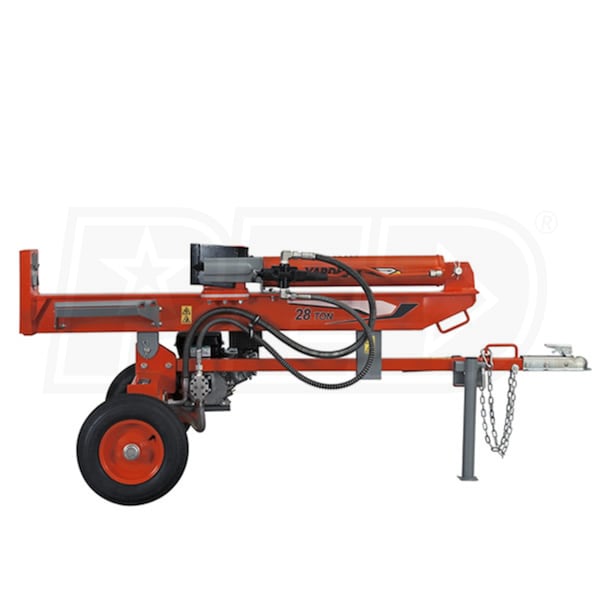

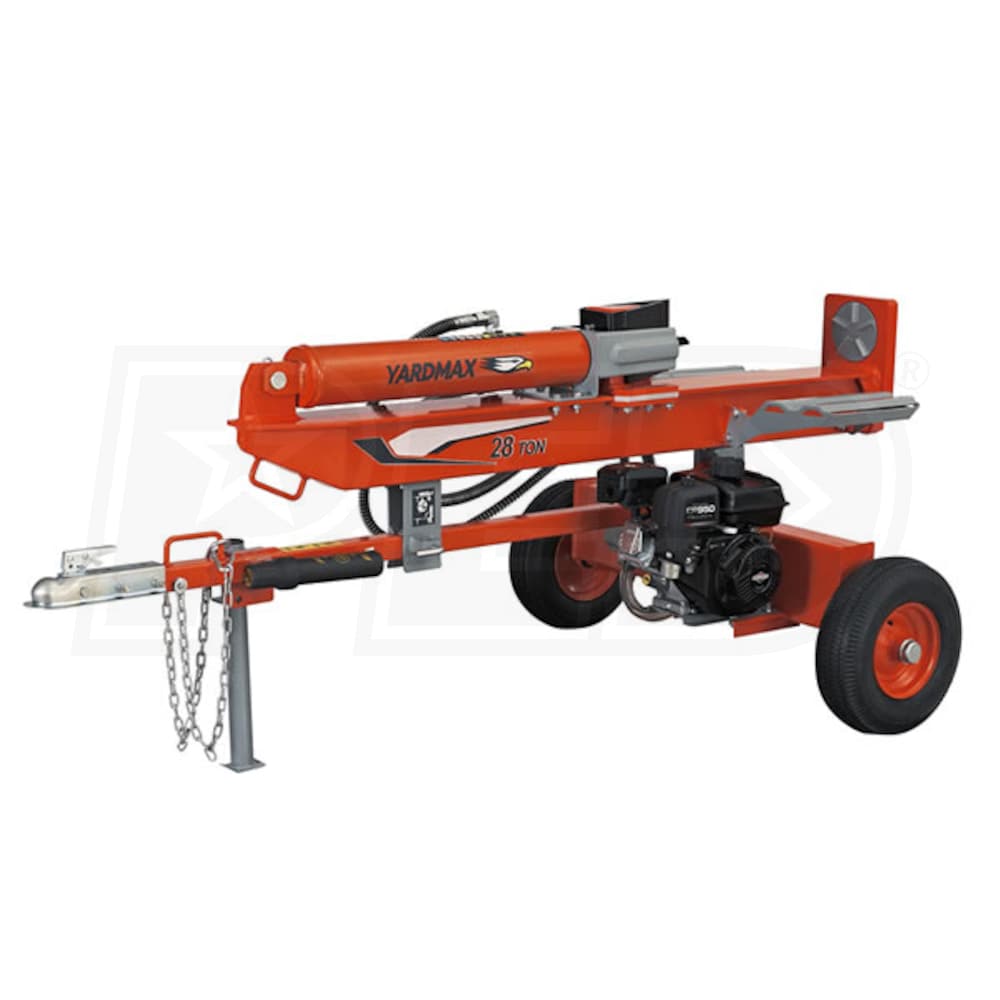

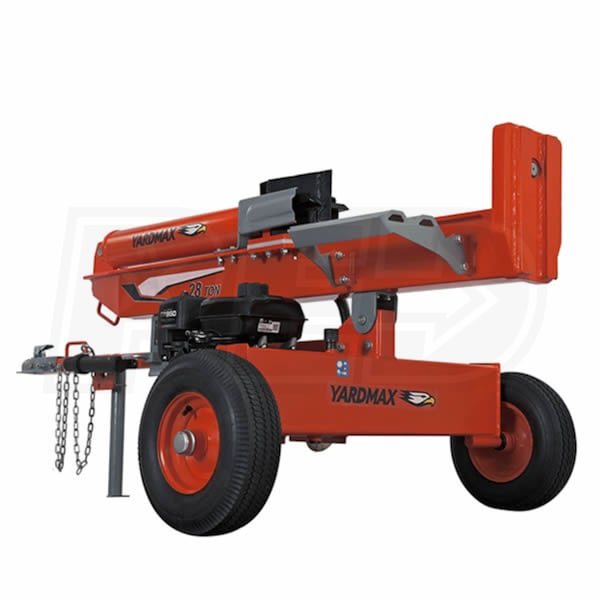

YARDMAX 28-Ton 208cc Horizontal / Vertical Gas Log Splitter (Scratch & Dent)
Model:
YU2866-SD
+
Share This Product
Features
Force
28 Tons
Style
Gas
Type
Vertical / Horizontal
Log Length
26 Inches
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- *Scratch & Dent Model*
- Scratches on the unit and damaged crate
- Cosmetic only, will not affect operation
- 28-Ton Splitting Force
- Built to perform in demanding applications
- Vertical & Horizontal Splitting - For Logs Up To 26" in Length
- Dual end cylinder support for equal weight distribution
- Cylinder handle makes it easy to position the splitter
- 208cc Briggs & Stratton 4-Cycle Gas Engine
- Reliable and easy-to-start with plenty of torque
- U-Beam Structural Design
- Patent pending design is significantly stronger than typical I-Beam designs
- Provides more durability and less stress over time
- 14-GPM 2-Stage Hydraulic Pump
- Over-sized design, provides a cycle time of only 13.2 seconds
- 4.5-Gallon Hydrualic Reservoir
- Built-into wheel shaft with internal filter for added protection
- 7.5" 4-Way Splitting Wedge
- Designed for quick connection and jam free operation with no need to change stripper plates
- Unique Spinner-Plate
- Puts less stress on the beam by allowing logs to turn when being split
- Adjustable Log Cradle
- Keeps the logs when you want them, regardless of splitter position
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
YU2866-SD
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
HP
208 HP
Idle Control
Yes
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
Yes
Hydraulic Reservoir Size
4.5 Gallons
Cycle Time
13.2 Seconds
Tonnage
28 Tons
Overview
Weight
530.5 Pounds
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Wedge
Wedge Material
Steel
Wedge Size
7 Inches
Wedge Style
2 & 4-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
26 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
No
Hitch Type
2 Inch Ball Hitch
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type | Hardness Rating | 6" Seasoned | 6" Green | 12" Seasoned | 12" Green | 24" Seasoned | 24" Green |
---|---|---|---|---|---|---|---|
Alder | 590 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Ash | 1320 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Aspen | 420 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Basswood | 410 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Beech | 1300 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Birch | 1470 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Boxelder | 720 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Buckeye | 350 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Catalpa | 550 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Cedar | 900 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
Cherry | 950 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
Cottonwood | 430 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Dogwood | 2150 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Elm | 1540 Lbs. | 10+ Tons | 13+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Fir | 710 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Hickory | 1820 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Locust | 1700 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Magnolia | 1020 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Maple | 1450 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Oak | 1620 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
Pine | 860 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Poplar | 540 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Spruce | 510 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
Sweet Gum | 850 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
Walnut | 1010 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
