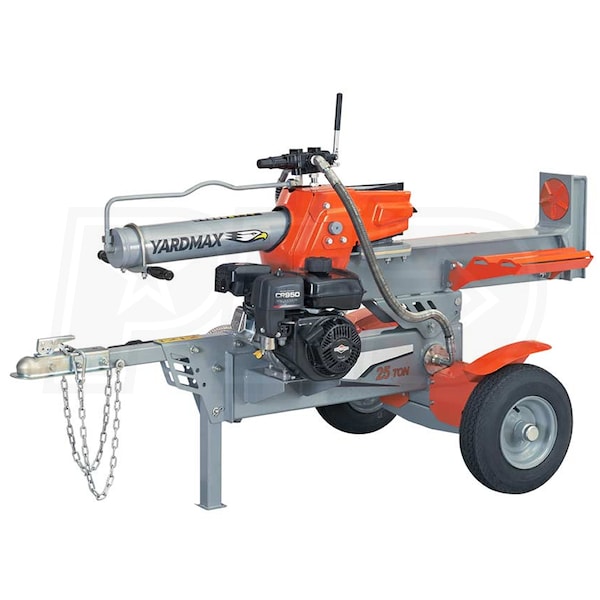

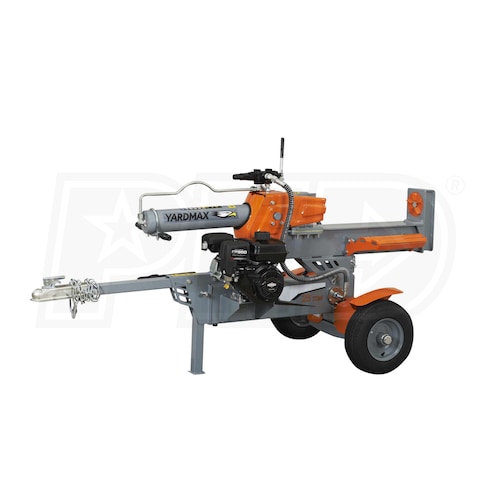

YARDMAX 25-Ton 208cc Half-Beam Horizontal / Vertical Gas Log Splitter
Model: YS2565
+
Share This Product
-
Product Description
-
53Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Force
25
Tons
Style
Type
Log Length
25.5
Inches
Force
25 Tons
Style
Gas
Type
Vertical / Horizontal
Log Length
25.5 Inches
Features
Features
- Same Performance, Half The Beam
- Compact design, immense 25-ton splitting force
- 208cc Briggs & Stratton 4-Cycle Gas Engine
- Reliable and easy-to-start with plenty of torque
- Vertical AND Horizontal Splitting
- Dual end cylinder support for equal weight distribution
- Locks into place ensuring stable and safe operation
- Easier to lift into vertical position than the full beam
- 14-GPM 2-Stage Hydraulic Pump
- Over-sized design, provides a cycle time of just 9.7 seconds
- 4.0-Gallon Hydraulic Reservoir
- Built-into wheel shaft with internal filter for added protection
- U-Beam Structural Design
- Exclusive structural design dwarfs traditional I-Beam in strength
- Provides more durability and less stress over time
- Patent Pending Spinner-Plate
- Logs freely spin while being split; less stress on the beam
- 7.5-INCH 2-Way Splitting Wedge
- Quickly connects providing a jam free operation
- Operator Friendly
- Control valve handle conveniently located on top of the unit
- Narrow wheel base allows you to get closer to table
- Adjustable Log Cradle
- Keeps the logs where you want them, regardless of splitter position
- Tow Capable
- 16-INCH DOT approved road tires with 2-INCH ball hitch
- Tire fenders for protection against fallen debris
- YARDMAX 3-2-1 Residential Warranty
- Warranty coverage that will keep you splitting wood, not hairs
Specifications
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
208 CCs
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
Yes
Hydraulic Reservoir Size
4
Cylinder Diameter
4 Inches
Cycle Time
9.7 Seconds
Tonnage
25 Tons
Wedge
Wedge Material
Steel
Wedge Size
7.5 Inches
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25.5 Inches
Towing
Towable
Yes
Fenders
Yes
Hitch Type
2 Inch Ball Hitch
Accessories
Jack Stands
Included
Log Cradles
Included
Wheels
Front Tire Size
16 Inch
Tire Type
Pneumatic Wheels
Overview
Assembly Required
Yes
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Power Type
Gas
Force
25
Tons
Style
Type
Log Length
25.5
Inches
Force
25 Tons
Style
Gas
Type
Vertical / Horizontal
Log Length
25.5 Inches
Features
Features
- Same Performance, Half The Beam
- Compact design, immense 25-ton splitting force
- 208cc Briggs & Stratton 4-Cycle Gas Engine
- Reliable and easy-to-start with plenty of torque
- Vertical AND Horizontal Splitting
- Dual end cylinder support for equal weight distribution
- Locks into place ensuring stable and safe operation
- Easier to lift into vertical position than the full beam
- 14-GPM 2-Stage Hydraulic Pump
- Over-sized design, provides a cycle time of just 9.7 seconds
- 4.0-Gallon Hydraulic Reservoir
- Built-into wheel shaft with internal filter for added protection
- U-Beam Structural Design
- Exclusive structural design dwarfs traditional I-Beam in strength
- Provides more durability and less stress over time
- Patent Pending Spinner-Plate
- Logs freely spin while being split; less stress on the beam
- 7.5-INCH 2-Way Splitting Wedge
- Quickly connects providing a jam free operation
- Operator Friendly
- Control valve handle conveniently located on top of the unit
- Narrow wheel base allows you to get closer to table
- Adjustable Log Cradle
- Keeps the logs where you want them, regardless of splitter position
- Tow Capable
- 16-INCH DOT approved road tires with 2-INCH ball hitch
- Tire fenders for protection against fallen debris
- YARDMAX 3-2-1 Residential Warranty
- Warranty coverage that will keep you splitting wood, not hairs
Specifications
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
208 CCs
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
Yes
Hydraulic Reservoir Size
4
Cylinder Diameter
4 Inches
Cycle Time
9.7 Seconds
Tonnage
25 Tons
Wedge
Wedge Material
Steel
Wedge Size
7.5 Inches
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25.5 Inches
Towing
Towable
Yes
Fenders
Yes
Hitch Type
2 Inch Ball Hitch
Accessories
Jack Stands
Included
Log Cradles
Included
Wheels
Front Tire Size
16 Inch
Tire Type
Pneumatic Wheels
Overview
Assembly Required
Yes
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Power Type
Gas
Product Specs
+−
Specifications
Engine
Engine Brand
Briggs & Stratton
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
208 CCs
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Oil Included
Yes
Hydraulic Reservoir Size
4
Cylinder Diameter
4 Inches
Cycle Time
9.7 Seconds
Tonnage
25 Tons
Wedge
Wedge Material
Steel
Wedge Size
7.5 Inches
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25.5 Inches
Towing
Towable
Yes
Fenders
Yes
Hitch Type
2 Inch Ball Hitch
Accessories
Jack Stands
Included
Log Cradles
Included
Wheels
Front Tire Size
16 Inch
Tire Type
Pneumatic Wheels
Overview
Assembly Required
Yes
Consumer Warranty
3 Years
Commercial Warranty
90 Days
Power Type
Gas
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Dale, the Log Splitter Expert
+−
Can you add a 4-way splitting head on this log splitter?
Mark
from Rhode Island
May 15, 2020
Answer
Yes, you can use a 4-way wedge, and it comes included.
Was this answer helpful?
Yes
5
No
0
