Features
Force
5 Tons
Style
Electric
Type
Horizontal
Log Length
20.5 Inches
- 5-Tons Of RAM Force
- Easily split logs up to 20.5" in length
- Powerful 15-Amp Electric Motor
- Clean and green, no gas tanks to fill or starters to pull
- Designed, engineered and manufactured in-house
- 16-Second Cycle Time
- Maximized productivity for more splitting in less time
- Lightweight & Portable
- 6" wheels allow for easy movement over uneven ground
- Lets you split indoors no matter what the weather is
- Full-Length Stand
- Saves your back by keeping splitter elevated, no bending
- Automatic Ram Reduction with Stroke Limiter
- Save time waiting on the ram for shorter logs

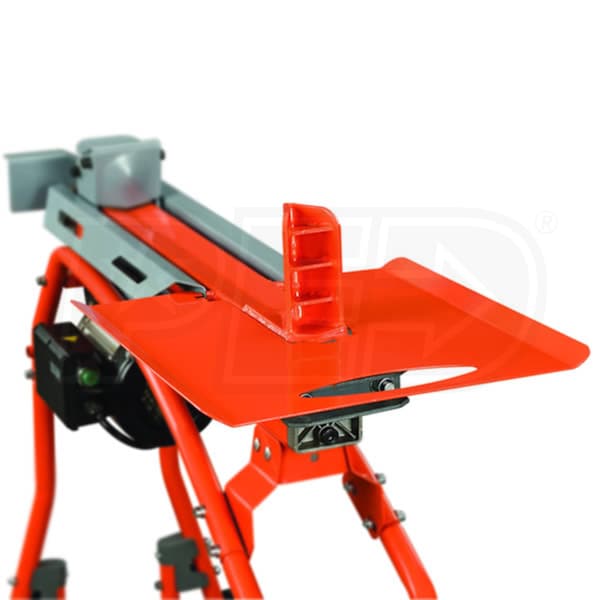

- Built in Log Cradles
- Keeps split wood from falling for quick re-splitting
- Two-Handed Operation
- An added level of operator safety
- Easy-Set-Up
- Splittler comes assembled, just clip on wheels
- Stand assembled with simple hand-tools
- 2-Year Residential & 90-Day Commercial Warranty
Specifications
YS0552
Motor
Motor Voltage
120-Volts
Watts
1650 Watts
Amps
15 Amps
Hydraulics
Auto Return
Yes
Hydraulic Oil Included
Yes
Hydraulic Reservoir Size
0.93 Gallons
Cycle Time
16 Seconds
Tonnage
5 Tons
Overview
Assembly Required
Yes
Weight
120 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Power Type
Electric
UPC
857649006104
Wedge
Wedge Material
Steel
Wedge Size
5 Inches
Wedge Style
2-way
Replaceable Wedge
No
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
20.5 Inches
Max Log Diameter
10 Inches
Towing
Towable
No
D.O.T. Lights
No
Fenders
No
Accessories
Jack Stands
No
Log Cradles
Included
| Wood Type | Hardness Rating | 6" Seasoned | 6" Green | 12" Seasoned | 12" Green | 24" Seasoned | 24" Green |
|---|---|---|---|---|---|---|---|
| Alder | 590 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Ash | 1320 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Aspen | 420 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Basswood | 410 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Beech | 1300 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Birch | 1470 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Boxelder | 720 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Buckeye | 350 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Catalpa | 550 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Cedar | 900 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cherry | 950 Lbs. | 6+ Tons | 8+ Tons | 15+ Tons | 20+ Tons | 27+ Tons | 30+ Tons |
| Cottonwood | 430 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Dogwood | 2150 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Elm | 1540 Lbs. | 10+ Tons | 13+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Fir | 710 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Hickory | 1820 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Locust | 1700 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Magnolia | 1020 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Maple | 1450 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
| Oak | 1620 Lbs. | 10+ Tons | 13+ Tons | 22+ Tons | 27+ Tons | 30+ Tons | 35+ Tons |
| Pine | 860 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Poplar | 540 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Spruce | 510 Lbs. | 4+ Tons | 6+ Tons | 7+ Tons | 9+ Tons | 27+ Tons | 30+ Tons |
| Sweet Gum | 850 Lbs. | 6+ Tons | 8+ Tons | 10+ Tons | 13+ Tons | 27+ Tons | 30+ Tons |
| Walnut | 1010 Lbs. | 7+ Tons | 9+ Tons | 16+ Tons | 22+ Tons | 30+ Tons | 35+ Tons |
Reviews
(35)
YardMax YS0552 Reviews & Ratings
How-To Articles
How to Safely Use a Log Splitter
Whether you're new to using log splitters or can split behind your back while b...
How to Pick the Perfect Log Splitter Style
Firewood heats you twice: once when you cut it and again when you burn it. But ...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

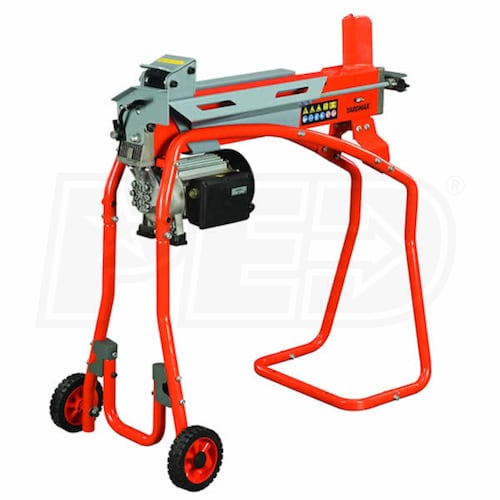

YARDMAX 5-Ton Electric Log Splitter W/ Stand & Tray
