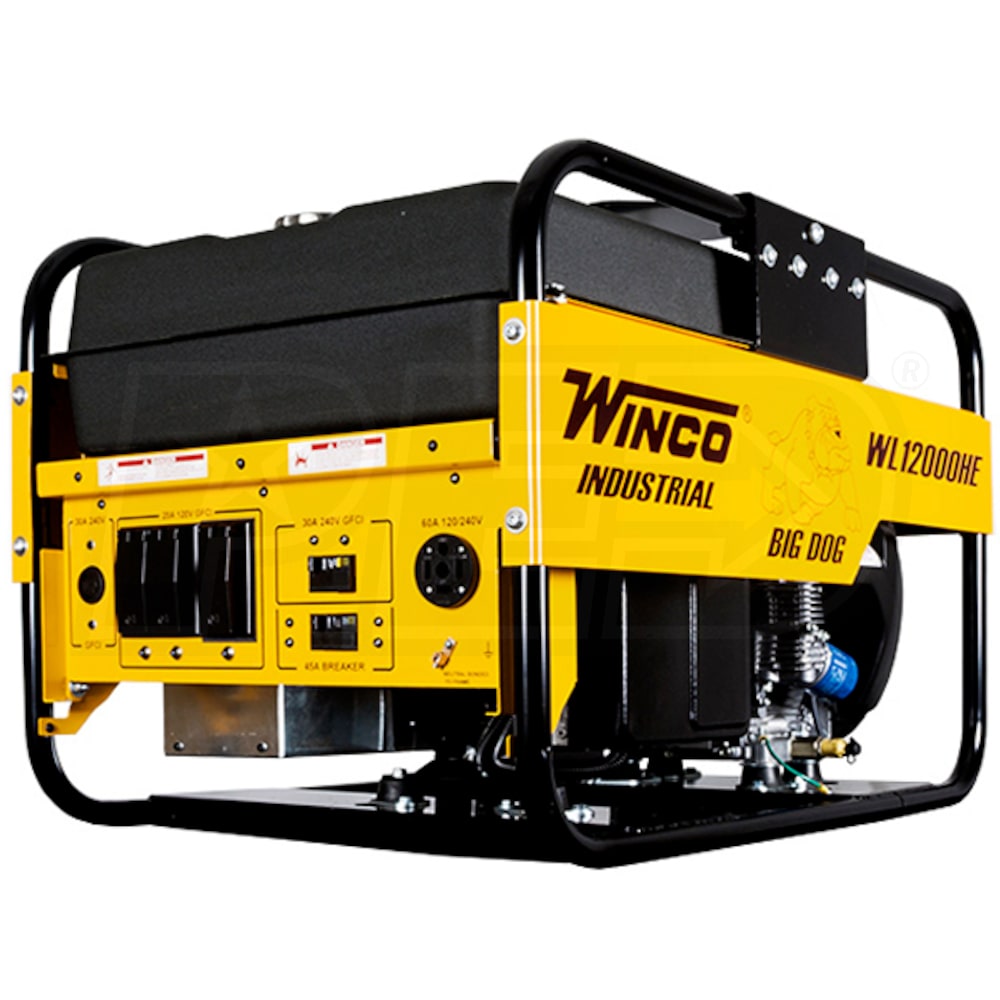

Winco WL12000HE - 10,800 Watt Electric Start Portable Generator w/ Honda Engine (CARB)
Winco WL12000HE - 10,800 Watt Electric Start Portable Generator w/ Honda Engine (CARB)
+
Share This Product
-
Product Description
-
6Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
10,800
Rated Watts
Surge Watts
12,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
10,800
Surge Watts
12,000 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Winco Electric Start Portable Job Site Generator
- Honda GX630 OHV powered with electric start & low oil sesnsor
- Produces 12,000 Watts Of Surge Power
- Rated @ 10,800 watts for continuous duty operation
- Brushless Alternator w/ 100% Copper Windings
- Provides clean power with no maintenance required
- 15-Gallon Fuel Tank Provides Extended Run Time
- Will keep a full work crew busy all day without re-fueling
- Fully Loaded Receptacle Panel
- Plenty of power to keep you operating at peak performance
- Full Power Design & Industrial Square D Mainline Circuit Breaker
- Easily draw the full rated output from a single 120/240V outlet
- Industry leading 1/60th second reaction time
- Heavy-Duty 1-1/4" 13-Gauge Tubular Steel Cradle
- Built to take any abuse the job site my dish out
- Standard Lifting Eye & 4-Wheel Dolly Kit (Sold Separately)
- Makes this generator easy to transport
- 3-Year Engine & 2-Year Generator Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
10800 Watts
Surge Watts
12000 Watts
Fuel Type
Gasoline
Rated Amps
45 Amps
Portability Kit
Sold Separately
Tank Size
15 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
77
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
382 Pounds
Certification
CARB, EPA
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
40 Inches
Product Width
27.2 Inches
Product Height
26.2 Inches
Plugs
NEMA 5-20R - GFCI
3
NEMA L6-30R
1
NEMA 14-60R
1
Grade
Style
Run Watts
10,800
Rated Watts
Surge Watts
12,000
Starting Watts
Fuel
Engine
Grade
Professional
Style
Portable
Run Watts
10,800
Surge Watts
12,000 Starting Watts
Fuel
Gasoline
Engine
Honda GX
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Winco Electric Start Portable Job Site Generator
- Honda GX630 OHV powered with electric start & low oil sesnsor
- Produces 12,000 Watts Of Surge Power
- Rated @ 10,800 watts for continuous duty operation
- Brushless Alternator w/ 100% Copper Windings
- Provides clean power with no maintenance required
- 15-Gallon Fuel Tank Provides Extended Run Time
- Will keep a full work crew busy all day without re-fueling
- Fully Loaded Receptacle Panel
- Plenty of power to keep you operating at peak performance
- Full Power Design & Industrial Square D Mainline Circuit Breaker
- Easily draw the full rated output from a single 120/240V outlet
- Industry leading 1/60th second reaction time
- Heavy-Duty 1-1/4" 13-Gauge Tubular Steel Cradle
- Built to take any abuse the job site my dish out
- Standard Lifting Eye & 4-Wheel Dolly Kit (Sold Separately)
- Makes this generator easy to transport
- 3-Year Engine & 2-Year Generator Warranty
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
10800 Watts
Surge Watts
12000 Watts
Fuel Type
Gasoline
Rated Amps
45 Amps
Portability Kit
Sold Separately
Tank Size
15 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
77
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
382 Pounds
Certification
CARB, EPA
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
40 Inches
Product Width
27.2 Inches
Product Height
26.2 Inches
Plugs
NEMA 5-20R - GFCI
3
NEMA L6-30R
1
NEMA 14-60R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
10800 Watts
Surge Watts
12000 Watts
Fuel Type
Gasoline
Rated Amps
45 Amps
Portability Kit
Sold Separately
Tank Size
15 Gallons
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
77
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Battery
Not Included
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Assembly Required
Yes
Weight
382 Pounds
Certification
CARB, EPA
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Style
Portable Generator
Product Length
40 Inches
Product Width
27.2 Inches
Product Height
26.2 Inches
Plugs
NEMA 5-20R - GFCI
3
NEMA L6-30R
1
NEMA 14-60R
1
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jared, the Generator Expert
+−
How many amps will it produce?
Ed
from Virginia
June 28, 2012
Answer
This generator produces 45A @ 240V Max.
