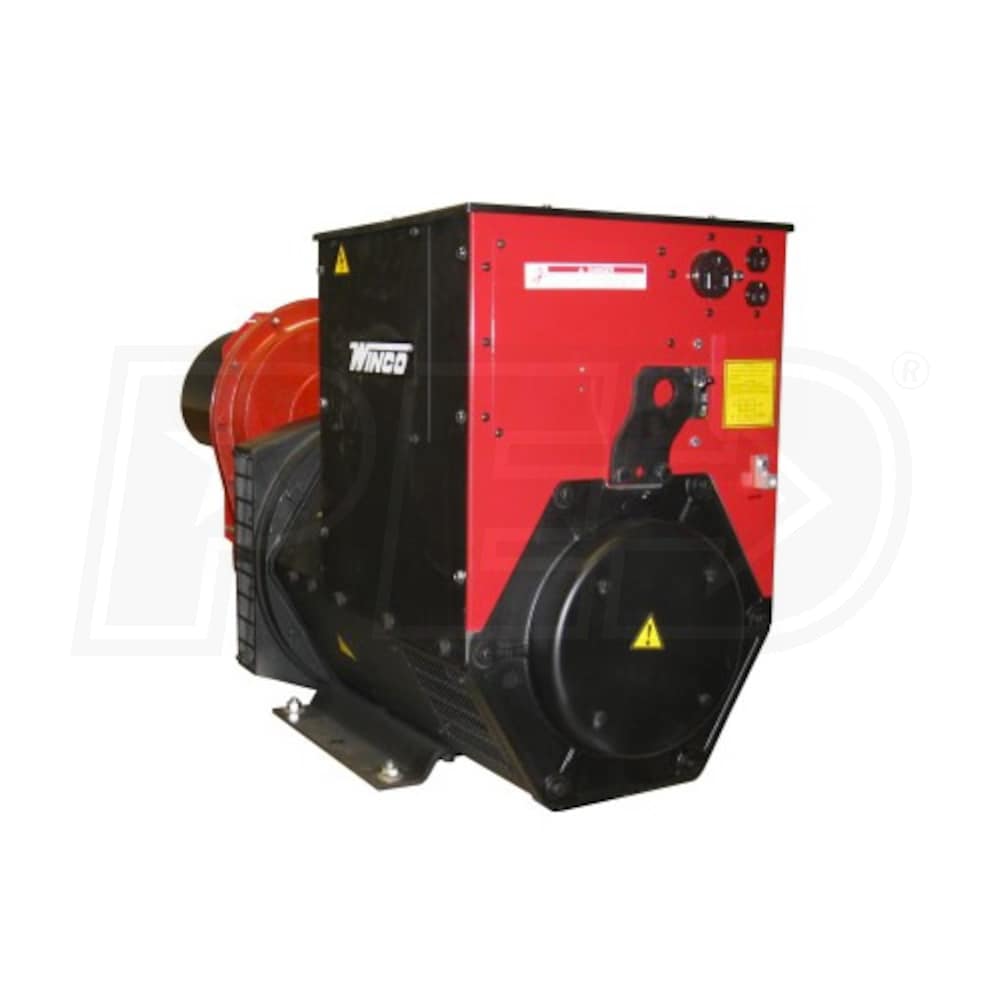

Winco W85PTOS - 85 kW Tractor-Driven PTO Generator (1,000 RPM)

Model:

64864-010

Write A Review
$11,444.80
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order

Winco W85PTOS - 85 kW Tractor-Driven PTO Generator (1,000 RPM)
Winco W85PTOS - 85 kW Tractor-Driven PTO Generator (1,000 RPM)
Model: 64864-010
$11,444.80
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

PTO

Run Watts

85,000 Rated Watts

Surge Watts

85,000
Starting Watts

  • This PTO provides 85kW/354 amps continuous power
  • This PTO generator requires 170hp to run
  • The PTO input speed is 1000 and generator speed is 1800 RPM
  • 100% Copper Windings
  • Brushless Revolving Field
  • Precision AVR Regulated voltage 2%
  • Heavy Duty construction
  • Grounding Ternimal
  • Full Power Anderson Style Receptacle (Includes Anderson Plug)
  • Mainline Circuit Breaker
  • Shielded PTO Shaft
  • Rodent Screen
  • Mounting Base
  • Sealed Ball Bearings
  • Speed Indicator visible from tractor seat
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA L5-20R
NEMA 6-50R
Full Power Receptacle
64864-010
specs product image PID-1716
Overview
Weight
1100 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Style
PTO Generator
Product Length
42.2 Inches
Product Width
20.8 Inches
Product Height
30.2 Inches
Additional Model Numbers

W85FPTOS, 64864-010

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
85000 Watts
Surge Watts
85000 Watts
Rated Amps
354 Amps
Voltage Meter
Yes
Tractors HP
170 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Plugs
NEMA L5-20R
1
NEMA 6-50R
1
Full Power Receptacle
1
