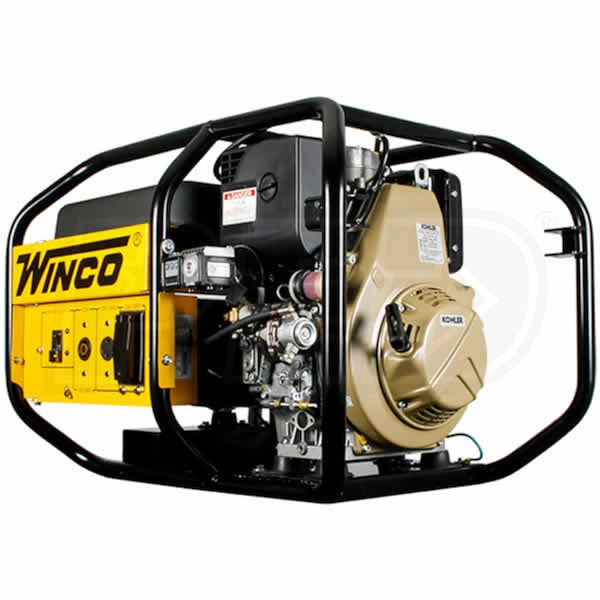

Winco W6010KE - 5160 Watt Electric Start Portable Industrial Diesel Generator (49-State)

Model:

24006-008

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Winco W6010KE - 5160 Watt Electric Start Portable Industrial Diesel Generator (49-State)
Winco W6010KE - 5160 Watt Electric Start Portable Industrial Diesel Generator (49-State)
Model: 24006-008
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Portable

Run Watts

5,160 Rated Watts

Surge Watts

6,010
Starting Watts

Fuel

Diesel

Engine

Kohler

  • Winco W6010DE Industrial Diesel Generator
  • Completely redesigned for 2016
  • 440cc Kohler KD440 OHV Diesel Engine
  • Full pressure lubrication with full-flow oil filter for maximum engine protection
  • Direct injection provides increased power and lower fuel consumption
  • Low Oil Protection
  • Provides safer operation especially during extended operation
  • Electric Start (Battery Not Included) w/ Recoil Backup
  • Allows for easier starting on the jobsite
  • Full Panel GFCI Protection
  • Must use GFI type manual transfer switch for panel connection
  • Not for use with interlock kit
  • YourGen LED Display
  • Displays hours, RPM's, voltage and Hz readings
  • Load bars and warnings
  • 30-Amp L5-30R (120V) & 30A L14-30R (120/240V) Receptacles
  • Provides the ability to power 30A tools and equipment
  • Premium Square D Circuit Breakers w/ Visi-Trip Indicators
  • Easily see when a tripped circuit occurs
  • 7-Gallon Fuel Tank w/ Fuel Gauge
  • Long-run design, provides up to 11.7 hours of run time @ 100% load
  • LED Indicator Lights
  • Warning indicators for Electric System OK, Low Oil Pressure & Battery Charging circuit
  • 1.25" Wrap-Around 16-Gauge Welded Tubular Cradle
  • Powder-coat paint protects finish from damage and debris
  • 100% Load Tested
  • Winco load test's every generator prior to leaving the factory
  • 3-Year Engine & 3-Year Generator Warranty
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (GFCI)
NEMA L5-30R
NEMA L14-30R
24006-008
specs product image PID-70543
Overview
Weight
252 Pounds
CARB Compliant
No
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
34.5 Inches
Product Width
24.6 Inches
Product Height
23.4 Inches
Additional Model Numbers

W6010DE, 24006-008

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
5160 Watts
Surge Watts
6010 Watts
Fuel Type
Diesel
Rated Amps
43 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
19.4 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
87.6
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Circuit Breaker Size
30 Amps
Cooling System
Air Cooled
Grade Type
Professional
Engine
Engine Brand
Kohler
Starting System
12-Volt Button Start w/ Recoil
CC
440 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Plugs
NEMA 5-20R - GFCI
1
NEMA L5-30R
1
NEMA L14-30R
1
