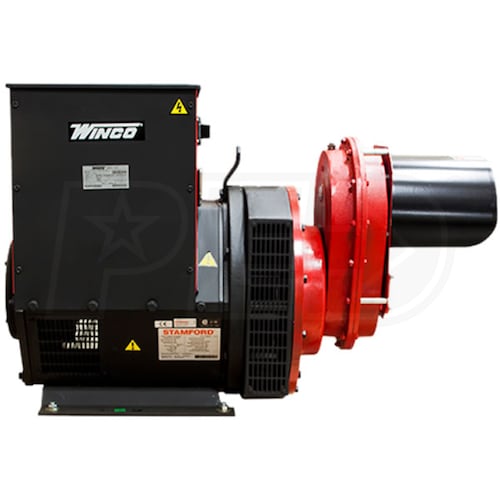

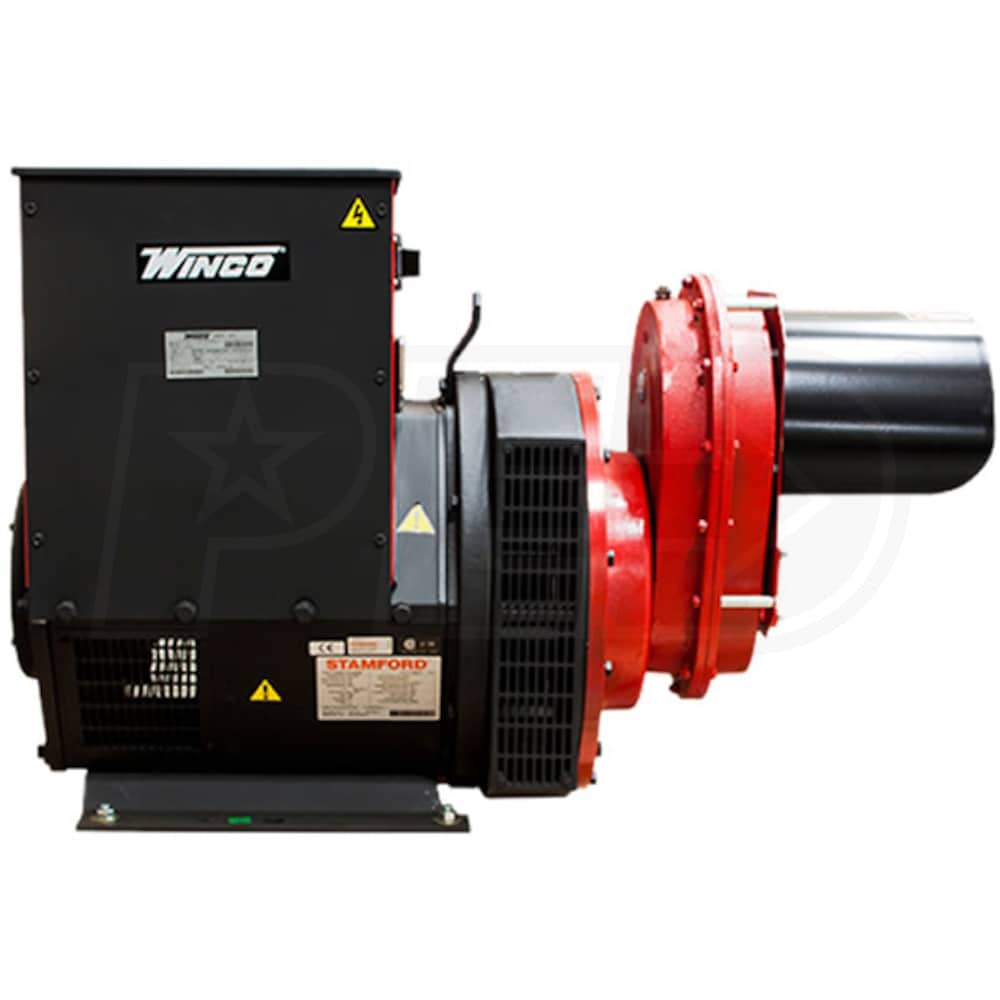

Winco W165FPTOT-18 - 165 kW Tractor-Driven PTO Generator 3-Phase (277/480V)

Winco W165FPTOT-18 - 165 kW Tractor-Driven PTO Generator 3-Phase (277/480V)
Model: W165FPTOT-18
$11,509.00
Backordered
Estimated Availability February 06, 2018
Notify Me When In-Stock
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons
Free ShippingNo Sales Tax* (Except IL)$11,509.00Buy Now
Free FreightNo Sales Tax* (Except IL)$11,509.00Visit Site
Backordered
Estimated Availability February 06, 2018
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
165,000
Rated Watts
Surge Watts
165,000
Starting Watts
Features
Features
  • This PTO provides 165kW/248 amps continuous power
  • This PTO generator requires 290hp (At the PTO) to run
  • The PTO input speed is 1000 and generator speed is 1800 RPM
  • 100% Copper Windings
  • Brushless Revolving Field
  • Precision AVR Regulated voltage 1.5%
  • Heavy Duty construction
  • Grounding Ternimal
  • *No Receptacles* Must Be Hardwired
  • Mainline Circuit Breaker
  • Shielded PTO Shaft
  • Rodent Screen
  • Mounting Base
  • Sealed Ball Bearings
  • Speed Indictaor visible from tractor seat
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
165000 Watts
Rated Watts
165000 Watts
Rated Amps
248 Amps
Voltage Meter
Yes
Tractors HP
290 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Overview
Made in USA
Yes
Weight
1494 Pounds
Product Style
PTO Generator
Product Length
47 Inches
Product Width
27 Inches
Product Height
30 Inches
Consumer Warranty
3 Years
Grade
Style
Run Watts
165,000
Rated Watts
Surge Watts
165,000
Starting Watts
Features
Features
  • This PTO provides 165kW/248 amps continuous power
  • This PTO generator requires 290hp (At the PTO) to run
  • The PTO input speed is 1000 and generator speed is 1800 RPM
  • 100% Copper Windings
  • Brushless Revolving Field
  • Precision AVR Regulated voltage 1.5%
  • Heavy Duty construction
  • Grounding Ternimal
  • *No Receptacles* Must Be Hardwired
  • Mainline Circuit Breaker
  • Shielded PTO Shaft
  • Rodent Screen
  • Mounting Base
  • Sealed Ball Bearings
  • Speed Indictaor visible from tractor seat
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
165000 Watts
Rated Watts
165000 Watts
Rated Amps
248 Amps
Voltage Meter
Yes
Tractors HP
290 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Overview
Made in USA
Yes
Weight
1494 Pounds
Product Style
PTO Generator
Product Length
47 Inches
Product Width
27 Inches
Product Height
30 Inches
Consumer Warranty
3 Years
Product Specs
+
Specifications
Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
165000 Watts
Rated Watts
165000 Watts
Rated Amps
248 Amps
Voltage Meter
Yes
Tractors HP
290 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Overview
Made in USA
Yes
Weight
1494 Pounds
Product Style
PTO Generator
Product Length
47 Inches
Product Width
27 Inches
Product Height
30 Inches
Consumer Warranty
3 Years
