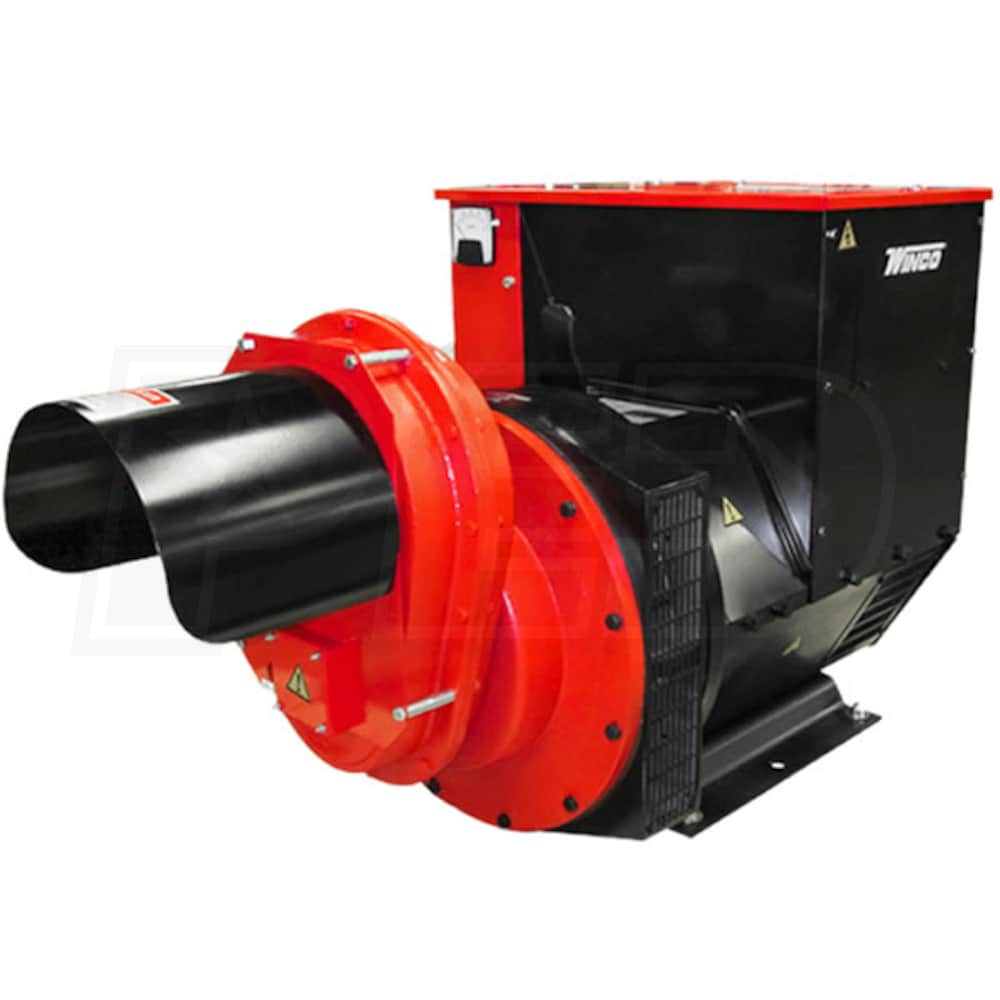

Winco W145PTOS-17 - 145 kW Tractor-Driven PTO Generator (1,000 RPM) (120/240V 3-Phase)
Model: 64868-014
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$11,194.50
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Watts
PTO Speed
Voltage
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Free Shipping$11,194.50Buy Now
Free Freight$11,194.50Visit Site
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
145,000
Rated Watts
Surge Watts
145,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
145,000
Surge Watts
145,000 Starting Watts
Features
Features
  • This PTO provides 145kW/436 amps continuous power
  • This PTO generator requires 290hp to run
  • The PTO input speed is 1000 and generator speed is 1800 RPM
  • 100% Copper Windings
  • Brushless Revolving Field
  • Precision AVR Regulated voltage 1.5%
  • Heavy Duty construction
  • Grounding Ternimal
  • Full Load Connector
  • Mainline Circuit Breaker
  • Shielded PTO Shaft
  • Rodent Screen
  • Mounting Base
  • Sealed Ball Bearings
  • Speed Indictaor visible from tractor seat
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 6-50R
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
145000 Watts
Surge Watts
145000 Watts
Rated Amps
436 Amps
Voltage Meter
Yes
Tractors HP
290 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Overview
Weight
1494 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Style
PTO Generator
Product Length
47 Inches
Product Width
27 Inches
Product Height
30 Inches
Additional Model Numbers
W145FPTOT-17, 64868-014
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 6-50R
1
Grade
Style
Run Watts
145,000
Rated Watts
Surge Watts
145,000
Starting Watts
Grade
Professional
Style
PTO
Run Watts
145,000
Surge Watts
145,000 Starting Watts
Features
Features
  • This PTO provides 145kW/436 amps continuous power
  • This PTO generator requires 290hp to run
  • The PTO input speed is 1000 and generator speed is 1800 RPM
  • 100% Copper Windings
  • Brushless Revolving Field
  • Precision AVR Regulated voltage 1.5%
  • Heavy Duty construction
  • Grounding Ternimal
  • Full Load Connector
  • Mainline Circuit Breaker
  • Shielded PTO Shaft
  • Rodent Screen
  • Mounting Base
  • Sealed Ball Bearings
  • Speed Indictaor visible from tractor seat
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 6-50R
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
145000 Watts
Surge Watts
145000 Watts
Rated Amps
436 Amps
Voltage Meter
Yes
Tractors HP
290 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Overview
Weight
1494 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Style
PTO Generator
Product Length
47 Inches
Product Width
27 Inches
Product Height
30 Inches
Additional Model Numbers
W145FPTOT-17, 64868-014
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 6-50R
1
Product Specs
+
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 6-50R
Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
145000 Watts
Surge Watts
145000 Watts
Rated Amps
436 Amps
Voltage Meter
Yes
Tractors HP
290 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Overview
Weight
1494 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Style
PTO Generator
Product Length
47 Inches
Product Width
27 Inches
Product Height
30 Inches
Additional Model Numbers
W145FPTOT-17, 64868-014
Plugs
NEMA 5-20R - Wall-Type
1
NEMA 6-50R
1
