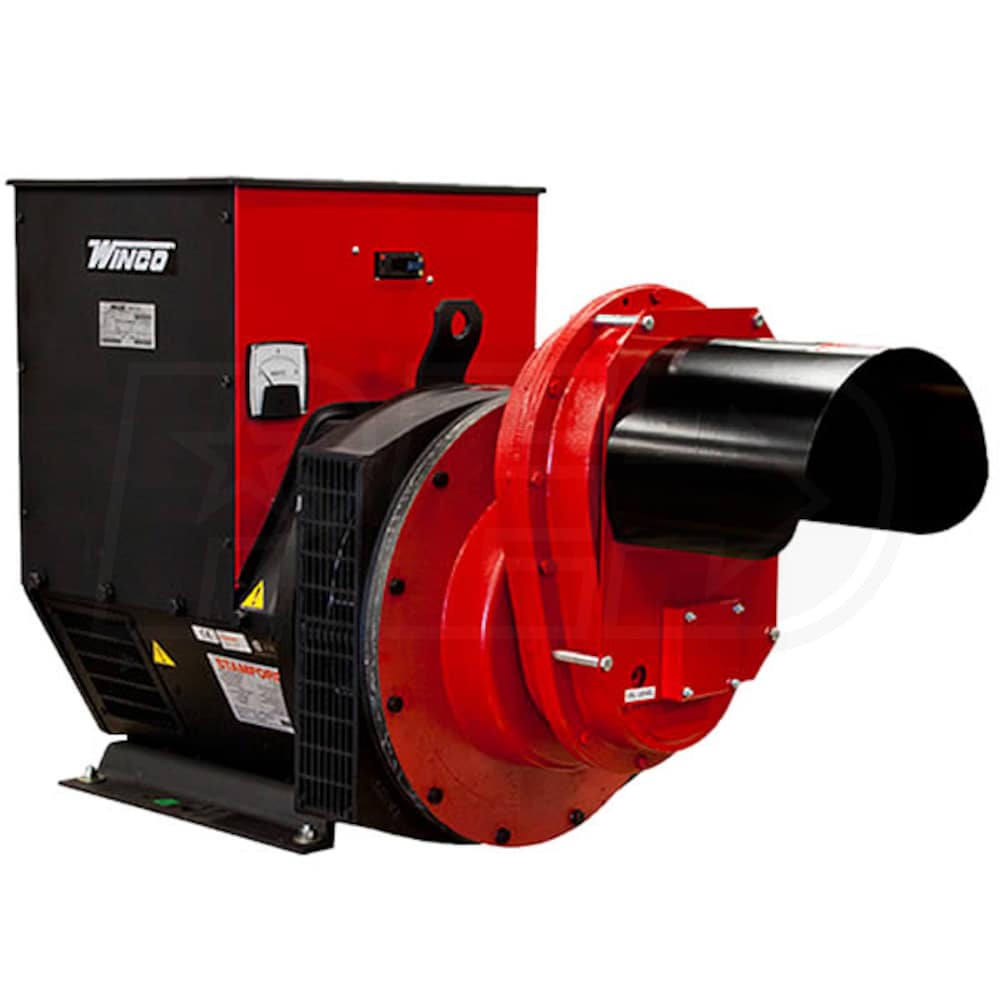

Winco W105PTOS-4 - 105 kW Tractor-Driven PTO Generator (1,000 RPM) (120/208V 3-Phase)

Model:

64868-010

Write A Review
$13,257.20
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Out of Stock
Sorry, this product is currently unavailable.
Winco W105PTOS-4 - 105 kW Tractor-Driven PTO Generator (1,000 RPM) (120/208V 3-Phase)
Winco W105PTOS-4 - 105 kW Tractor-Driven PTO Generator (1,000 RPM) (120/208V 3-Phase)
Model: 64868-010
$13,257.20
Out of Stock
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

PTO

Run Watts

105,000 Rated Watts

Surge Watts

105,000
Starting Watts

  • This PTO provides 105kW/364 amps continuous power
  • This PTO generator requires 210hp to run
  • The PTO input speed is 1000 and generator speed is 1800 RPM
  • 100% Copper Windings
  • Brushless Revolving Field
  • Precision AVR Regulated voltage 1.5%
  • Heavy Duty construction
  • Grounding Ternimal
  • Full Power Anderson Style Receptacle (Includes Anderson Plug)
  • Mainline Circuit Breaker
  • Shielded PTO Shaft
  • Rodent Screen
  • Mounting Base
  • Sealed Ball Bearings
  • Speed Indictaor visible from tractor seat
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA L5-20R
NEMA 6-50R
Full Power Receptacle
64868-010
specs product image PID-2279
General Information
Product Category
Generator - PTO
Overview
Product Category
Generator - PTO
Weight
1216 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Product Style
PTO Generator
Product Length
42.2 Inches
Product Width
20.8 Inches
Product Height
30.2 Inches
Additional Model Numbers

W105FPTOT-4, 64868-010

Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
105000 Watts
Surge Watts
105000 Watts
Rated Amps
364 Amps
Voltage Meter
Yes
Tractors HP
210 HP
PTO RPMs
1000 RPM
Grade Type
Professional
Plugs
NEMA L5-20R
1
NEMA 6-50R
1
Full Power Receptacle
1
