Features
Grade
Emergency
Style
Standby (Air Cooled)
Run Watts
17,000 Rated Watts
Voltage
120/240 Single-Phase
Fuel
LP/Natural Gas
Engine
Briggs and Stratton Vanguard
- Winco 17kw Standby Generator
- For emergency standby and prime power* applications
- Now comes standard with "2-Wire" starting
- Operates On Clean Burning Natural Gas or Liquid-Propane (LP)
- Engineered for simple and easy field conversion
- 993cc Industrial-Grand Briggs & Stratton Vanguard V-Twin Engine
- Horizontal design provides smoother power over single cylinder engines
- Pressurized lubrication system with spin-on oil filter
- Fast Response (Req. Automatic Transfer Switch - Not Included)
- Fast automatic response to power outages in less than 30 secs.
- DSE 3110 Digital Controller
- Digital display allows for easy viewing of diagnostic and operating info
- Brushless Alternator <5% Total Harmonic Distortion
- Provides near utility grade power safe for electronics
- Galvanneal Steel Housing w/ DuPont Powder Coat Paint
- Key-lockable, rodent-proof design, resists the elements
- Unique, 3-Chamber Housing Construction
- Increases air flow while reducing noise and heat
- Safety Shutdowns & Overcurrent Protection
- Provides added protection for the generator and load
- Also Includes Smart Battery Charger
- Increases the reliability & service life of battery
- *For Prime Power Derate By 20% - Please See Spec Sheet For Details
- 2-Year / 2000 Hour Generator Warranty
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
16400-045
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
878 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Style
Standby Generator
Product Length
54.85 Inches
Product Width
36.5 Inches
Product Height
37.7 Inches
Additional Model Numbers
PSS20B2W, 16400-045
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Rated Watts
17000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
15000 Watts
LP Power Capacity
17000 Watts
NG Fuel Consumption @ 100% Load
328 ft³/hr
LP Fuel Consumption @ 100% Load
3.61 gallons/hr
Rated Amps
71 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
76.3
Hour Meter
Yes
Transfer Switch
Automatic (Not Included)
Battery
Not Included (500 CCA)
Enclosure
Steel
Circuit Breaker Size
80 Amps
Mounting Pad
Concrete (Not Included)
Cooling System
Air Cooled
Grade Type
Emergency
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12v Auto Start
CC
993 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Reviews
(1)
Winco 16400-045 Reviews & Ratings
How-To Articles
How to Find An In-Stock Generator During a Blackout
Finding an electric generator can be a challenge at times, especially during a ...
How to Size a Home Standby Generator
Put down the calculator! Sizing an essential circuit standby generator is extre...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
16400-045
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

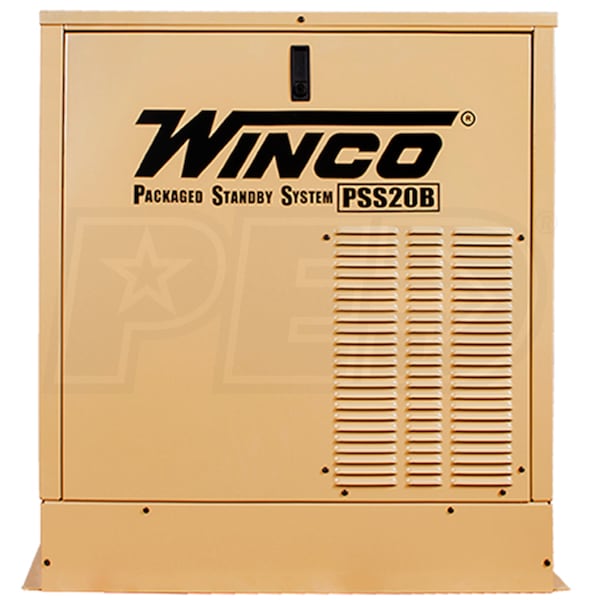

Winco PSS20B2W 17kW Home Standby Generator w/ Vanguard Engine
