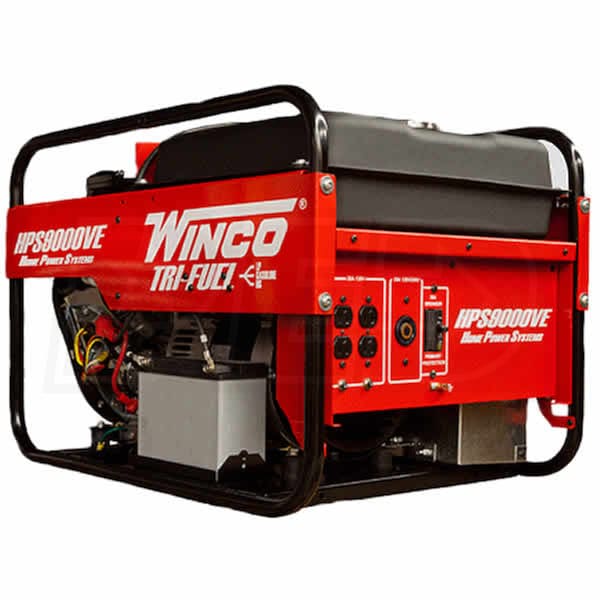

Winco HPS9000VE - 8,000 Watt Tri-Fuel Generator w/ Electric Start B&S Vanguard Engine

Winco HPS9000VE - 8,000 Watt Tri-Fuel Generator w/ Electric Start B&S Vanguard Engine
Model: HPS9000VE
$2,549.00
Backordered
Estimated Availability April 02, 2018
Notify Me When In-Stock
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons
Extended Warranty
Excludes CA

Free ShippingNo Sales Tax* (Except IL)$2,549.00Buy Now
Free FreightNo Sales Tax* (Except IL)$2,549.00Visit Site
Backordered
Estimated Availability April 02, 2018
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to California or any destination outside of the United States
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
  • Product Description
  • 7
    Reviews
  • 5
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Style
Run Watts
8,000
Rated Watts
Surge Watts
9,000
Starting Watts
Fuel
Engine
Features
Features
  • Tri-Fuel Carburetor and Gas Regulator
  • Versatile generator runs on L.P gas, natural gas or gasoline
  • 16-HP Electric Start B&S Vanguard Engine
  • Premium-quality, fuel-efficient engine with low oil protection
  • Standard electric start w/ battery rack and cables
  • Brushless Alternator
  • Inherent voltage regulation protects electronics from surges
  • Less than 6% THD (Total Harmonic Distortion)
  • 100% copper windings, NEMA Class F insulation
  • Electric Start (Recoil Backup)
  • Battery not included; Group 20 or 24HL 300CCA recommended
  • NOTICE: TRI-FUEL STARTING
  • Tri-Fuel generators operating on vapor fuel, (either LP or NG)
  • must be started using the electric start system provided.
  • You cannot hand crank the unit fast enough to develop the proper
  • vacuum to make the vapor fuel system work.
  • WHEN USING VAPOR FUEL NEVER USE THE CHOKE
  • Use of the choke will prevent air and fuel from properly mixing.
  • Recommended Battery - Group 20 or 24HL 300CCA(Not Included)
  • This generator cannot be sold to California
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Button Start w/ Recoil
HP
16 HP
CC
480 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
9000 Watts
Rated Watts
8000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Fuel Consumption @ 100% Load
180 ft³/hr
LP Fuel Consumption @ 50% Load
1.5 gallons/hr
Rated Amps
33 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
77 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Emergency
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Overview
Made in USA
Yes
Weight
242 Pounds
Product Style
Portable Generator
Product Length
32.75 Inches
Product Width
22.5 Inches
Product Height
22 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Grade
Style
Run Watts
8,000
Rated Watts
Surge Watts
9,000
Starting Watts
Fuel
Engine
Features
Features
  • Tri-Fuel Carburetor and Gas Regulator
  • Versatile generator runs on L.P gas, natural gas or gasoline
  • 16-HP Electric Start B&S Vanguard Engine
  • Premium-quality, fuel-efficient engine with low oil protection
  • Standard electric start w/ battery rack and cables
  • Brushless Alternator
  • Inherent voltage regulation protects electronics from surges
  • Less than 6% THD (Total Harmonic Distortion)
  • 100% copper windings, NEMA Class F insulation
  • Electric Start (Recoil Backup)
  • Battery not included; Group 20 or 24HL 300CCA recommended
  • NOTICE: TRI-FUEL STARTING
  • Tri-Fuel generators operating on vapor fuel, (either LP or NG)
  • must be started using the electric start system provided.
  • You cannot hand crank the unit fast enough to develop the proper
  • vacuum to make the vapor fuel system work.
  • WHEN USING VAPOR FUEL NEVER USE THE CHOKE
  • Use of the choke will prevent air and fuel from properly mixing.
  • Recommended Battery - Group 20 or 24HL 300CCA(Not Included)
  • This generator cannot be sold to California
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Button Start w/ Recoil
HP
16 HP
CC
480 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
9000 Watts
Rated Watts
8000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Fuel Consumption @ 100% Load
180 ft³/hr
LP Fuel Consumption @ 50% Load
1.5 gallons/hr
Rated Amps
33 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
77 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Emergency
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Overview
Made in USA
Yes
Weight
242 Pounds
Product Style
Portable Generator
Product Length
32.75 Inches
Product Width
22.5 Inches
Product Height
22 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Specs
+
Specifications
Plugs
NEMA 5-20R (Wall-Type)
NEMA 5-20R (Wall-Type)
NEMA L14-30R
Engine
Engine Brand
Briggs and Stratton Vanguard
Starting System
12-Volt Button Start w/ Recoil
HP
16 HP
CC
480 CC
Consumer Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Surge Watts
9000 Watts
Rated Watts
8000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Fuel Consumption @ 100% Load
180 ft³/hr
LP Fuel Consumption @ 50% Load
1.5 gallons/hr
Rated Amps
33 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
7 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
77 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Emergency
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
Overview
Made in USA
Yes
Weight
242 Pounds
Product Style
Portable Generator
Product Length
32.75 Inches
Product Width
22.5 Inches
Product Height
22 Inches
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Reviews
(7)
+
Winco HPS9000VE Reviews & Ratings
Product Q&A
(5)
+
Can this run off the 20lb tanks that we use for BBQ? I see that you say it can run off any size tank in a previous question but I am not sure that it can connect right to the BBQ tanks. I am looking for a portable generator that could run even just our heating system. My electrician had shown me the generac models, but I am not sure if that is safe with my Quietside burner. I looked throughout that manual but I don't see anything about THD in it. Last year when my area lost power we couldn't even buy gas for our cars so I was trying to find another alternative.
Daniel Reich
from New York
August 09, 2013
Read Response +
Answer
These units "cannot" be used with a 5 gallon (20#) propane tank.

Here are the tank requirements from the owner's manual which are based on temperature (Found on Page 7)...Owner's Manual Link Below....

HPS9000VE

60 Deg. F - 70 gal.
30 Deg. F - 80 gal.
0 Deg. F - 200 gal.
-20 Deg. F - 7000 gal.

Owner's Manual
Hide Response -
Winco HPS9000VE......I currently have a Weber natural gas barbeque being fed by 50 feet of 3/4" CSST Flexible Tubing. If I disconnect the barbeque and connect this generator will it receive enough pressure to operate properly?
Howard Rubenstein
from New Jersey
July 20, 2013
Read Response +
Answer
Page 6 of the owner's manual, available on our site under the specs tab has the following chart....

Size of pipe required for generators operating on natural gas/
LP gas.

-Length of Fuel Line* Fuel Line Size
-Less than 25 feet 3/4 inch black pipe
-25 to 100 feet 1 inch black pipe
-over 100 feet not recommended**

*allow an additional 3 feet for each standard elbow. Do not
use ‘street ells’ (restrictive)

** Consult factory for fuel runs over 100 feet.

The manual also lists specific requirements for fuel regulation and the use of fuel regulators.

We recommend consulting the owner's manual and a certified plumber for proper installation.
Hide Response -
Will this generator (HPS12000HE) deliver full rated power while operating on Propane?
Joseph Smith
from New York
January 21, 2012
Read Response +
Answer
Per page 3 of the owner's manual you would Derate 10% for LP and 20% for NG.

This is true on all Winco Tri-Fuel models.

Owner's Manual
Hide Response -
What is the LP gas line in pressure required to run this generator.
Joseph Smith
from New York
January 21, 2012
Read Response +
Answer
Correct fuel pressure cannot be stressed enough. The most common cause or inoperative systems is an inadequate or incorrect fuel pressure.

Power and performance of the engine is in direct relation to the correctness of the fuel system.

There are several fuel delivery systems mentioned in the owner's manual and should be referred to when connecting system.

Whichever fuel delivery system or type of vapor fuel used, the fuel pressure at the demand regulator installed on the engine generator must be between 4 and 6 oz. (7-11 inches of water column). Any lower pressure and the unit will starve for fuel under load. Any higher and the unit will ‘flood’ when attempting to start.

There is some very important LP tank sizing requirements in the owner's manual which needs to be reviewed.

Owner's Manual
Hide Response -
I'm needing a home back up generator that I can also use for hunting camp. Can either the 5500 watt or the 8000 watt model be run of off 100lb and 20lb tanks? What is the LP consumption of both at half and full load?
Jason Hyrczyk
from Wisconsin
March 07, 2011
Read Response +
Answer
These units "cannot" be used with a 5 gallon (20#) propane tank.

Here are the tank requirements from the owner's manual which are based on temperature (Found on Page 7)...Owner's Manual Link Below....

Owner's Manual

Winco only lists the fuel consumption at full load. Please see link below to review the spec sheet which covers all their Tri-Fuel models.

Spec Sheet
Hide Response -
