Hover to zoom
1 Of 5

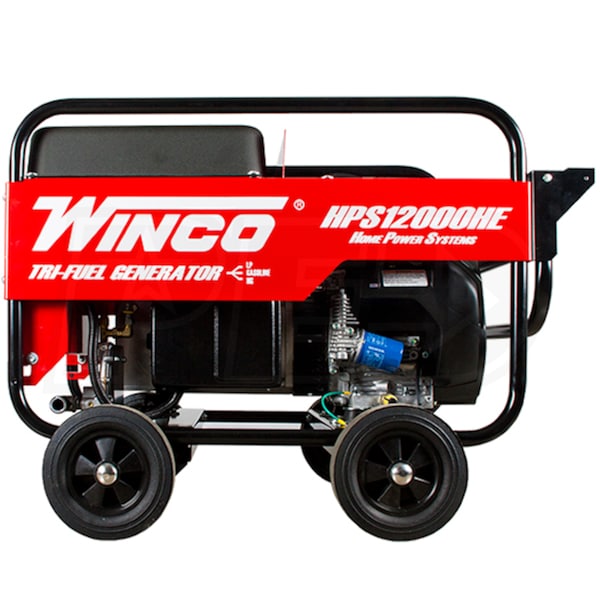

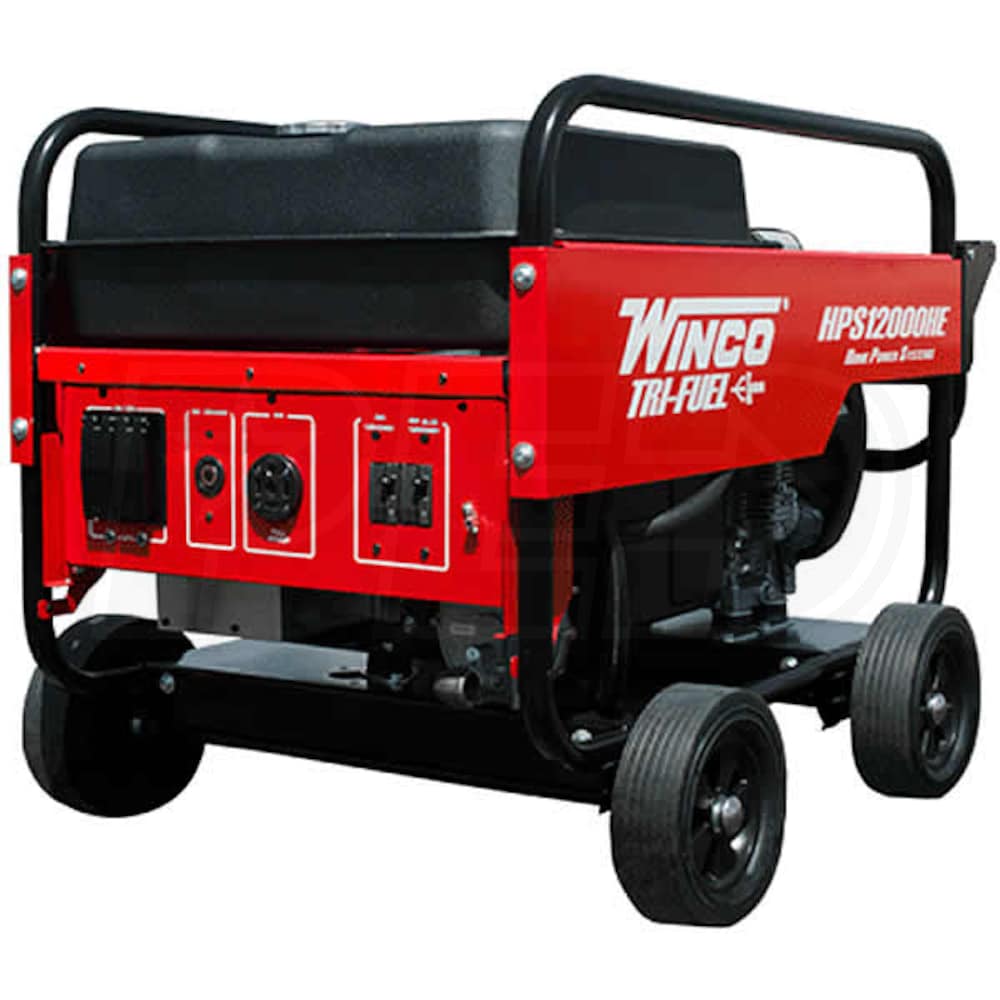

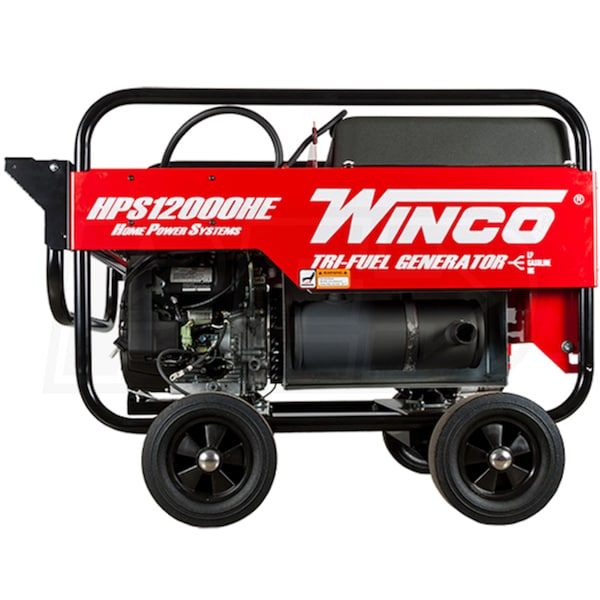

Winco HPS12000HE - 10,800 Watt Tri-Fuel Generator w/ Electric Start Honda Engine (49-State)
Model:
16612-003
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Emergency
Style
Portable
Run Watts
10,800 Rated Watts
Surge Watts
12,000
Starting Watts
Fuel
LP/Natural Gas/Gasoline
Engine
Honda GX
- Winco HPS12000HE Electric Start Tri-Fuel Portable Generator
- Ideal for providing emergency home backup power
- **Please Note - Derate Output By 10% For LP & 20% For NG**
- See spec sheet for details
- Electric Start - Just Turn The Key
- Includes battery rack and cables
- Battery requirements BCI group U1 rated at 300 CCA

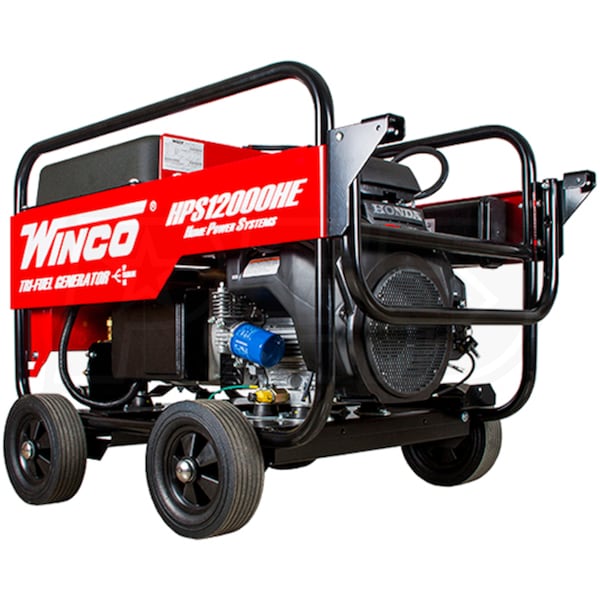

- 688cc Honda GX630 OHV V-Twin 4-Cycle Engine
- High quality, industrial grade engine
- OHV design for increased efficiency and optimal power transfer
- Honda Oil Alert® Warning System
- Shuts the engine down if oil reaches an unsafe operating level
- Prevents engine damage from overheating due to lack of oil
- Tri-Fuel Carburetor and Gas Regulator
- Versatile generator runs on L.P gas, natural gas or gasoline
- Mecc Alte S20F Brushless Alternator
- 100% copper windings, NEMA Class F insulation
- Capacitor Regulated Voltage - < 5% Total Harmonic Distortion (THD)
- Inherent voltage regulation protects electronics from surges
- 15-Gallon Steel Fuel Tank w/ Fuel Gauge
- EPA approved design eliminates carbon emissions

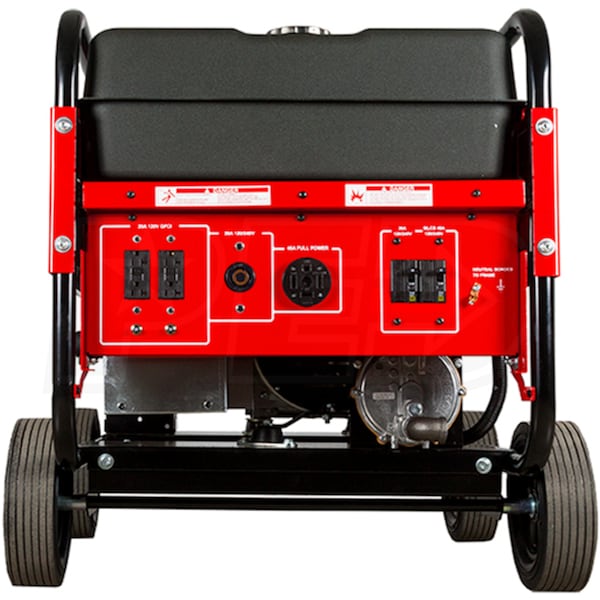

- 120/240V 30-Amp (L14-30) & 60-Amp (14-60) Receptacles
- Allows for connection to a manual transfer switch (MTS)
- 45-Amp Main-Line Circuit Breaker
- Provides superior overload protection
- Wrap-Around 1" Tubular Steel (14-Gauge) Cradle
- Powder-coat paint protects finish from damage and debris
- Four-Wheel Flat Free Dolly & Folding Handle Kit
- Makes this generator easy to move
- 100% Load Tested
- All generators are tested prior to leaving the factory
- 2-Year (Generator) / 3-Year (Engine) Residential Warranty
- NOTICE* - Tri-Fuel Starting On Vapor Fuel (LP or NG)
- Use of the choke will prevent air and fuel from properly mixing
- Must be started using the electric start system provided
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
16612-003
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
435 Pounds
CA (CARB) Compliant
No
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
39.5 Inches
Product Width
26 Inches
Product Height
26 Inches
Additional Model Numbers
HPS12000HE, 16612-003
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
10800 Watts
Surge Watts
12000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Fuel Consumption @ 100% Load
200 ft³/hr
LP Fuel Consumption @ 50% Load
2.2 gallons/hr
Rated Amps
45 Amps
Portability Kit
Never Flat Wheels
Tank Size
15 Gallons
Run Time @ 50% Load
14.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Emergency
CO Sensing
No
Low THD
Yes
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
NEMA 14-60R
1
Reviews
(40)
Winco 16612-003 Reviews & Ratings
Product Q&A
(12)
Product Questions
Answered by Jared, the Generator Expert
What natural gas pressure is required to run the unit?
Do you offer a hose line kit if the generator is operating on NG?
Mike B.
from New York
August 26, 2018
How many BTU's is this generator?
Dr. Peter
from Florida
June 18, 2018
How many Amps will this generator output on the largest plug? I have seen pictures of this unit with the largest being a 45 Amp plug and others with a 60 Amp plug. Considering there is not a 60Amp breaker, I am wondering if the 60 Amp plug is actually delivering 60 Amps. Thanks
Blayne
from Maryland
June 24, 2016
Does it have an idle down switch?
Marty Holmen
from North Dakota
January 22, 2014
Wanting to use this on a Food Truck. Would I be able to plumb it to my propane tank? It would be a 100lb tank. I could install 2 if needed. There will also be other pieces of equipment connected to the propane tanks.
Brady
from Oklahoma
March 25, 2013
I have 500 gallon LP tank, can I hook this unit to the vapor side of tank? The tank is always at least half full & our temperature range is 0-118 deg f.
Roger Graham
from Oklahoma
October 06, 2012
Trying to determine which transfer switch to buy for the Winco HPS 12000HE generator. Our circuit breakers are located in two boxes each rated at 200 amps, but we have more than twice the capacity we need. What used to be a shop is now just a garage/workshop and needs only a light and garage door opener. We have a heat pump, well pump, refrigerator/freezer, freezer, new water heater, and some lights to be used during a black out. I surely don't need 400 amp service then. Do I have to buy a transfer switch for 400 amps just because the capacity of my circuit breakers is that much? Also, do you sell enclosures for this generator?
Rich
from Washington
June 30, 2012
Will this generator (HPS12000HE) deliver full rated power while operating on Propane?
Joseph Smith
from New York
January 21, 2012
What is the LP gas line in pressure required to run this generator.
Joseph Smith
from New York
January 21, 2012
How is a Tri-Fuel generator different from a standard diesel generator?
Conrad Nobleza
from California
February 26, 2011
How many hours use can I expect running the HPS12000HE five hrs per day using LP fuel?
R. L. McDonald
from Colorado
February 19, 2011
How will this generator work with running home computer equipment? Any issues I should be aware of?
Winco HPS-12000HE
Mike Johnson
from Texas
January 26, 2011
