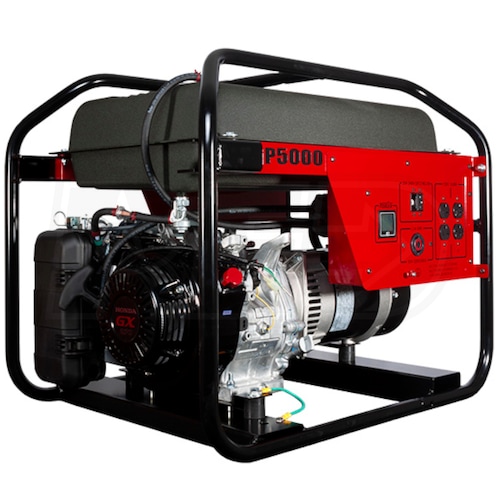

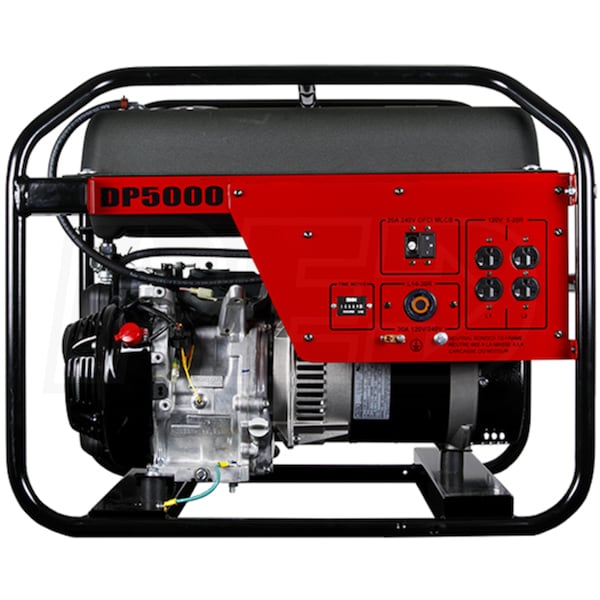

Winco DP5000HR-03/A - Dyna Professional 5000 Watt Portable Generator (CARB)
Model:
29005-006
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Portable
Run Watts
4,560 Rated Watts
Surge Watts
5,000
Starting Watts
Fuel
Gasoline
Engine
Honda GX
- Winco DP5000 DYNA Professional Series Portable Generator
- A great addition to any work crew or master craftsman's garage
- 270cc Honda GX270 OHV 4-Cycle Engine
- OHV design for increased efficiency and optimal power transfer
- Automatic mechanical decompression allows for easier starting
- Low Oil Protection
- Shuts engine down in the event of a low oil event to prevent engine damage
- Capacitor Regulated Voltage - < 5% Total Harmonic Distortion (THD)
- Helps prevent damaging voltage spikes that can harm tools and equipment
- Full Panel GFCI Protection - OSHA Compliant
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kit
- 8-Gallon Steel Fuel Tank w/ Fuel Gauge
- Provides up to 5 hours run time @ 100% load
- EPA approved design eliminates carbon emissions
- 30A L14-30R (120/240V) Receptacle
- Provides the ability to power 30A tools and equipment
- 20-Amp Main-Line Circuit Breaker
- Provides superior overload protection
- Control Panel Mounted Hour Meter
- Easily monitor run time and track maintenance intervals
- Wrap-Around 1" Tubular Steel (14-Gauge) Cradle
- Powder-coat paint protects finish from damage and debris
- Includes lifting-eye for easier generator placement on the job site
- 100% Load Tested
- All generators are tested prior to leaving the factory
- EPA & CARB Compliant
- 3-Year Engine & 3-Year Generator Warranty
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
29005-006
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Weight
156 Pounds
CA (CARB) Compliant
Yes
Certification
CARB, EPA
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
29 Inches
Product Width
21.5 Inches
Product Height
23.6 Inches
Additional Model Numbers
DP5000, 29005-006
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
4560 Watts
Surge Watts
5000 Watts
Fuel Type
Gasoline
Rated Amps
19 Amps
Tank Size
8 Gallons
Fuel Tank Material
Metal
Fuel Gauge
No
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Lifting Eye
Yes
Grade Type
Professional
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
270 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
