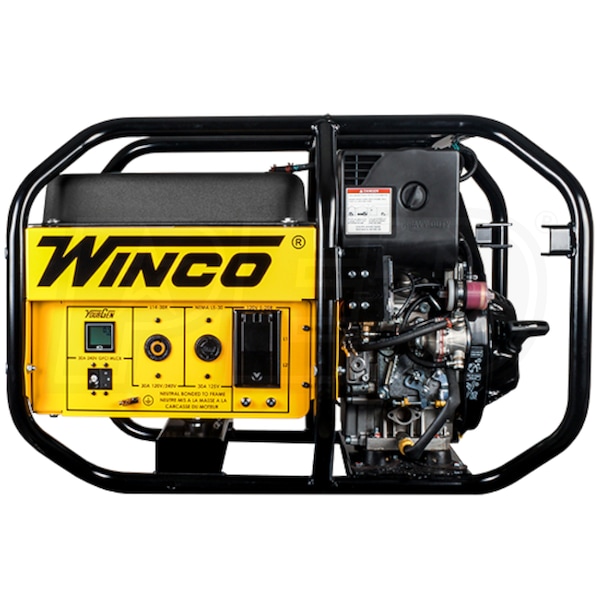

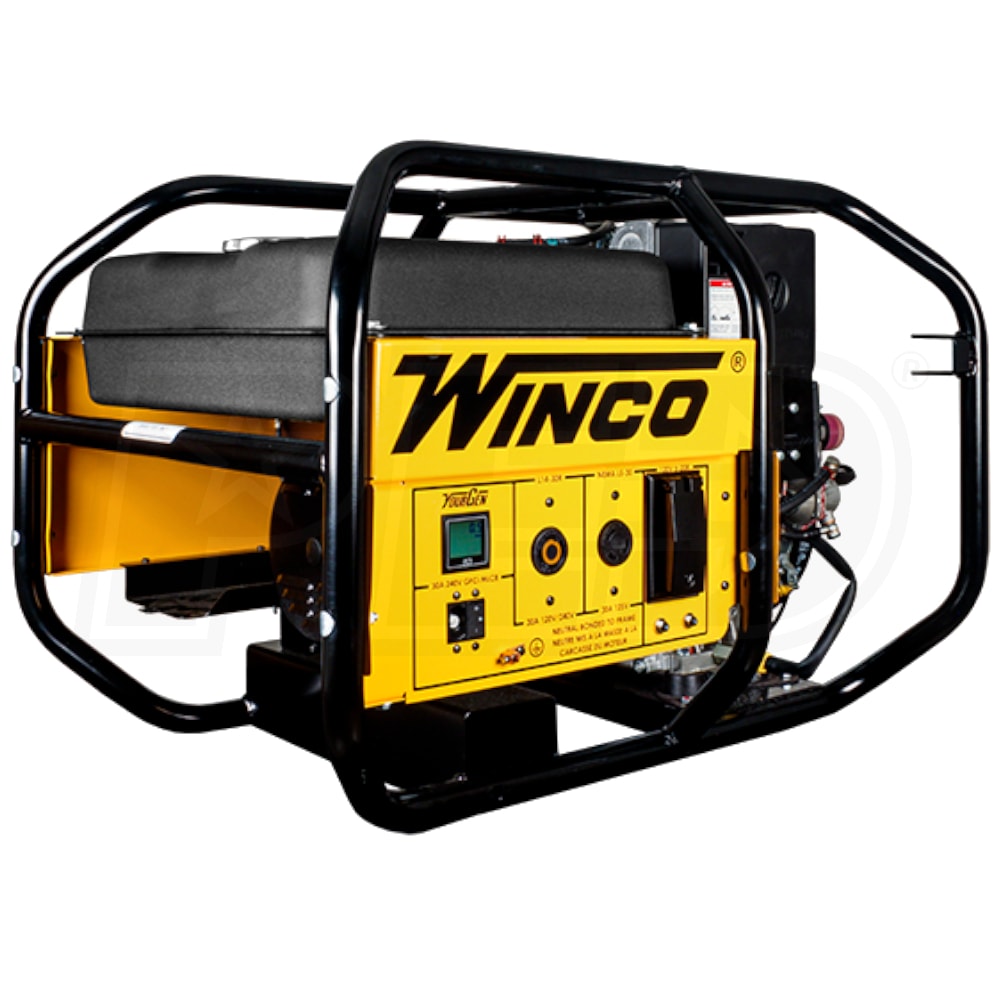

Winco W6010KE-03/B - 5000 Watt Electric Start Portable Industrial Diesel Generator (CARB)
Model:
W6010KE-03/B
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Professional
Style
Portable
Run Watts
5,000 Rated Watts
Surge Watts
6,010
Starting Watts
Fuel
Diesel
Engine
Kohler
- Winco W6010DE Industrial Diesel Generator
- A dependable and durable answer to your power needs
- 440cc Kohler KD440 OHV Diesel Engine
- Full pressure lubrication with full-flow oil filter for maximum engine protection
- Direct injection provides increased power and lower fuel consumption
- Low Oil Protection
- Provides safer operation especially during extended operation
- Electric Start (Battery Not Included) w/ Recoil Backup
- Allows for easier starting on the jobsite
- Full Panel GFCI Protection
- Must use GFI type manual transfer switch for panel connection
- Not for use with interlock kit
- YourGen LED Display
- Displays hours, RPM's, voltage and Hz readings
- Load bars and warnings
- 30-Amp L5-30R (120V) & 30A L14-30R (120/240V) Receptacles
- Provides the ability to power 30A tools and equipment
- Premium Circuit Breakers w/ Visi-Trip Indicators
- Easily see when a tripped circuit occurs
- 7-Gallon Fuel Tank w/ Fuel Gauge
- Long-run design, provides up to 14 hours of run time @ 100% load
- LED Indicator Lights
- Warning indicators for Electric System OK, Low Oil Pressure & Battery Charging circuit
- 1.25" Wrap-Around 14-Gauge Welded Tubular Cradle
- Powder-coat paint protects finish from damage and debris
- 100% Load Tested
- Winco load test's every generator prior to leaving the factory
- 3-Year Engine & 3-Year Generator Warranty
California residents see
Warning: This product can expose you to chemicals including Benzene which is known to the State of California to cause Cancer, and Ethylene glycol (ingested) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
W6010KE-03/B
Overview
Weight
252 Pounds
CA (CARB) Compliant
Yes
Certification
EPA / CARB
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Style
Portable Generator
Product Length
34.25 Inches
Product Width
24.5 Inches
Product Height
34 Inches
Additional Model Numbers
24006-009, W6010KE-03/B
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
5000 Watts
Surge Watts
6010 Watts
Fuel Type
Diesel
Rated Amps
40 Amps
Portability Kit
Sold Separately
Tank Size
7 Gallons
Run Time @ 50% Load
17.9 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
87.6
Idle Control
No
Hour Meter
Yes
Voltage Meter
Yes
Lifting Eye
Yes
Battery
Not Included
Cooling System
Air Cooled
Grade Type
Professional
CO Sensing
No
Low THD
Yes
Engine
Engine Brand
Kohler
Starting System
12-Volt Button Start w/ Recoil
CC
440 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - GFCI
1
NEMA L5-30R
1
NEMA L14-30R
1
