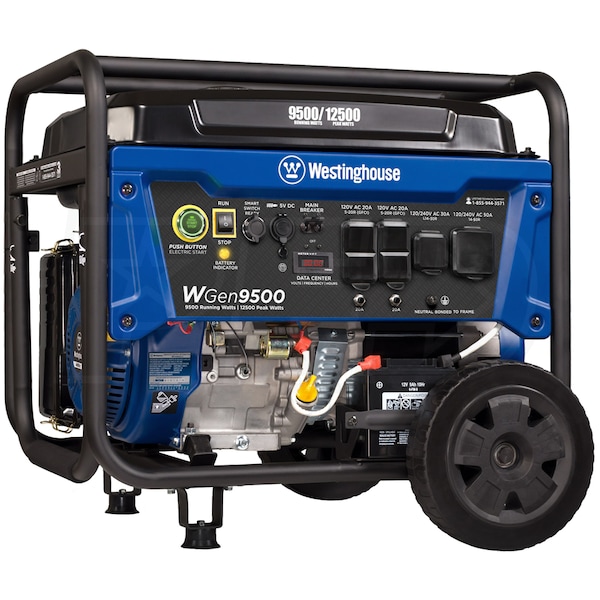

Westinghouse WGen9500 - 9500 Watt Electric Start Portable Generator w/ GFCI Protection & Wireless Remote Start (CARB)
Model: WGEN9500
.jpg)
+
Share This Product
-
Product Description
-
12Reviews
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Run Watts
9,500
Rated Watts
Surge Watts
12,500
Starting Watts
Fuel
Engine
Westinghouse
Grade
Emergency
Style
Portable
Run Watts
9,500
Surge Watts
12,500 Starting Watts
Fuel
Gasoline
Engine
Westinghouse
Features
Features
- Westinghouse WGen9500 Electric Start Gas Powered Generator
- Great for providing emergency backup around the house
- Push Button Electric Start (Battery Included) w/ Wireless Remote
- Allows for quick and easy starting
- 457cc Westinghouse OHV 4-Cycle Engine
- Designed for easier starting and fuel-efficient operation
- Cast Iron sleeve helps extend engine life
- Low Oil Shutdown
- Helps prevent engine damage before it happens
- 6.6-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 12-hours of run time @ 50% load
- Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
- Protects appliances & equipment from harmful voltage swings
- Helps prevent overload to generator
- 120/240V 50-Amp (L14-50R) & 30-Amp (14-30R) Outlets***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- VFT Meter
- Displays Volts, Hz & lifetime hours
- Outlet Covers
- Keeps out moisture and debris when outlets are not being used
- 10" Solid Wheels & Single Fold-Down Handle
- Allows for easy movement over uneven terrain
- Added Extras:
- Oil, funnel, tool kit, and Quick Start Guide
- 3-Year Residential Warranty and Lifetime Technical Support
- EPA / CARB Compliant
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
9500 Watts
Surge Watts
12500 Watts
Fuel Type
Gasoline
Rated Amps
35.5 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.6 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil + Remote
CC
457 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
220 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.2 Inches
Product Width
26.5 Inches
Product Height
26 Inches
UPC
853544008199
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
Grade
Style
Run Watts
9,500
Rated Watts
Surge Watts
12,500
Starting Watts
Fuel
Engine
Westinghouse
Grade
Emergency
Style
Portable
Run Watts
9,500
Surge Watts
12,500 Starting Watts
Fuel
Gasoline
Engine
Westinghouse
Features
Features
- Westinghouse WGen9500 Electric Start Gas Powered Generator
- Great for providing emergency backup around the house
- Push Button Electric Start (Battery Included) w/ Wireless Remote
- Allows for quick and easy starting
- 457cc Westinghouse OHV 4-Cycle Engine
- Designed for easier starting and fuel-efficient operation
- Cast Iron sleeve helps extend engine life
- Low Oil Shutdown
- Helps prevent engine damage before it happens
- 6.6-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 12-hours of run time @ 50% load
- Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
- Protects appliances & equipment from harmful voltage swings
- Helps prevent overload to generator
- 120/240V 50-Amp (L14-50R) & 30-Amp (14-30R) Outlets***
- Allows for connection to a manual transfer switch (MTS)
- Allows for connection to a convenience cord
- VFT Meter
- Displays Volts, Hz & lifetime hours
- Outlet Covers
- Keeps out moisture and debris when outlets are not being used
- 10" Solid Wheels & Single Fold-Down Handle
- Allows for easy movement over uneven terrain
- Added Extras:
- Oil, funnel, tool kit, and Quick Start Guide
- 3-Year Residential Warranty and Lifetime Technical Support
- EPA / CARB Compliant
- ***Note - Allows You To Get Maximum Power From Generator
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
9500 Watts
Surge Watts
12500 Watts
Fuel Type
Gasoline
Rated Amps
35.5 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.6 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil + Remote
CC
457 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
220 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.2 Inches
Product Width
26.5 Inches
Product Height
26 Inches
UPC
853544008199
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
Product Specs
+−
Specifications
Plugs
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
9500 Watts
Surge Watts
12500 Watts
Fuel Type
Gasoline
Rated Amps
35.5 Amps
Portability Kit
Never Flat Wheels
Tank Size
6.6 Gallons
Run Time @ 50% Load
12 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Idle Control
No
Hour Meter
Yes
Voltage Meter
No
Battery
Included
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
12-Volt Button Start w/ Recoil + Remote
CC
457 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
1 Year
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Overview
Weight
220 Pounds
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
27.2 Inches
Product Width
26.5 Inches
Product Height
26 Inches
UPC
853544008199
Plugs
NEMA 5-20R - GFCI
2
NEMA L14-30R
1
NEMA 14-50R
1
