Features
Grade
Emergency
Style
Portable
Run Watts
3,600 Rated Watts
Surge Watts
4,650
Starting Watts
Fuel
Gasoline/LP
Engine
Westinghouse

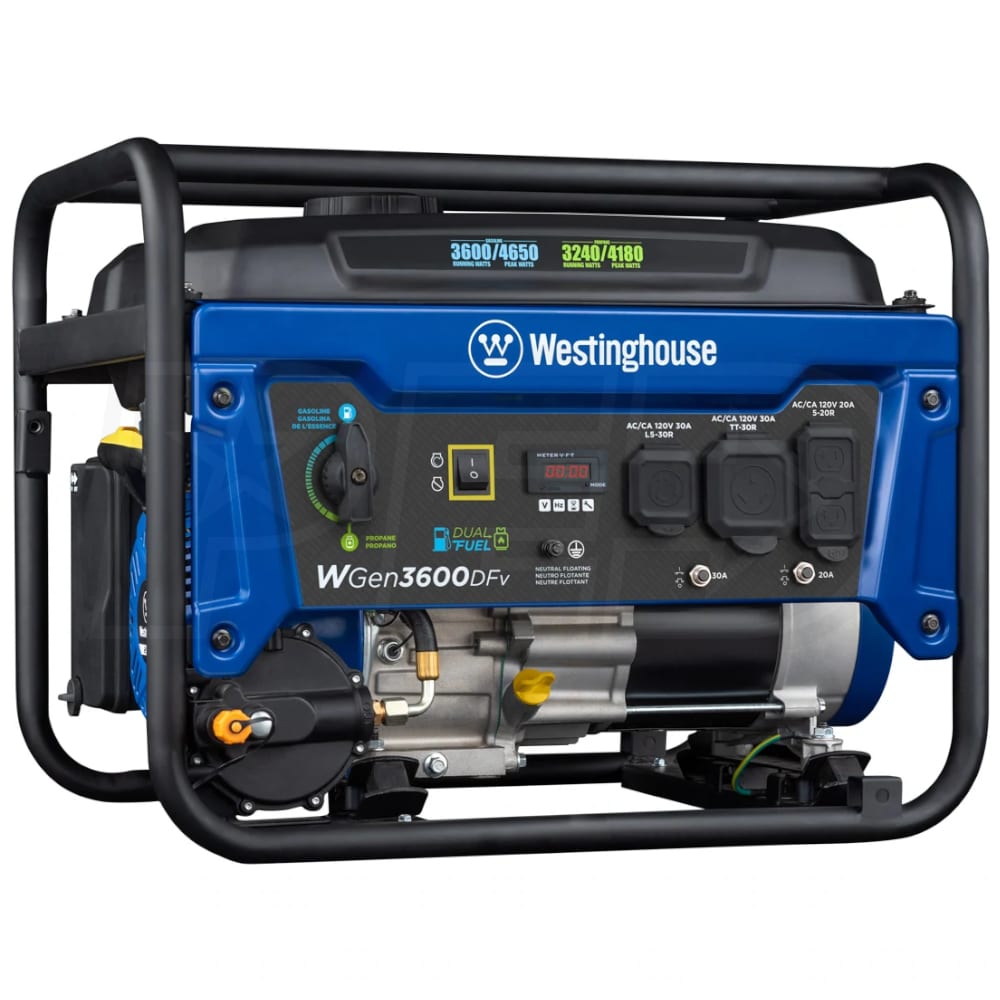

- Westinghouse WGen3600DF Portable Dual-Fuel Generator
- Provides up to 3,600 running watts & up to 4,650 starting watts on gasoline
- Provides up to 3,240 running watts & up to 4,180 starting watts on propane
- 212cc Westinghouse OHV 4-Cycle Engine
- Designed for easier starting and fuel-efficient operation
- Cast Iron sleeve helps extend engine life
- Low Oil Shutdown
- Helps prevent engine damage before it happens
- 4-Gallon Fuel Tank w/ Fuel Gauge
- Provides up to 13.5-hours of run time @ 50% load
- Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
- Protects appliances & equipment from harmful voltage swings
- Helps prevent overload to generator
- RV Ready - TT-30R Outlet
- Power your RV without the need of an extra adapter
- L5-30R 120V Twist-lock Receptacle
- Allows for connection to a manual transfer switch (MTS)
- Outlet Covers
- Keeps out moisture and debris when outlets are not being used
- Added Extras:
- Oil, funnel, tool kit, and Quick Start Guide
- 3-Year Residential Warranty and Lifetime Technical Support
- EPA / CARB Compliant
California residents see
Warning: This product can expose you to chemicals including Ethylbenzene which is known to the State of California to cause Cancer, and Toluene which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
WGEN3600DFV
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
112 Pounds
CA (CARB) Compliant
Yes
Certification
EPA, CARB
Made in USA
No
Consumer Warranty
3 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
23.23 Inches
Product Width
22.8 Inches
Product Height
21.3 Inches
UPC
850011336557
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
3600 Watts
Surge Watts
4650 Watts
Fuel Type
Gasoline/LP
LP Power Capacity
4180 Watts
Rated Amps
30 Amps
Portability Kit
Sold Separately
Tank Size
4 Gallons
Run Time @ 50% Load
13.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Idle Control
No
Hour Meter
No
Voltage Meter
No
Grade Type
Emergency
CO Sensing
No
Low THD
No
Engine
Engine Brand
Westinghouse
Starting System
Recoil Start
CC
212 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
