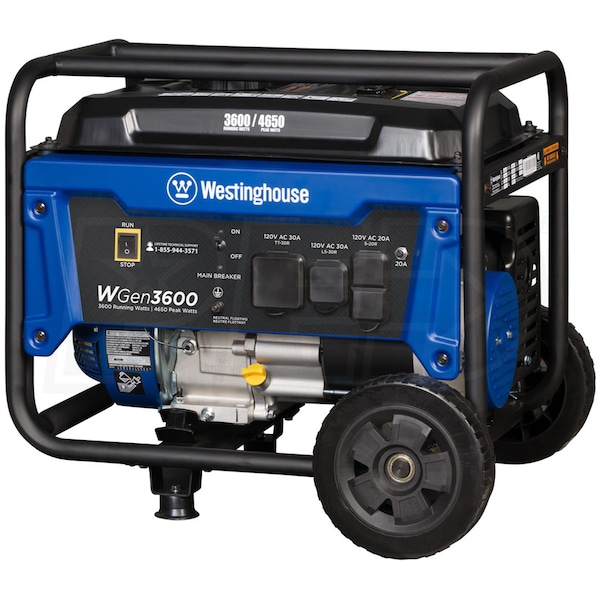

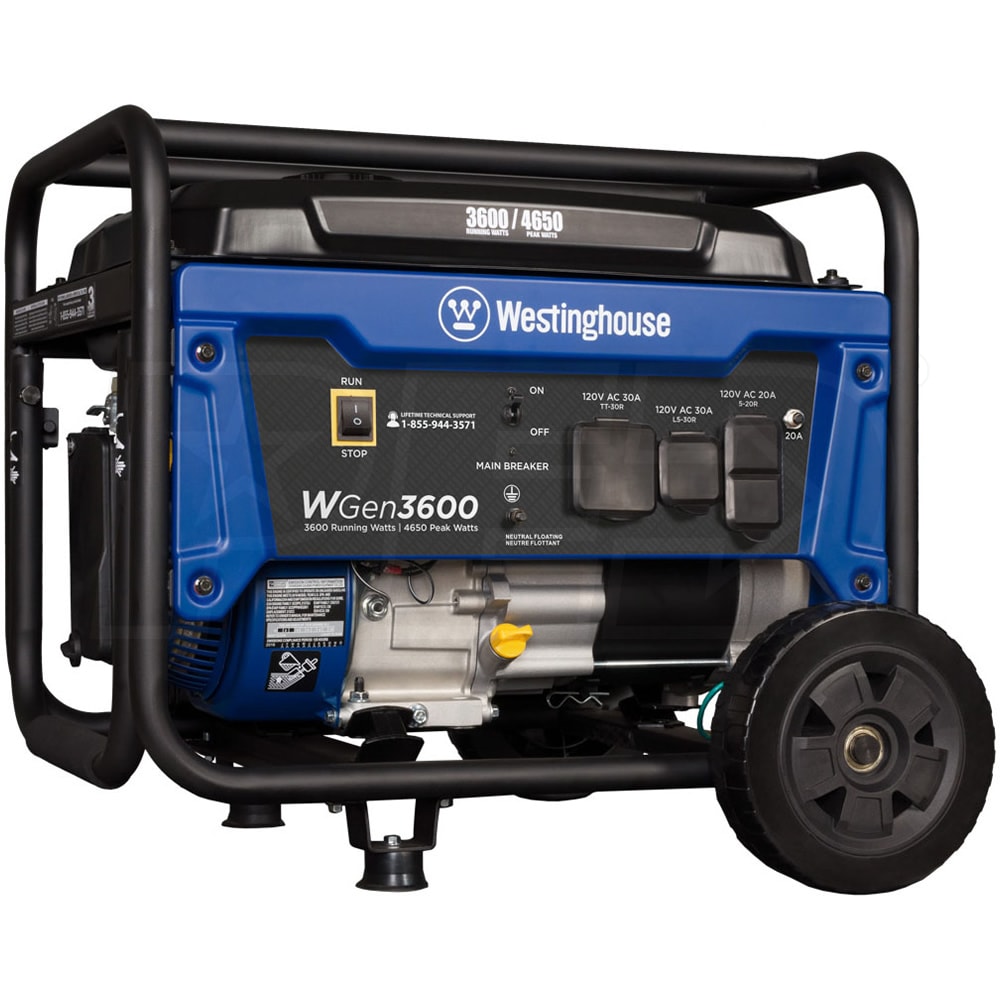

Westinghouse WGen3600 - 3600 Watt Portable Generator w/ RV Outlet (CARB)

Model:

WGEN3600

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Westinghouse WGen3600 - 3600 Watt Portable Generator w/ RV Outlet (CARB)
Westinghouse WGen3600 - 3600 Watt Portable Generator w/ RV Outlet (CARB)
Model: WGEN3600
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Portable

Run Watts

3,600 Rated Watts

Surge Watts

4,650
Starting Watts

Fuel

Gasoline

Engine

Westinghouse



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Westinghouse WGen3600 Portable Gas Powered Generator
  • Ideal for RV's, camping, hunting and powering small appliances
  • 212cc Westinghouse OHV 4-Cycle Engine
  • Designed for easier starting and fuel-efficient operation
  • Cast Iron sleeve helps extend engine life
  • Low Oil Shutdown
  • Helps prevent engine damage before it happens
  • 4-Gallon Fuel Tank w/ Fuel Gauge
  • Provides up to 12-hours of run time @ 50% load
  • Automatic Voltage Regulator (AVR) & Circuit Breaker Protection
  • Protects appliances & equipment from harmful voltage swings
  • Helps prevent overload to generator
  • RV Ready - TT-30R Outlet
  • Power your RV without the need of an extra adapter
  • L5-30R 120V Twist-lock Receptacle
  • Allows for connection to a manual transfer switch (MTS)
  • Outlet Covers
  • Keeps out moisture and debris when outlets are not being used
  • 8" Solid Wheels & Single Fold-Down Handle
  • Allows for easy movement over uneven terrain
  • Added Extras:
  • Oil, funnel, tool kit, and Quick Start Guide
  • 3-Year Residential Warranty and Lifetime Technical Support
  • EPA / CARB Compliant
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 5-20R (Wall-Type)
NEMA L5-30R
RV Ready 30-Amp
WGEN3600
specs product image PID-77624
Overview
Assembly Required
Yes
Weight
112 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
23.23 Inches
Product Width
22.84 Inches
Product Height
21.26 Inches
UPC
855464003964
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Auto Voltage Regulation
Yes
Rated Watts
3600 Watts
Surge Watts
4650 Watts
Fuel Type
Gasoline
Rated Amps
30 Amps
Portability Kit
Never Flat Wheels
Tank Size
4 Gallons
Run Time @ 50% Load
12 Hours
Fuel Gauge
Yes
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
73
Idle Control
No
Hour Meter
No
Voltage Meter
No
Cooling System
Air Cooled
Grade Type
Emergency
Engine
Engine Brand
Westinghouse
Starting System
Recoil Start
CC
212 CC
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
1
NEMA L5-30R
1
RV Ready 30-Amp
1
