Westinghouse 2.2 GPM 1/20 HP Condensate Pump (18' Max Lift)

Model:

WHCP

Write A Review
$65.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Westinghouse 2.2 GPM 1/20 HP Condensate Pump (18' Max Lift)
Westinghouse 2.2 GPM 1/20 HP Condensate Pump (18' Max Lift)
Model: WHCP
$65.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

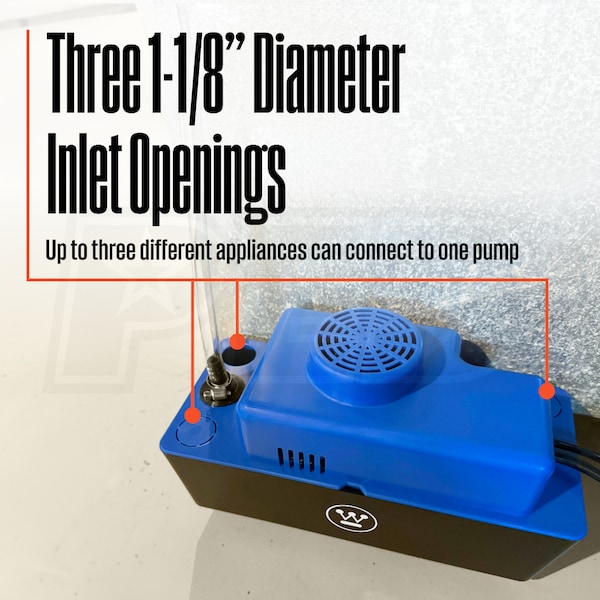

Inlet Size

1-1/8 Inch

Style

Condensation

GPM

2.2 Gallons

  • Westinghouse 1/20 HP Thermoplastic Condensate Pump
  • Pumps up to 132 GPH @ 1'
  • ABS Thermoplastic Construction

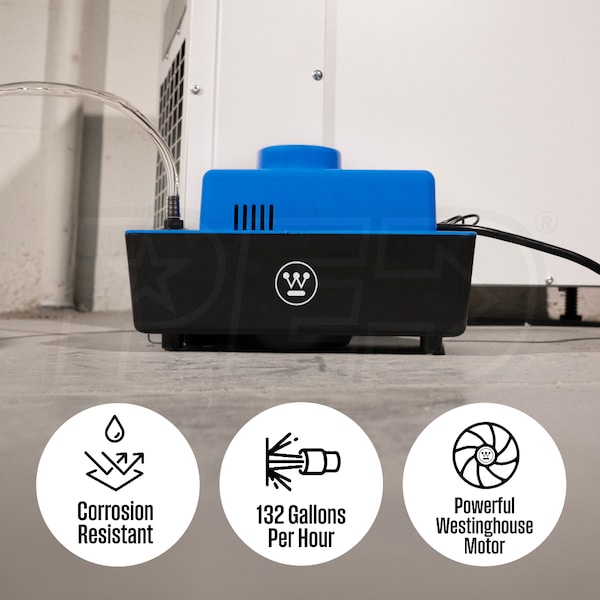

  • Corrosion resistant designed for extended life

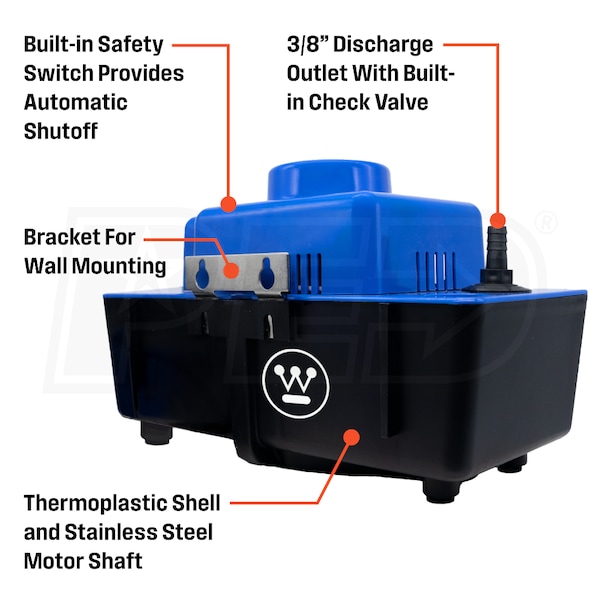

  • Overflow Safety Switch (Built-In Micro Switch and Alarm Switch)

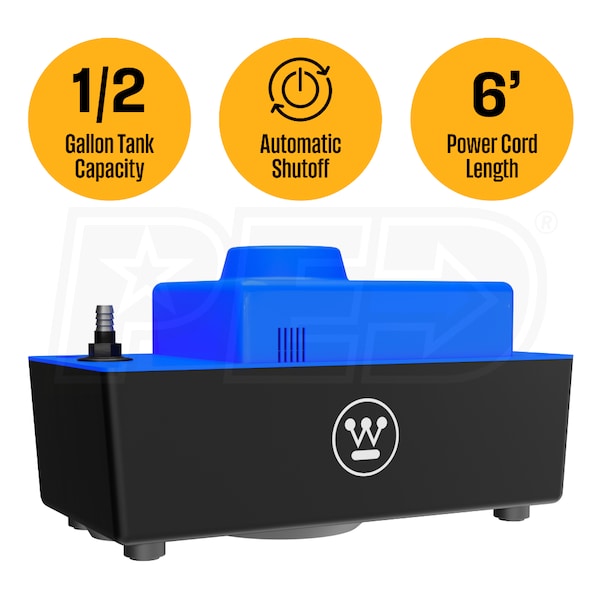

  • Prevents (1/2-Gallon) reservoir from overflowing and causing damage
  • Auto Reset Thermal Overload Protector
  • Helps extend motor life
  • 3/8" Barb Discharge

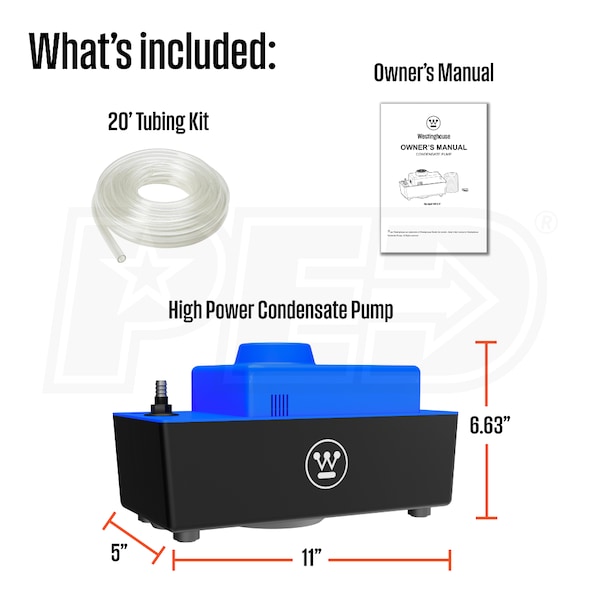

  • Includes 20' of 3/8" ID tubing
  • Compatible With
  • Aprilaire and Santa Fe Dehumidifiers
  • 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

WHCP
specs product image PID-153762
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
1.5
Thermal Protection
Yes
Power Cord Length
6 Feet
Pump
Gallons Per Minute
2.2 Gallons
Inlet Diameter
1-1/8 Inch
Outlet Diameter
3/8 Inch
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
18 Feet

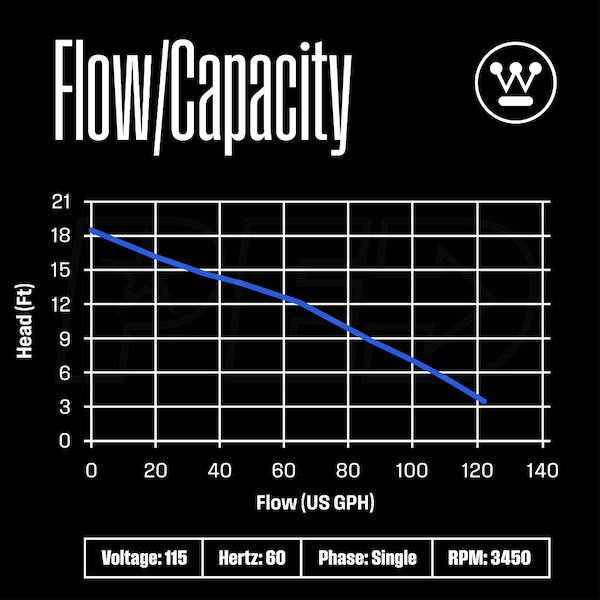

GPH @ 0 feet
132
GPH @ 5 feet
108
GPH @ 10 feet
72
GPH @ 15 feet
24
Submersible
No
Engine
Horsepower
0.05 hp
Overview
Product Category
Water Pump
Weight
5 Pounds
Consumer Warranty
1 Year
Product Length
11 Inches
Product Width
5 Inches
Product Height
6.66 Inches
UPC
860010653609
Accessories
Float Switch
Yes
Hose
Yes
