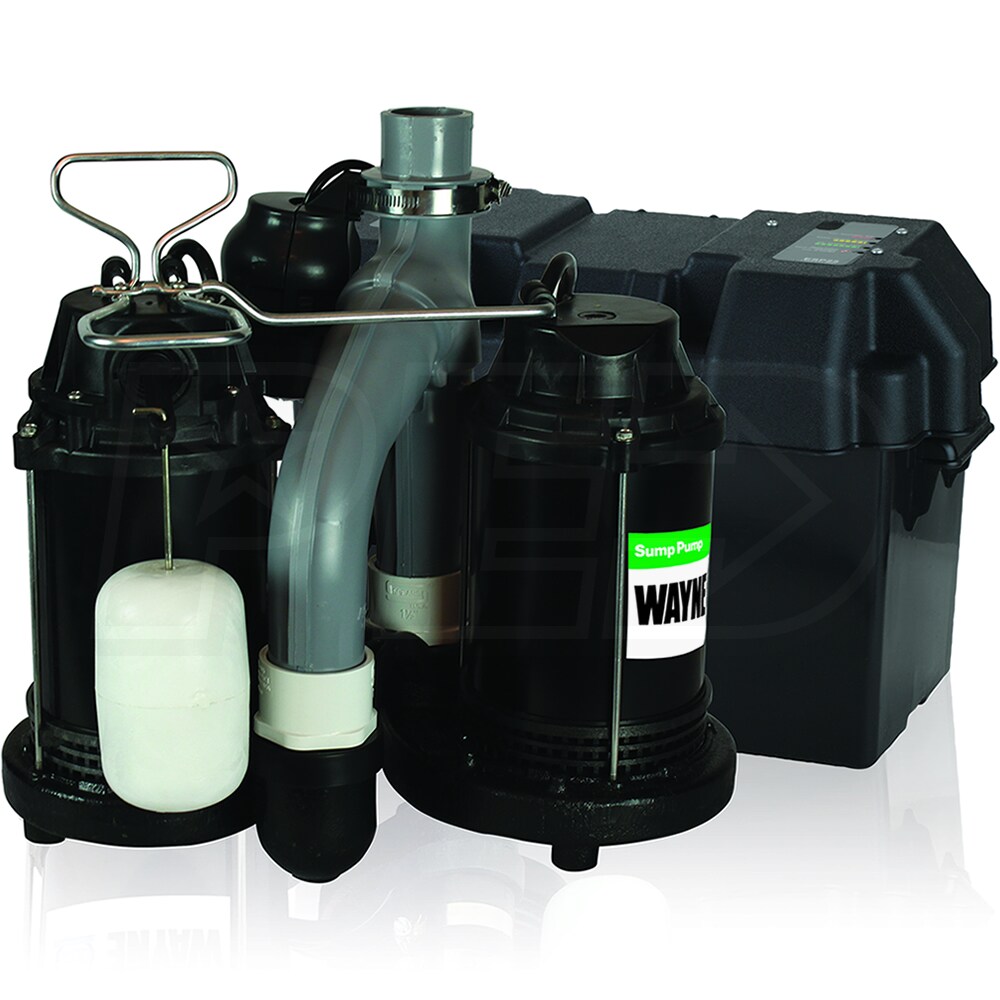

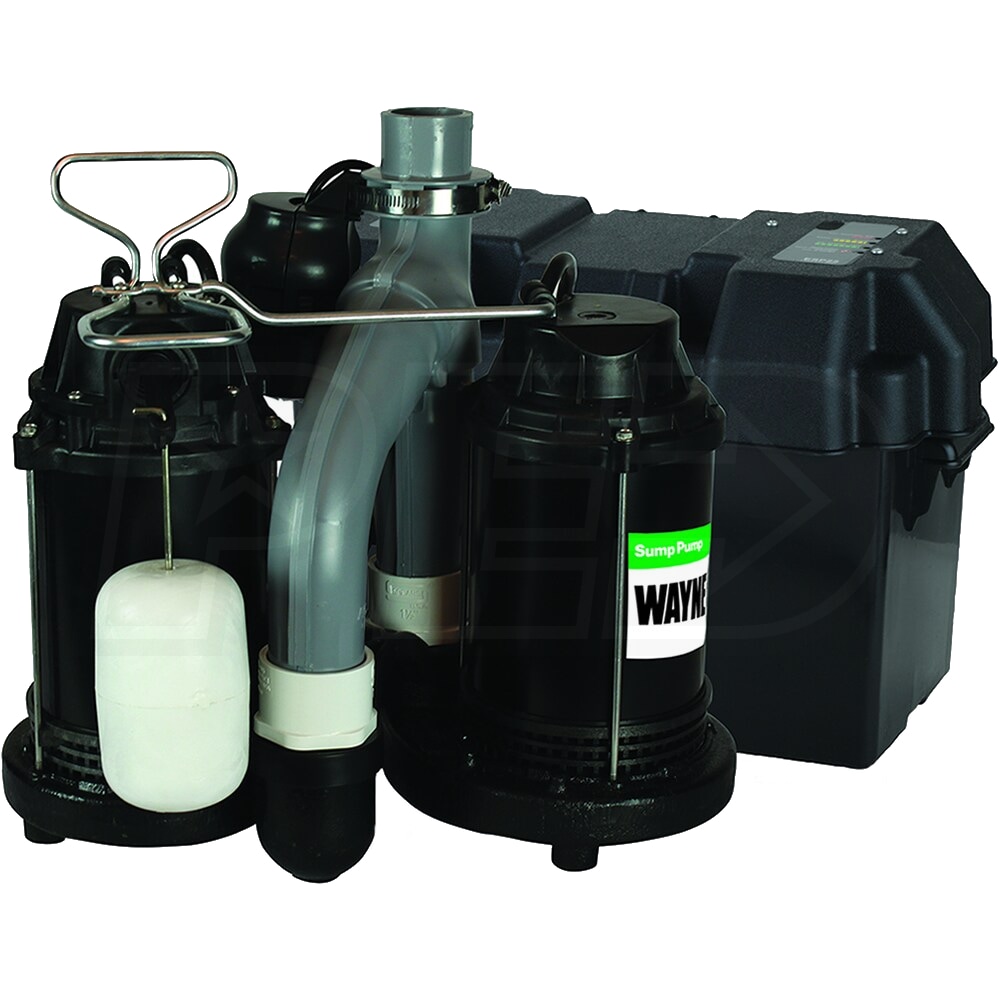

Wayne WSS30Vn - 1/2 HP Combination Primary and Backup Sump Pump System

Model:

WSS30VN

Write a Review
$464.99
Free Shipping
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601

In-Stock Free Shipping$464.99Buy Now
In-Stock Free Shipping$464.99Visit Site
Wayne WSS30Vn - 1/2 HP Combination Primary and Backup Sump Pump System
Wayne WSS30Vn - 1/2 HP Combination Primary and Backup Sump Pump System
Model: WSS30VN
$464.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Combo

GPH

5100 Gallons

Switch Type

Vertical

  • Wayne WSS30V 1/2 HP Combination Primary & Backup Sump Pump System
  • Assembled in the US with foreign and domestic parts
  • The Hardest Working Pumps, You'll Never Hear™
  • Energy efficient motors & engineered design provide an ultra quiet experience
  • Pre-Assembled and Pre-Plumbed Design For Easier Installation
  • Simple, drop-in installation; Includes new propritary diverter valve for even easier installation
  • Epoxy-Coated Steel & Cast Iron Construction (CDU800 - Primary Pump) W/ 8 foot Power Cord
  • Rugged, corrosion-resistant design provides long life in sump applications
  • 1/2 HP, Thermally Protected 120V PCS Motor
  • Energy efficient, oil-filled design, for quiet operation and extend motor life
  • Integrated, Guard-Protected Vertical Float Switch w/ Solid Polypropylene Float
  • Prevents switch hang-ups from debris for reliable automatic operation
  • Tested to 1 million cycles*; For performance that lasts (Primary Pump)
  • Unique Top Suction Design w/ Glass Reinforced Polycarbonate Impeller
  • Reduces clogging & prevents air lock occurrences without the need for a "weep hole"
  • Upper/Lower Ball Bearings, Premium John Crane Carbon/Ceramic Shaft Seals
  • Sealed oil-bath engineering for increased lifespan and virtually silent operation
  • High-quality components helps prevent leaks and galvanic corrosion
  • Epoxy steel body and cast-iron base. (ESP25) w/ 6' Cord
  • Helps extend pump life in harsh sump basin conditions
  • Pumps 2900 gallons-per-hour @ 0' lift (or 1680 GPH @ 10')
  • Adjustable Reed Float Switch
  • Easily mounts at high water level in your sump basin
  • Automatically starts when your existing sump pump fails
  • Audible Alarm For Local Notification
  • Alarms sounds when high water even occurs and pump is running
  • 12V Battery Charger w/ LED Indicator Light & Thermoplastic Battery Box
  • Smart charging technology for maximum battery efficiency
  • Provides real-time battery charge status
  • Requires (1) 12V Deep Cycle Battery (SOLD SEPARATELY)
  • Recommended for use with the WAYNE WSB1275, 75 AMP hr maintenance free battery
  • Battery Box (13" x 7" x 9") - Fits A Maximum Group 27 Size battery
  • *WAYNE Water Pumps Exceed an Average 1 Million Test Cycles (Primary Pump)
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

WSS30VN
specs product image PID-7283
Base
Min Sump Basin Size
16 Inch
Motor
Voltage
120 Volt
Running Amps
10
Battery Included
No
Thermal Protection
Yes
Power Cord Length
8 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
5100
GPH @ 5 feet
4500
GPH @ 10 feet
3840
GPH @ 15 feet
3060
GPH @ 20 feet
2040
Backup GPH @ 0 feet
2900
Discharge Port Size
1-1/2 Inch
Built-in check Valve
Yes
Float On
9 Inches
Float Off
4 Inches
Manual Override
No
Backup GPH @ 5 feet
2340
Backup GPH @ 10 feet
1680
Backup GPH @ 15 feet
600
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Weight
35 Pounds
Consumer Warranty
3 Years
UPC
040066218506
Additional Model Numbers

WSS30V, WSS30VN

Reviews

(186)
Wayne WSS30VN Reviews & Ratings

Product Q&A

(15)
Product Questions Answered by Jim, the Sump Pump Expert
What is the minimum size basin that is needed for this pump? What are the dimensions of both pumps combined?
Zack
from Michigan
October 16, 2018
Is it possible to get a 3/4 horsepower sump pump and a combination battery backup pump?
Paul
from Illinois
April 18, 2018
Hi Jim. If I'm out of town and we have two storms a day apart, will the battery automatically recharge to be ready for the 2nd storm? Meaning I don't have to be present to manually intervene?
Lou P.
from Illinois
March 29, 2017
Is there a notification when the battery or pump fail, or the battery doesn't have enough of a charge?
Tom
from Wisconsin
March 21, 2017
What are the dimensions of the battery box?
Mike H.
from Ohio
March 08, 2017
Does the backup pump require a weep hole? Also, will this unit cycles frequently in bad weather, and should I install a rubber boot?
Howard O.
from Indiana
February 26, 2017
What size battery is required. Does charger shut off when battery is fully charged (does it have overcharge protection)? Where is the main pump suction port? What activates the back up pump? What is the horsepower of the backup pump. If the main pump fails can it be replaced by any pump?
Darrel F
from Illinois
August 16, 2016
If either pump should ever fail, can they be replaced in the unit? Or does the whole unit needed to be replaced?
Chris M
from New York
January 05, 2016
Jim. I have a 11 inch basin size. I am interested in a combination primary and back up sump system. What do you recommend. Price is not an issue. I am interested in Zoeller, Liberty, or Wayne or whatever you recommend. I dont think I can jackhammer out the basin if I had to, although I would love to.
Vito Ranieri
from Pennsylvania
June 21, 2015
How does the system determines that the primary pump is not keeping up? By water level? running time of the primary? Also, if the primary fails/breaks does the backup kicks in? Thanks
Edgardo
from Pennsylvania
May 17, 2014
Hi, could you tell me what the diameter and depth of the sump basin needs to be for the Wayne WSS30V - 1/2 HP Combination Primary and Backup Sump Pump System? Thanks.
Erica
from New York
February 26, 2014
Which is better, a battery back-up system or a water back-up system?
Linda L
from Kentucky
February 06, 2014
If the 120 v pump can't keep up it sounds as if the battery backup pump will kick in---but the units share a common pipe so how can you add water /flow to an already maxed out pipe?? Would this not just increase head pressure on the battery pump causing it to work even harder????
Mark F
from Wisconsin
April 10, 2013
I'm looking to purchase the Wayne WSS30V Combo. The specs say there is a check valve in the unit. Can I still use the Watchdog Klunkless Check Valve as well?
Tim L
from Wisconsin
July 30, 2012
Is this Wayne WSS30V - 1/2 HP Combination Primary and Backup Sump Pump System an AC/DC system or a DC system? Also please let me know if I have this straight. An AC/DC system means that the backup pump can be called into use if the main system is overloaded. In a DC system the backup pump only gets called into service if there is a power failure on the first.
Bryce Brunswig
from Nebraska
April 29, 2012
