Features
Inlet Size
2 Inch
Style
Sprinkler
GPM
70 Gallons

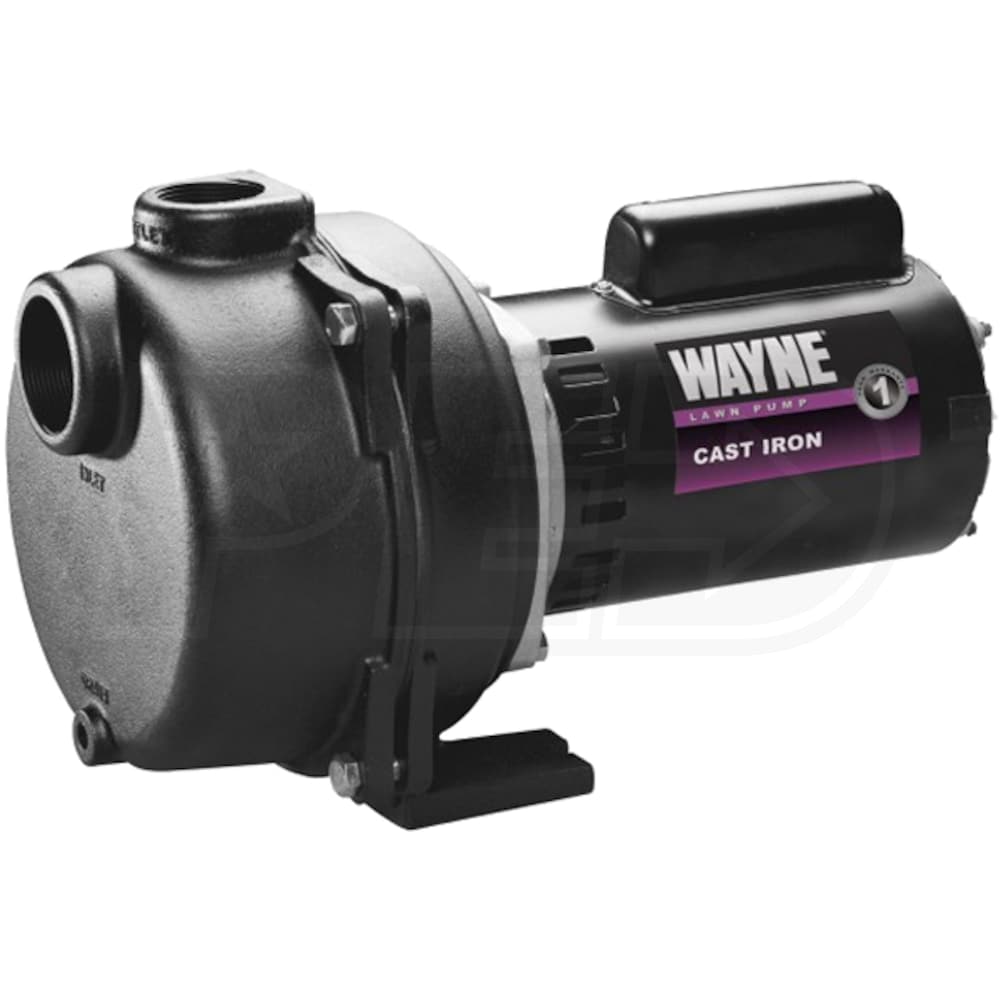

- Wayne Permanent Installation Lawn Sprinkling Pump

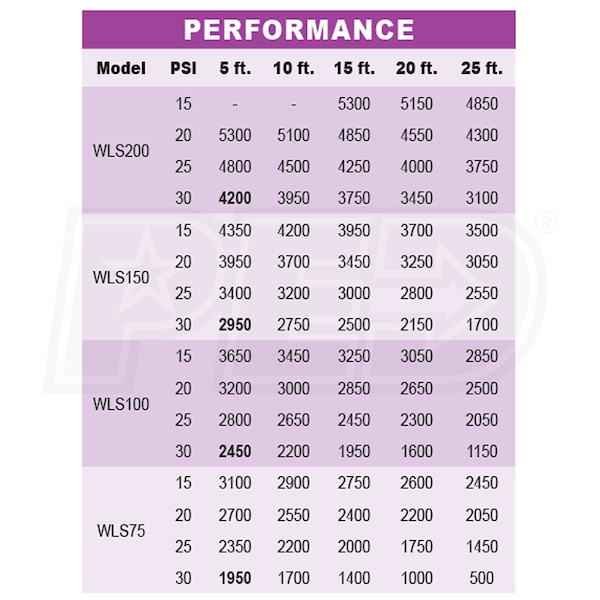

- Pumps up to 4200 GPH @ 5' (30 PSI)
- 2-HP Heavy-Duty Square-Flange 230V Motor (3450 RPM)
- Thermally protected and energy efficient; Uses only 11.5A
- Heavy-Duty Cast Iron Housing & Bracket Construction
- Designed for years of service and reliability
- Glass-Reinforced Thermoplastic Impeller & Diffuser
- Designed for maximum durability and performance
- Stainless Steel Motor Shaft & Carbon/Ceramic Shaft Seal
- Provides smooth, quiet, continuous duty operation
- Up to 25' Suction Head & Max Discharge of 35-55 PSI
- Operates underground sprinkling systems (10-15 Heads @ 100'
- Draw water from wells, lakes or ponds for watering
- Self-Priming Design
- After initial fill, no additional priming required
- Built-In Drain Plug
- Makes it easy to drain the pump before storage
- 2" NPT Suction & 1-1/2" NPT Discharge
- Easily connect to current irrigation system
- 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
WLS200
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
11.5
Pump
Gallons Per Minute
70 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
1-1/2 Inch
Self Priming
Yes
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
55
Submersible
No
Engine
Continuous Operation
Yes
Shaft Seal
Ceramic Carbon
Horsepower
2 hp
Overview
Product Category
Water Pump
Weight
60 Pounds
Consumer Warranty
1 Year
Product Length
20.00 Inches
Product Width
10.00 Inches
Product Height
10.00 Inches
UPC
040066204851
