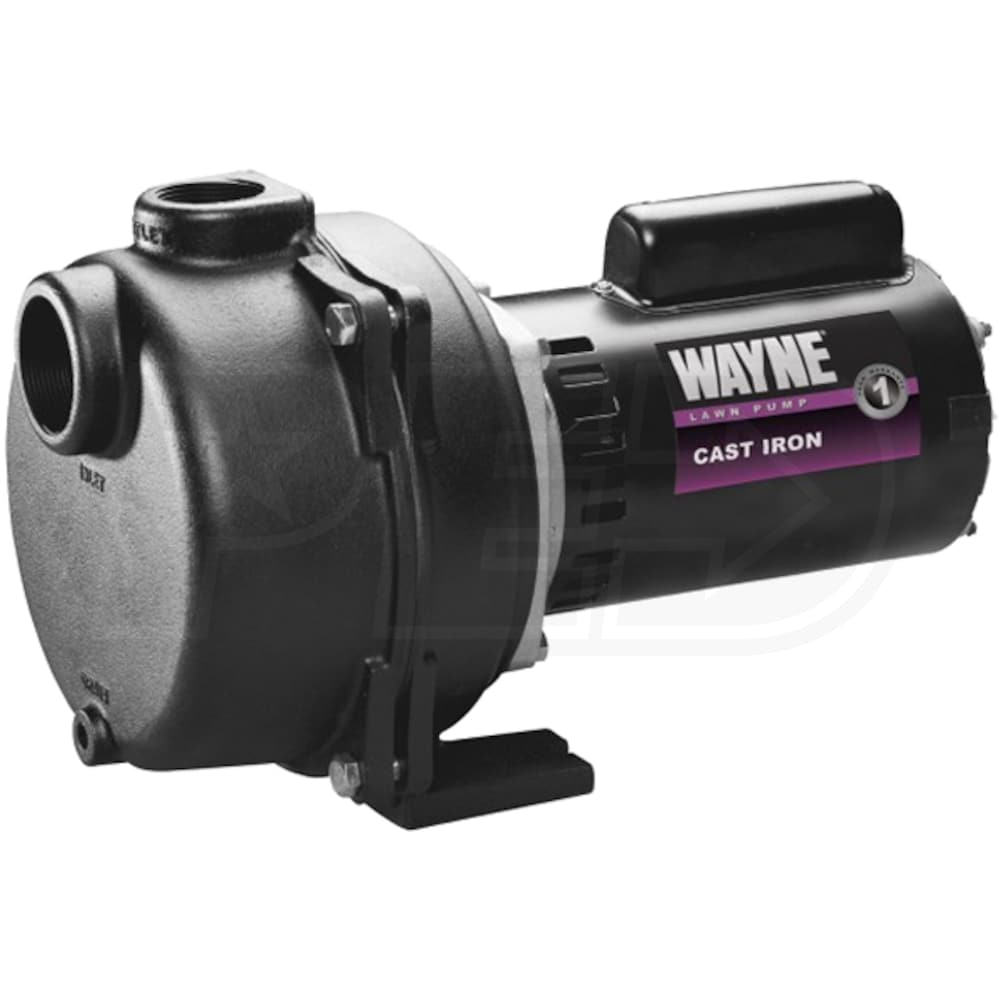

Wayne WLS150 - 49.1 GPM 1-1/2 HP Cast Iron Lawn Sprinkler Pump
Wayne WLS150 - 49.1 GPM 1-1/2 HP Cast Iron Lawn Sprinkler Pump
+
Share This Product
-
Product Description
-
11Reviews
-
1Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
2"
Style
GPM
49.16
Gallons
Inlet Size
2"
Style
Sprinkler
GPM
49.16 Gallons
Features
Features
- 1-1/2 HP Lawn Sprinkling Pump

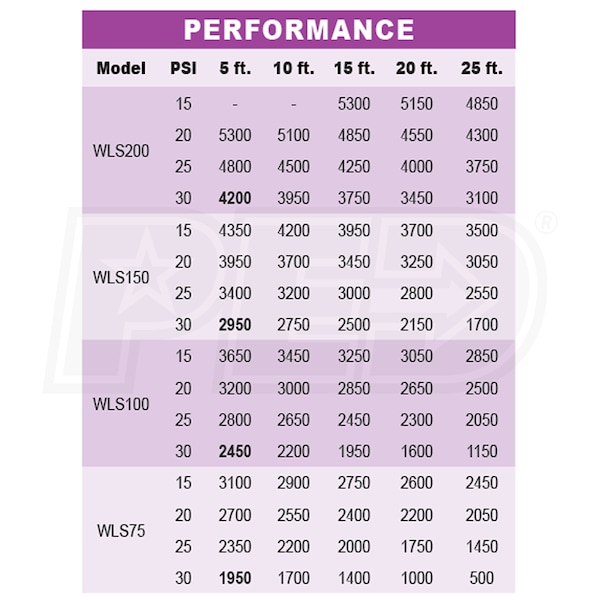

- Pumps up to 2950 GPH @ 5' (30 PSI)
- Durable Cast Iron Volute
- Built for years of reliable service
- High Efficiency Dual Voltage Motor (120/240V)
- Factory wired for 240V installation
- Easily change to 120V to suit your application
- Operates An Underground Sprinkling System
- Uses a high volume of water at low pressure
- 2" NPT Suction with 1-1/2" NPT Discharge
- 1-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
49.16 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
40
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
1.5 hp
Overview
Weight
60 Pounds
Consumer Warranty
1 Year
Product Length
20.00 Inches
Product Width
10.00 Inches
Product Height
10.00 Inches
UPC
040066204844
Inlet Size
2"
Style
GPM
49.16
Gallons
Inlet Size
2"
Style
Sprinkler
GPM
49.16 Gallons
Features
Features
- 1-1/2 HP Lawn Sprinkling Pump
- Pumps up to 2950 GPH @ 5' (30 PSI)
- Durable Cast Iron Volute
- Built for years of reliable service
- High Efficiency Dual Voltage Motor (120/240V)
- Factory wired for 240V installation
- Easily change to 120V to suit your application
- Operates An Underground Sprinkling System
- Uses a high volume of water at low pressure
- 2" NPT Suction with 1-1/2" NPT Discharge
- 1-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
49.16 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
40
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
1.5 hp
Overview
Weight
60 Pounds
Consumer Warranty
1 Year
Product Length
20.00 Inches
Product Width
10.00 Inches
Product Height
10.00 Inches
UPC
040066204844
Product Specs
+−
Specifications
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
49.16 Gallons
Inlet Diameter
2"
Outlet Diameter
1-1/2"
Self Priming
Yes
Pump Housing Drain
Yes
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
40
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
1.5 hp
Overview
Weight
60 Pounds
Consumer Warranty
1 Year
Product Length
20.00 Inches
Product Width
10.00 Inches
Product Height
10.00 Inches
UPC
040066204844
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
Can the RLSP150 be used outside unprotected?
Frank Wilhelm
from Michigan
June 13, 2012
Answer
While any of these sprinkler pumps can be permanantly mounted outdoors, it does need to be protected from the elements and should be covered with some type of housing that also allows for adaquete ventilation.
Per the instruction manual:
Keep motor operating area as dry as possible. Install the pump in a clean, dry, and ventilated location that provides adequate drainage, room for servicing, and protection from freezing temperatures. Bolt down the pump evenly on a good foundation, preferably concrete, to prevent the development of unnecessary stress. Locate the pump as close as possible to the water supply to reduce friction losses in the suction pipe and to provide for maximum capacities. A foot valve
must be used.
Per the instruction manual:
Keep motor operating area as dry as possible. Install the pump in a clean, dry, and ventilated location that provides adequate drainage, room for servicing, and protection from freezing temperatures. Bolt down the pump evenly on a good foundation, preferably concrete, to prevent the development of unnecessary stress. Locate the pump as close as possible to the water supply to reduce friction losses in the suction pipe and to provide for maximum capacities. A foot valve
must be used.
